CyberPower PR5000LCDRTXL5U User Manual

5
VERTICAZL/TOWER INSTALLATION

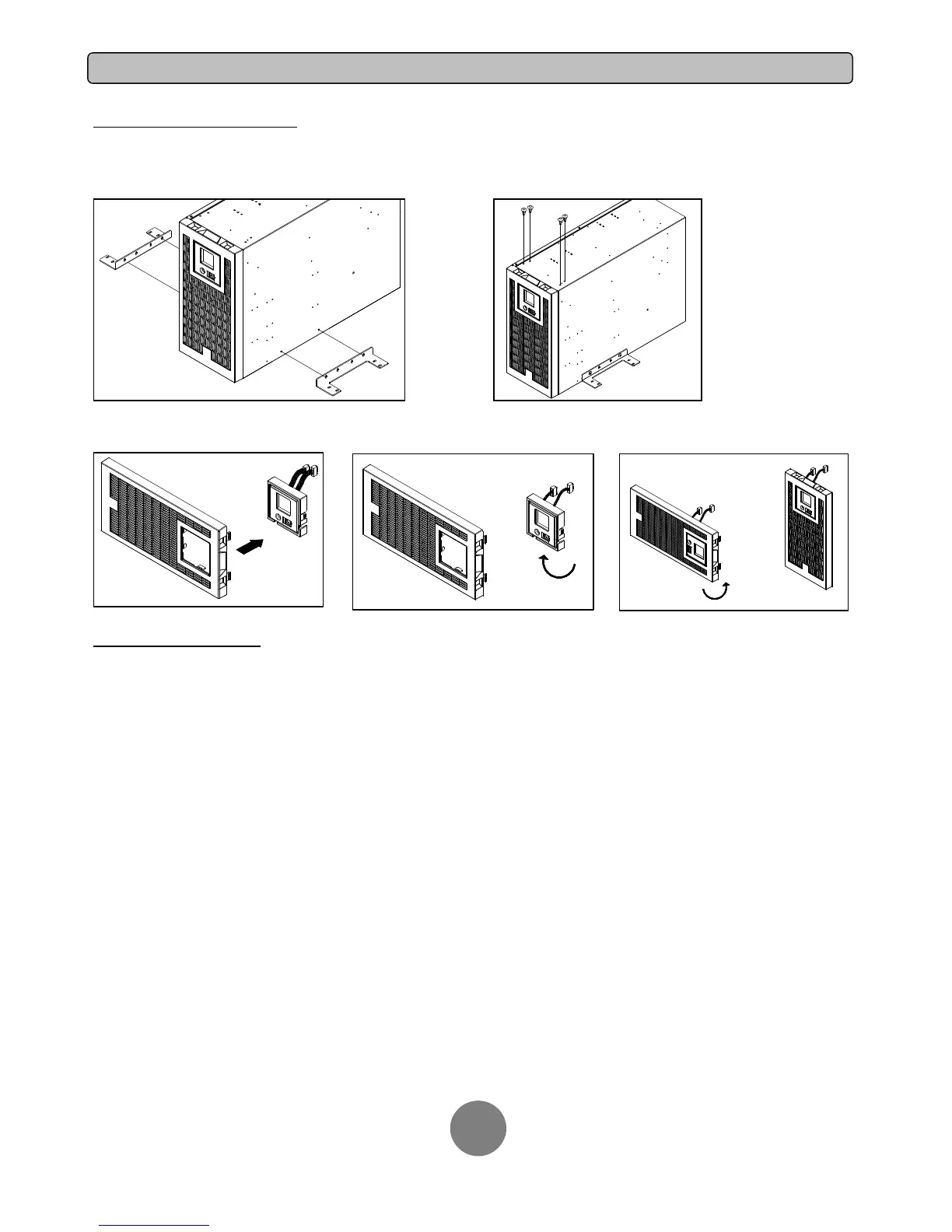

Step 1: Attach the base stands
Simply slide the base stands onto the bottom of the UPS, roughly 8-10”
apart.
Step 2: Attach dust covers
Insert dust covers into the rack mount ear screw holes that are not being
used.
Step 3: Rotate the Multifunction LCD Readout
Separate the front panel and the UPS. Gently lift the LCD out. Rotate it to the preferred orientation. Reinstall the display for a tower configuration.
ELECTRICAL INSTALLATION
After completing the hardware installation of the UPS, you are now ready to plug in the UPS and attach your equipment.
SAFETY PRECAUTIONS
 CAUTION! - Installation environment should be in a temperature and humidity controlled indoor area free of conductive contaminants. Do not install
this UPS where excessive moisture or heat is present (Please see specifications for acceptable temperature and humidity range)
 CAUTION! - Never install a UPS, or associated wiring or equipment,
during a lightning storm.
 CAUTION! - Do not work alone under hazardous conditions.
 CAUTION! - To reduce the risk of electric shock, do not remove the
top cover.
 CAUTION! - The battery can energize hazardous live parts inside
even when the AC input power is disconnected.
HARDWARE INSTALLATION

CyberPower PR5000LCDRTXL5U Specifications

General

Output power	4000 W
UPS topology	Line-Interactive
Surge energy rating	2430 J
Output power capacity	5 kVA
Emergency Power Off (EPO)	Yes
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Form factor	-
Display type	LCD
Certification	FCC, UL 1778, CSA C22.2 No. 107.3-05, ROHS
Product color	Black
Rack capacity	5U
Modem (RJ-11) ports	1
Serial ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Dimensions (WxDxH)	431.8 x 622.3 x 222.25 mm
Management platform	Self Test, Auto-Charge, Auto-Restart
Operating temperature (T-T)	32 - 104 °F
Compatible operating systems	Windows 2000, 2003, XP, Vista, 7
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	100700 g
