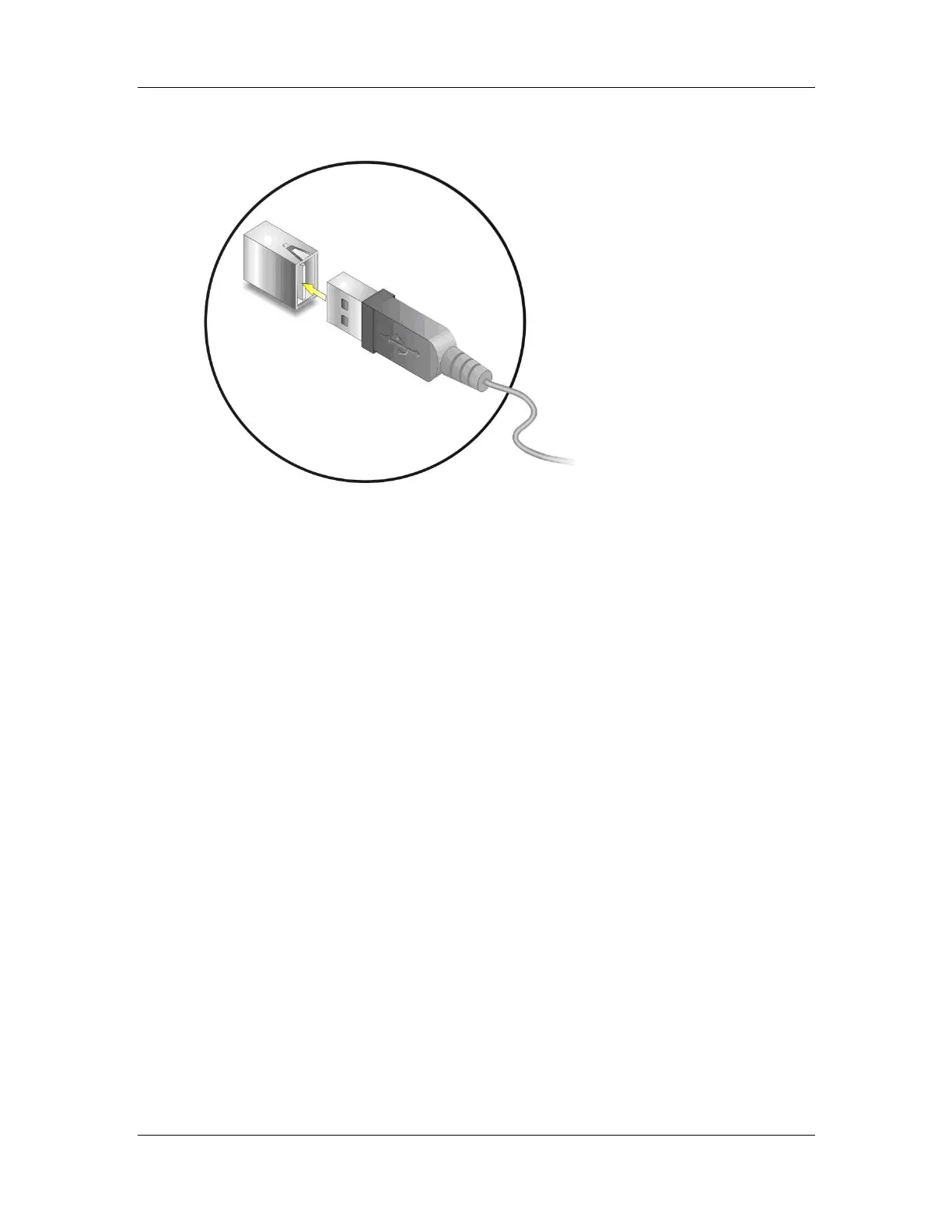

Figure 5-27: USB Connector

5.8.7 VGA Monitor Connection

The MXGE has a single female DB-15 connector on the external peripheral interface

panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor

to the MXGE, please follow the instructions below.

Step 1: Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3: Insert the VGA connector. Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

MXGE. See Figure 5-28.
