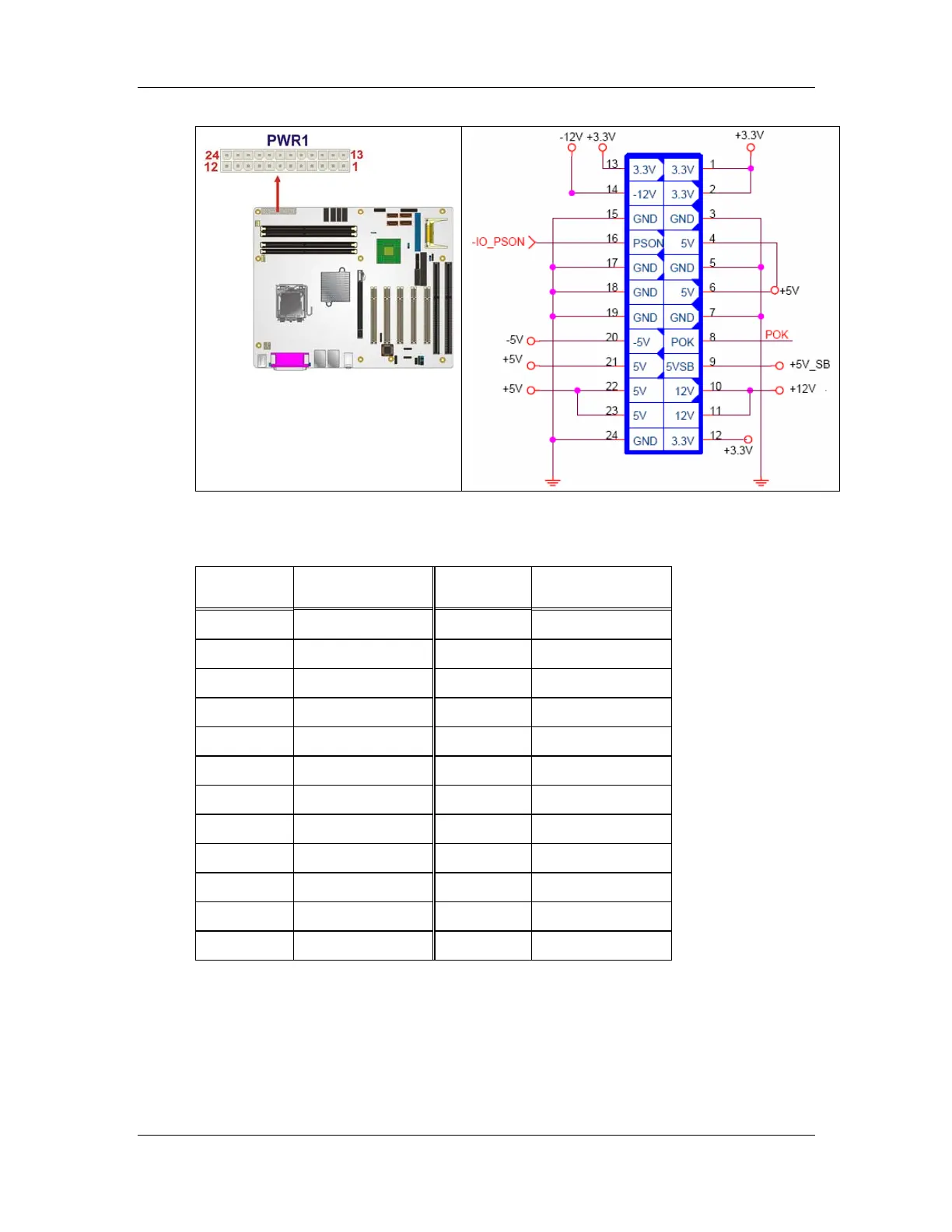

Figure 4-3: ATX Power Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GROUND 15 GROUND
4 +5V 16 PS-ON
5 GROUND 17 GROUND
6 +5V 18 GROUND
7 GROUND 19 GROUND
8 POWER GOOD 20 GND
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
Table 4-4: ATX Power Connector Pinouts
