Cybex 500C Cycle and 500R Recumbent Cycle Owner’s Manual

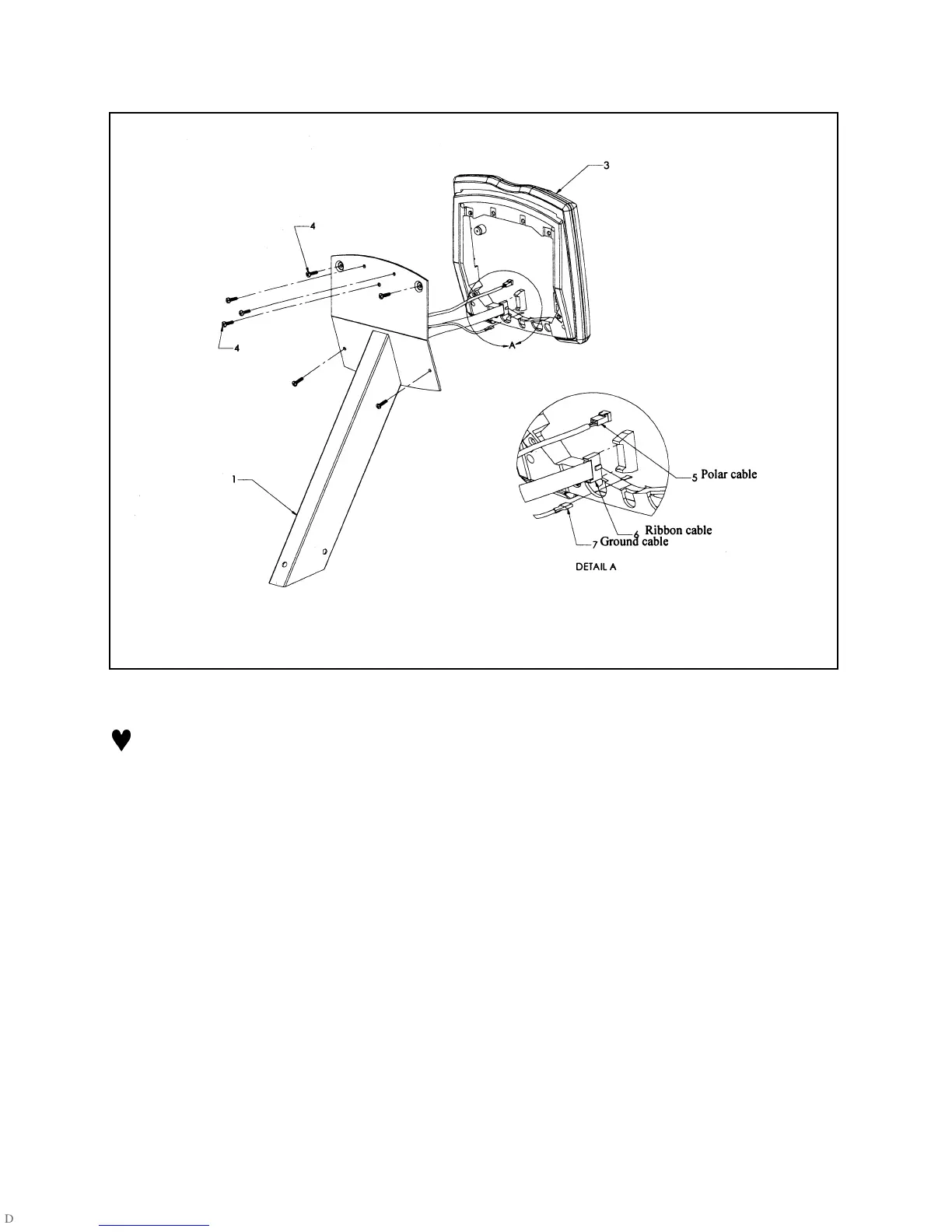

If you have the optional Polar heart rate monitor, attach the heart rate monitor cable to
the back of the console. See Figure 2, Detail A.
Use the four Phillips-head screws (10) to attach the display console to the console back-plate.
See Figure 3 (located on the next page).
Important: You must still screw the three screws into the open holes in the back plate to
protect the electronics from the environment.
Page 2-4
Figure 2
©
