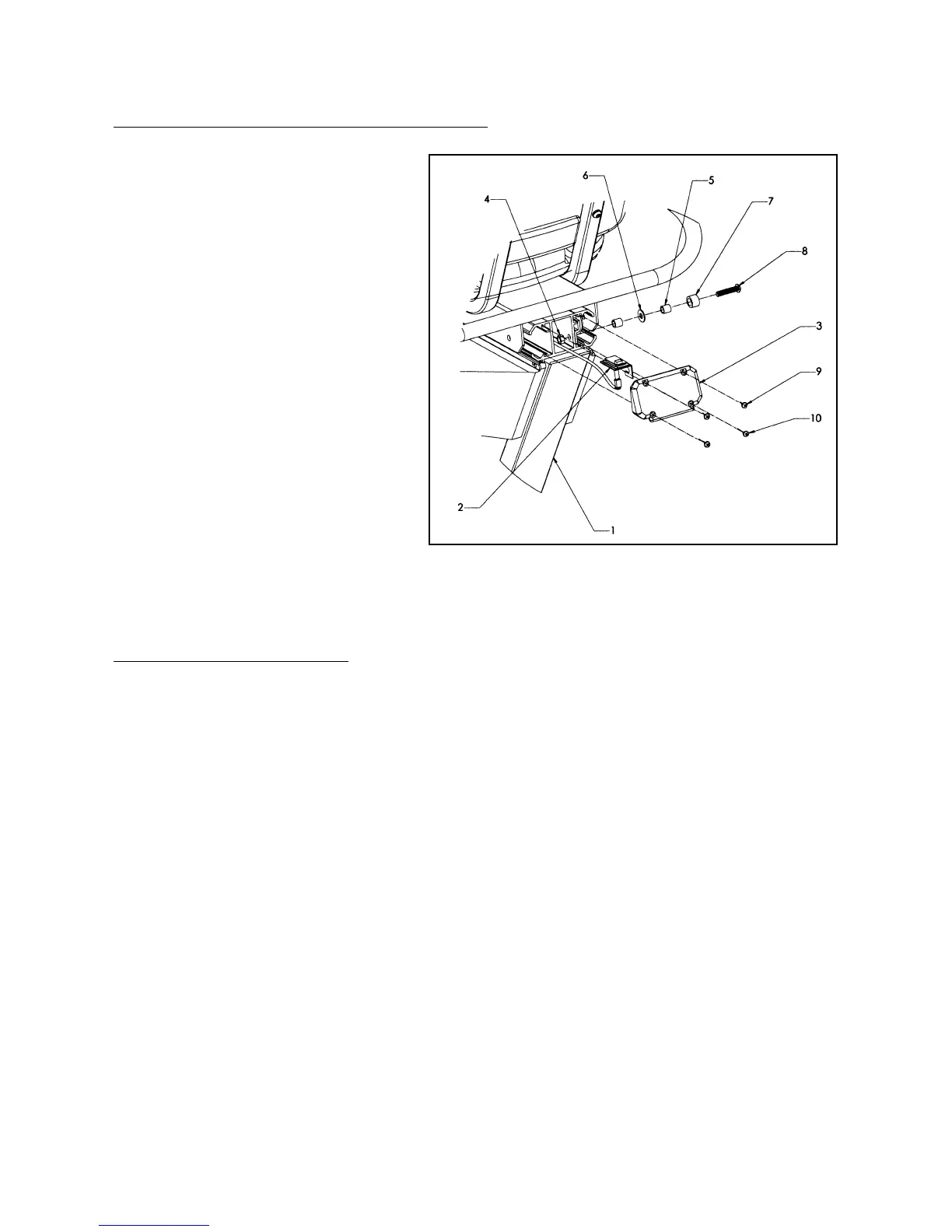

Remove the plate at the rear of the
cycle (item 3 shown in Figure 3). Plug
the cable, already inside the seat rail,
into the Polar receiver (2). Loosen nut
(4) on inside of seat rail, and slide the
Polar receiver bracket onto the bolt (8)
shaft. Tighten the nut to secure the
bracket, and replace the rear plate (3).
See Figure 3.
Assembling the 500C Cycle (Upright)
Parts List for the 500C Cycle
Part# Qty Description
LT-03150 1 Owner’s Manual
HX-00438 1 Wrench, 3/16 Hex Key
HS-41106 7 #10-24 x 1/2” Screw
HS-41072 4 5/16-18 x 3/4 Button Head Screw
HS-41126 3 5/16-1” Button Head Screw
HW-53018 7 Lock Washer
AX-61026 1 Termination Plug
AW-61033 1 Communications Cable
AF-61351 1 Handlebar
AX-70387 1 Display Upright
Varies 1 Configuration Kit
Varies 1 Display Console
Varies 1 Main Chassis Base
Varies 1 Configuration Kit
Page 2-5
Cybex 500C Cycle and 500R Recumbent Cycle Owner’s Manual
Figure 3
If Your Cycle Has a Polar Heart Rate Receiver
