Attaching the Handlebars
As shown in Figure 4, detail A (located on the previous page), use the 3/16" hex wrench
to attach the handlebar to the console back-plate with four 5/16" button-head screws
(HS-41072) and lock washers (HW-53018).

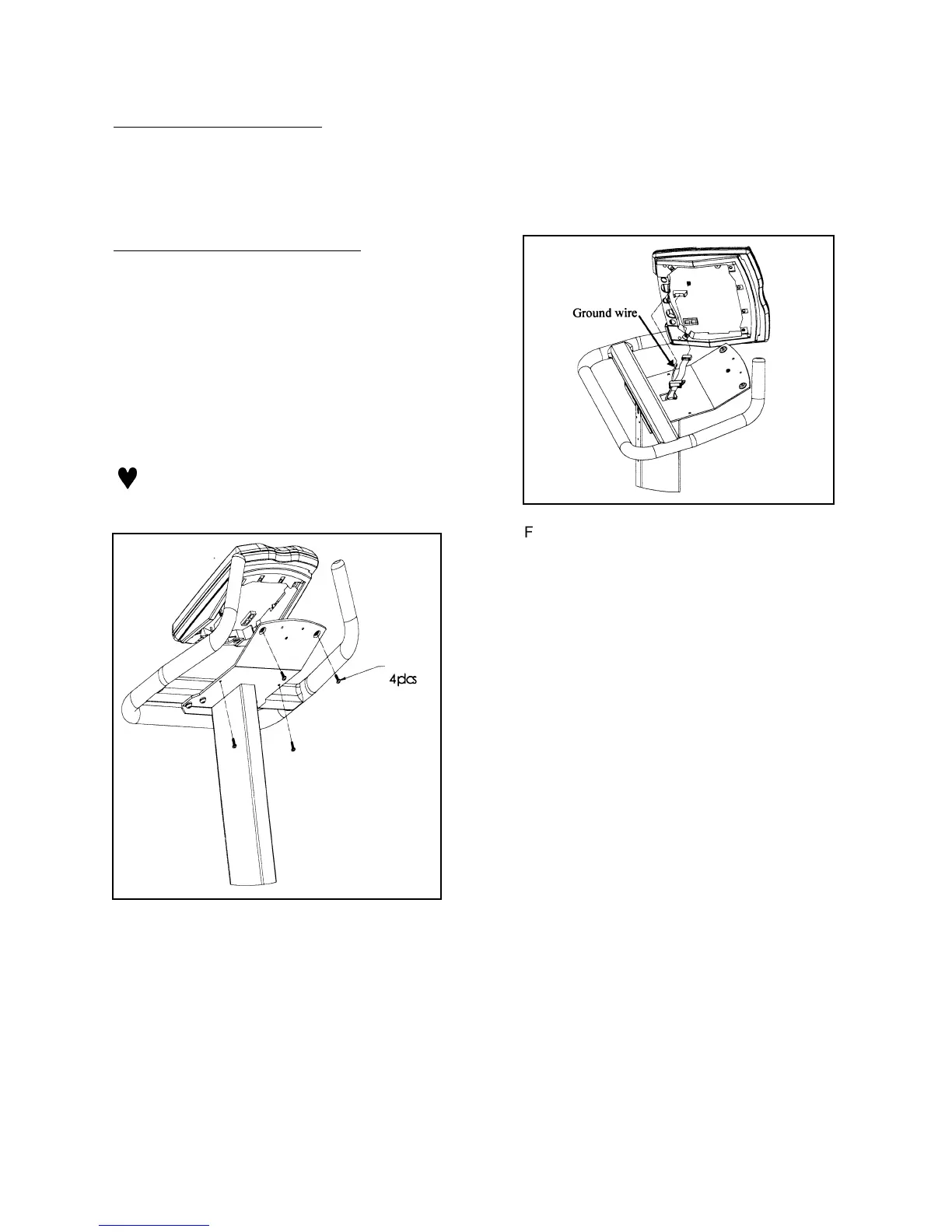

Attaching the Display Console
Remove the display console from the configuration
kit Attach the ribbon cable from the display upright
to the back of the display board. The connector is
keyed so you cannot insert it backwards. Attach the
green ground cable to the single flat connector next
to the ribbon cable connector. Make sure the cables
are firmly connected before continuing. See
Figure 5.
If you have the Polar heart rate monitor
option, attach the heart rate monitor cable
to the back of the console.
Plugging in the 500C Cycle and 500R Recumbent Cycle
Because of its alternator design, you do not need to plug your 500C Cycle and 500R
Recumbent Cycle into a wall socket; it generates all the electricity it needs from the power of
your pedaling. An optional power adapter lets you plug the 500C Cycle and 500R
Recumbent Cycle in if you want; this makes some features easier to use. Simply plug the
adapter into the outlet on the front (wheel side) of the 500C Cycle and 500R Recumbent
Cycle. There is no power switch; you may unplug the adapter to turn off the display
(normally you can leave it on all the time).
Cybex 500C Cycle and 500R Recumbent Cycle Owner’s Manual
Page 2-7
Figure 5
Figure 6
Use the four Phillips-head screws from the
configuration kit to attach the display console
to the console back-plate. See Figure 6.
Important: You must still screw the three
screws into the open holes in the back plate to
protect the electronics from the environment.
HS-41006
