CYBEX 770R Cycle - 770 R Assembly Instructions

Cybex Owner’s Manual
20
770R Assembly
Unpackandverifycontentsoftheunit.

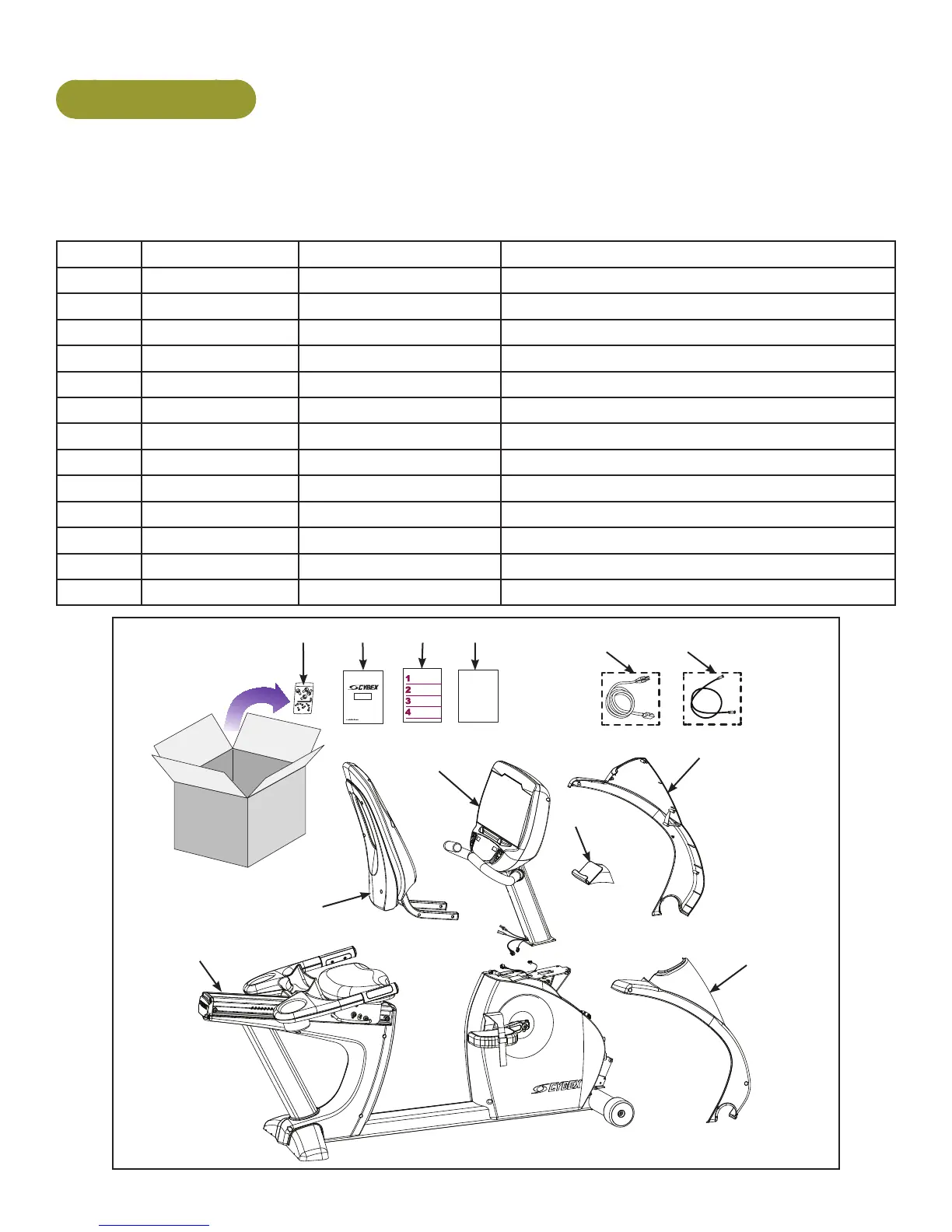

Verify the following items are present. See Customer Service chapter for contact information if any
parts are missing.
Item Quantity Part Number Description
1 1 Varies Base with covers attached
2 1 Varies Console assembly
3 1 PL-21517 Front Left Cover
4 1 PL-21518 Front Right Cover
5 1 AX-21670 Seat Back Assembly
6 1 AX-21738 Accessory Tray
7 1 AX-21699 Hardware pack
8 1 LT-23688-4 Owner’s Manual
9 1 LT-23691 Assembly poster
10 1 LT-23693 Warranty sheet, Consumer
10 1 LT-23692 Warranty sheet, Commercial
11 1 Varies Power cord (E3 View Monitor option)
12 1 AW-23836 Cable, 6’, Coax (E3 View Monitor option)
8 9 10
11 12
7
5
3
2
1
4
6
