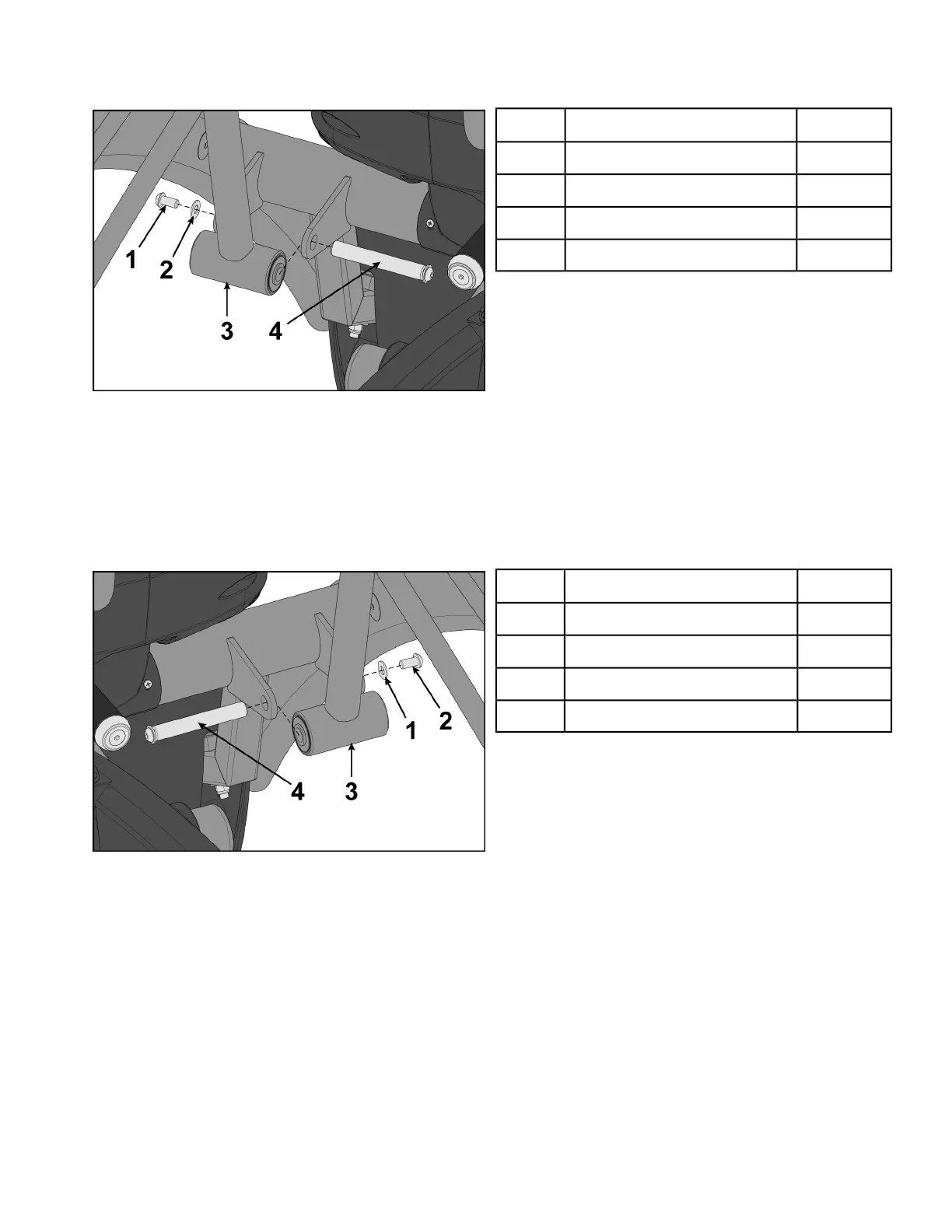

1. Remove a screw and washer from the left handle assembly using two 7/32” Allen wrenches.
Qty.Description
1Screw1
1Washer2
1Left handle3
1Pivot pin assembly4
2. Slide pivot pin assembly out and remove left handle assembly.
3. Rotate left handle assembly 180 degrees.
4. Apply Loctite to threads inside the pivot pin and screw.
5. Place left handle assembly in position and slide pivot pin assembly back in place.
6. Install the screw and washer to the left handle assembly using two 7/32” Allen wrenches.
7. Remove a screw and washer from the right handle assembly using two 7/32” Allen wrenches.
Qty.Description
1Washer1
1Screw2
1Right handle3
1Pivot pin assembly4
8. Slide pivot pin assembly out and remove right handle assembly.
9. Rotate right handle assembly 180 degrees.
10. Apply Loctite to threads inside the pivot pin and screw.
11. Place right handle assembly in position and slide pivot pin assembly back in place.
12. Install the screw and washer to the right handle assembly using two 7/32” Allen wrenches.
Page 37 of 95
Cybex 771A/771AT, 772A/772AT Arc Trainer Part Number 5771-4 K
