CYBEX Pallas M-FIX User Manual

10
u
j
c
y
b
y
o
c
b
w
y
d
CLICK!

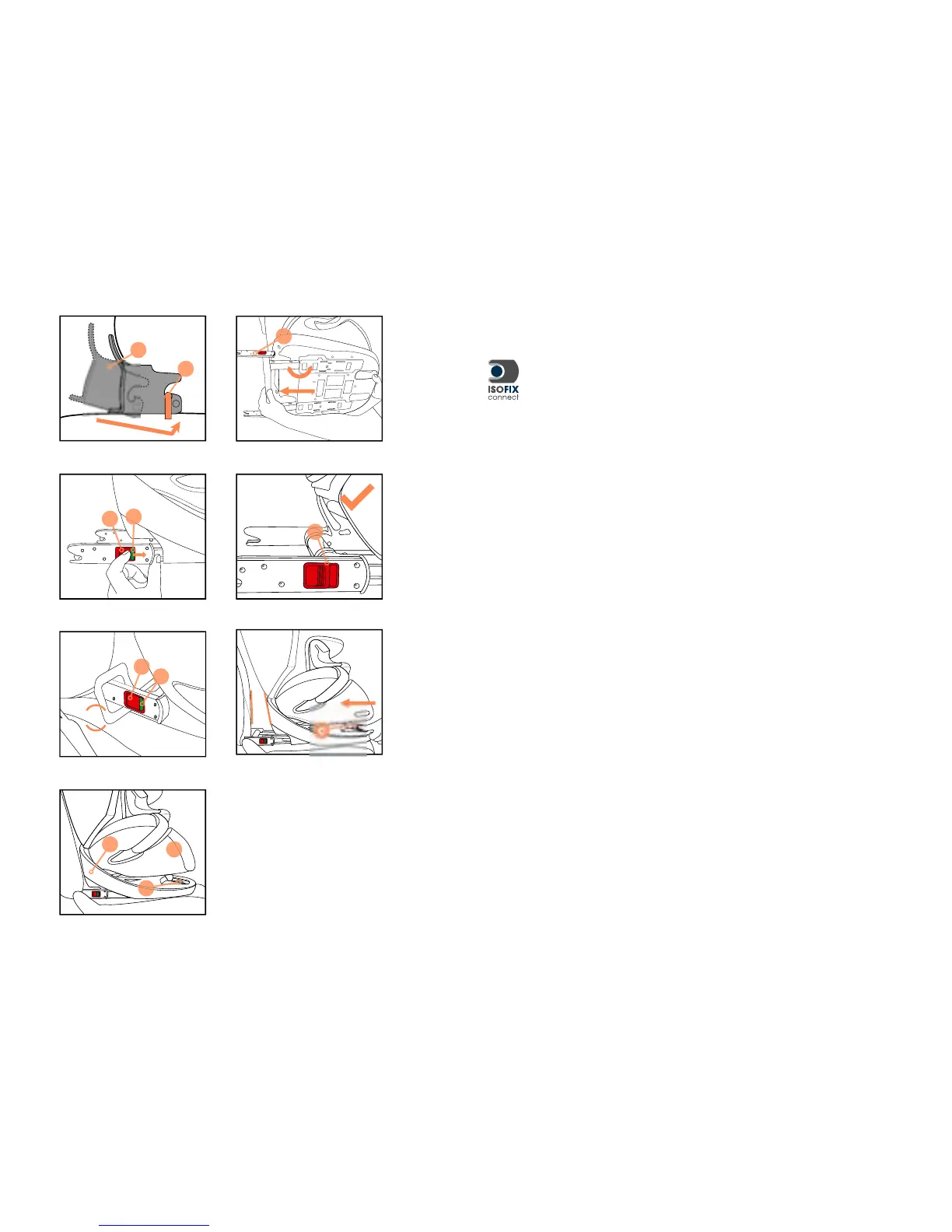

SECURING THE CHILD SEAT USING THE ISOFIX CONNECT
SYSTEM
Note! The ISOFIX  xture points (j) are two metallic clips for each seat and are
positioned between the back rest and the seating surface of the vehicle seat. In case
of doubt, please refer to the driver’s manual of your vehicle.
Note! Before joining the ISOFIX-CONNECT locking arms (o) with the ISOFIX  xture
points (j), check the release buttons (y). If the green safety indicators (b) are visible,
you must  rst release the ISOFIX-CONNECT locking arms before joining by pressing
and pulling back the release button. Repeat the process if necessary with the second
locking arm.
A perceptible click will be heard when the ISOFIX-CONNECT locking arm correctly
locks in place with ISOFIX  xture points.
Note! Note the information in the section “Placing the seat in the vehicle”.
• Push the two locking arms (o) into the feed-in aids (u) until these lock into place in
the ISOFIX  xture points with an audible ‘click’.
• Ensure that the seat is secure by trying to pull it out of the feed-in aids (u).
• The green safety indicator (b) must now be clearly visible on the two red release
buttons (y).
• You can now use the adjustment lever (c) on the frame (w) of the CYBEX PALLAS
M- x child seat position.
• You can now strap in your child; refer to the section “STRAPPING IN USING
SAFETY CUSHION”.
• Insert the supplied feed-in aids (u) with the longer strap upwards into the two
ISOFIX  xture points (j). In some vehicles, it is better to mount the feed-in aids (u)
in the opposite direction.
• Use the adjustment lever (c) under the seat cushion (d) on the frame (w) of the
CYBEX PALLAS M- x child seat.
• Pull the two ISOFIX-CONNECT locking arms (o) as far as they will go.
• Now twist the ISOFIX-CONNECT locking arms (o) 180° so that they are facing the
direction of the feed-in aids (u).
Using the ISOFIX-CONNECT system, you can  x the CYBEX PALLAS M- x
to the vehicle, thereby increasing your child’s safety. Your child will still be
secured using the three-point belt of your vehicle.

CYBEX Pallas M-FIX Specifications

General

Certification	ECE R-44/04, Supplement 7
Mounting type	ISOFIX
Product color	Black
Car seat group	1-2-3 (9 - 36 kg; 9 months - 12 years)
Side protection	Yes
Belt fastening type	3-point

Weight and Dimensions

Depth	454 mm
Width	540 mm
Height	700 mm
Weight	9300 g
