CYBEX Pallas M-FIX User Manual

20
f
f
f
x
x
x
x
n
n
n
p
p
m
w
d
l
q
q
CLICK!
v

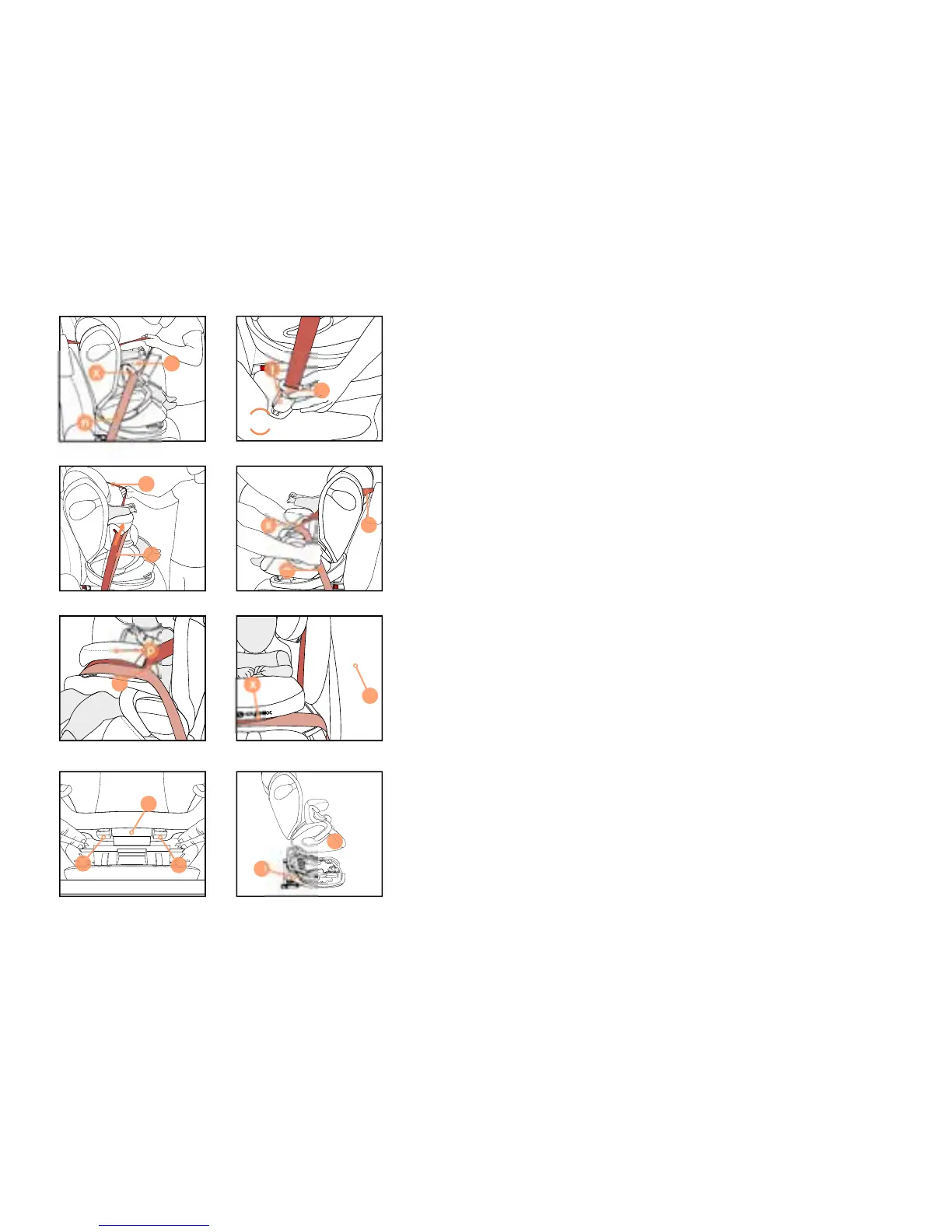

STRAPPING IN USING THE SAFETY CUSHION – ECE GROUP 1
(9-18 KG)
SWITCHING FROM PALLAS M-FIX TO SOLUTION M-FIX (ECE
GROUP 1 TO ECE GROUP 2/3)
1. Now insert the previously adjusted safety cushion (p) (refer to the section
“ADJUSTING THE SAFETY CUSHION”).
2. Pull the entire length of the vehicle’s three-point belt out. Take the lap belt (n) and
place it in the designated belt guide (x) in the safety cushion (p).
3. Insert the belt tongue (m) into the belt buckle (l). It must lock into place with an
audible “CLICK”.
4. Tighten the lap belt by pulling the diagonal belt.
5. Now feed the diagonal belt (f) in parallel with the lap belt (n) back into the belt
guide (x).
6. Pull the diagonal belt (f) tight and ensure that both parts of the belt cover the entire
width of the safety cushion (p) in the belt guide (x).
7. Feed the diagonal belt (f) either between the head and shoulder rests (see
illustration) or outside along the shoulder rest, depending on how much of the belt
length is available. Please always choose the option that uses the least amount of
belt length.
WARNING! Never twist the belt!
1. Remove the safety cushion (p).
2. Press the two release buttons (q) on the underside of the seat cushion (d) and pull
it away from the frame until there is some resistance.
3. Press the adjustment button (v) and pull the seat away from the frame (w)
completely.
WARNING! The three-point belt may only be inserted into the guides
designated for that purpose. The belt guides are described precisely in this
manual and are also marked red on the child seat.

CYBEX Pallas M-FIX Specifications

General

Certification	ECE R-44/04, Supplement 7
Mounting type	ISOFIX
Product color	Black
Car seat group	1-2-3 (9 - 36 kg; 9 months - 12 years)
Side protection	Yes
Belt fastening type	3-point

Weight and Dimensions

Depth	454 mm
Width	540 mm
Height	700 mm
Weight	9300 g
