CLICK!

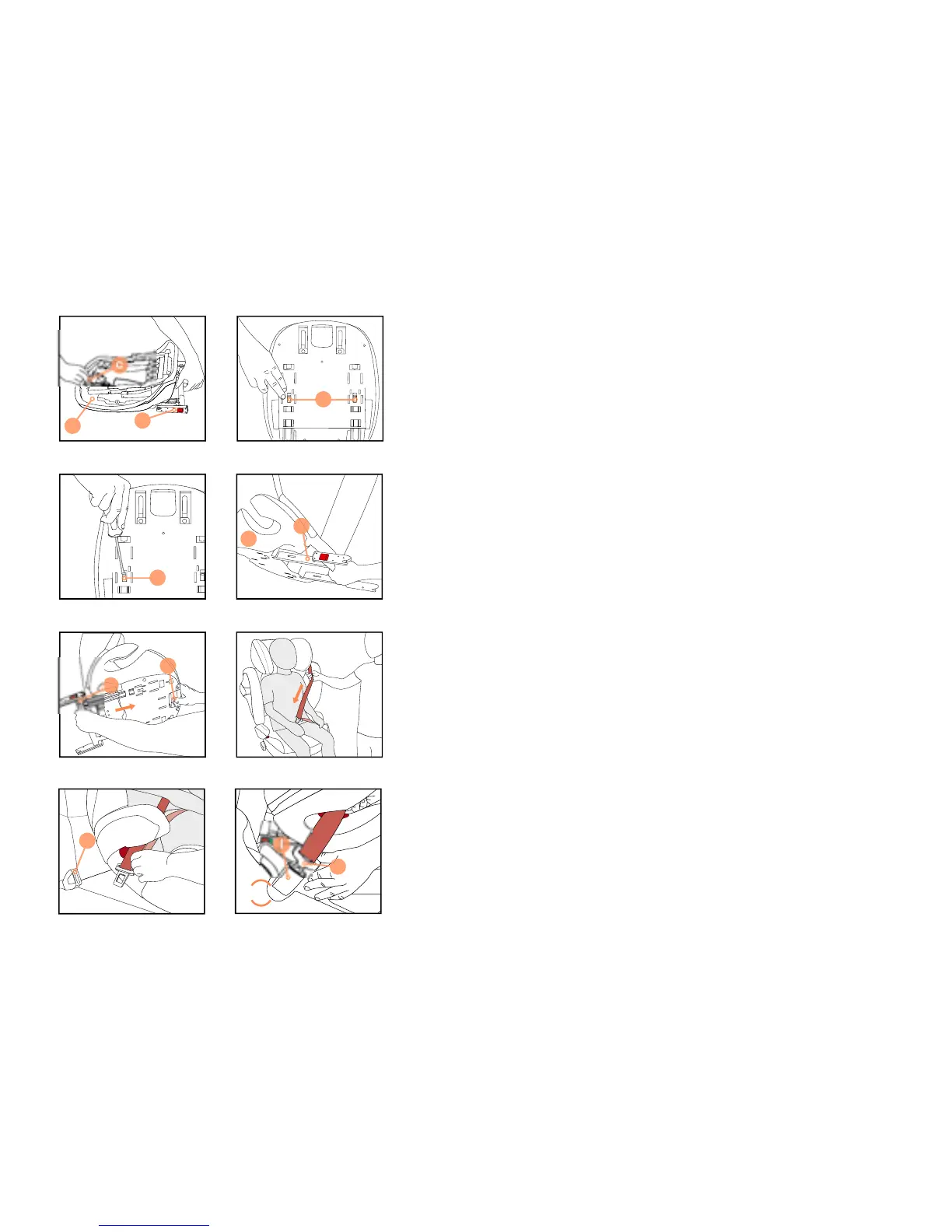

ISOFIX CONNECT modi cation
4. Operate the adjustment lever (c) on the frame (w) and pull the two ISOFIX
CONNECT locking arms (o) until there is some resistance.
5. Keep the adjustment lever held (c) and release the two snap clips (A) on the
underside of the seat elevator (d), one after the other. If necessary, use a
screwdriver.
7. Operate the adjustment button (v) on the underside of the seat elevator (d) and
push the locking arms (o) in as far as they will go.
8. For further information on correct installation, please refer to the section
“SECURING THE CHILD SEAT USING THE ISOFEX CONNECT SYSTEM”
6. Now push the ISOFIX CONNECT locking arms (o) into the designated openings
on the underside of the seat elevator (d) until there is some resistance.
Note! If this is done correctly, the ISOFIX CONNECT locking arms (o) will easily
release from the frame (w).
Note! Keep removed parts together in a safe and secure place.
WARNING! Note the minimum drop height of the ISOFIX CONNECT locking
arms. Failure to note this may result in damage to components or injury to
yourself or other persons nearby.
WARNING! Ensure that the locking arms are installed the right way around and
that the teeth of the locking arms are up when inserting them into the seat.
WARNING! When reassembling the seat, proceed in precisely the reverse
order. Use the instructions to check beforehand if all parts are present.
STRAPPING IN WITHOUT THE SAFETY CUSHION – ECE GROUP
2/3 (15-36 KG)
1. Place your child in the child seat. Pull the three-point belt right out and feed it
along the belt buckle (l) in front of your child.
WARNING! Never twist the belt.
2. Insert the belt tongue (m) into the belt buckle (l). It must lock into place with an
audible “CLICK”.
