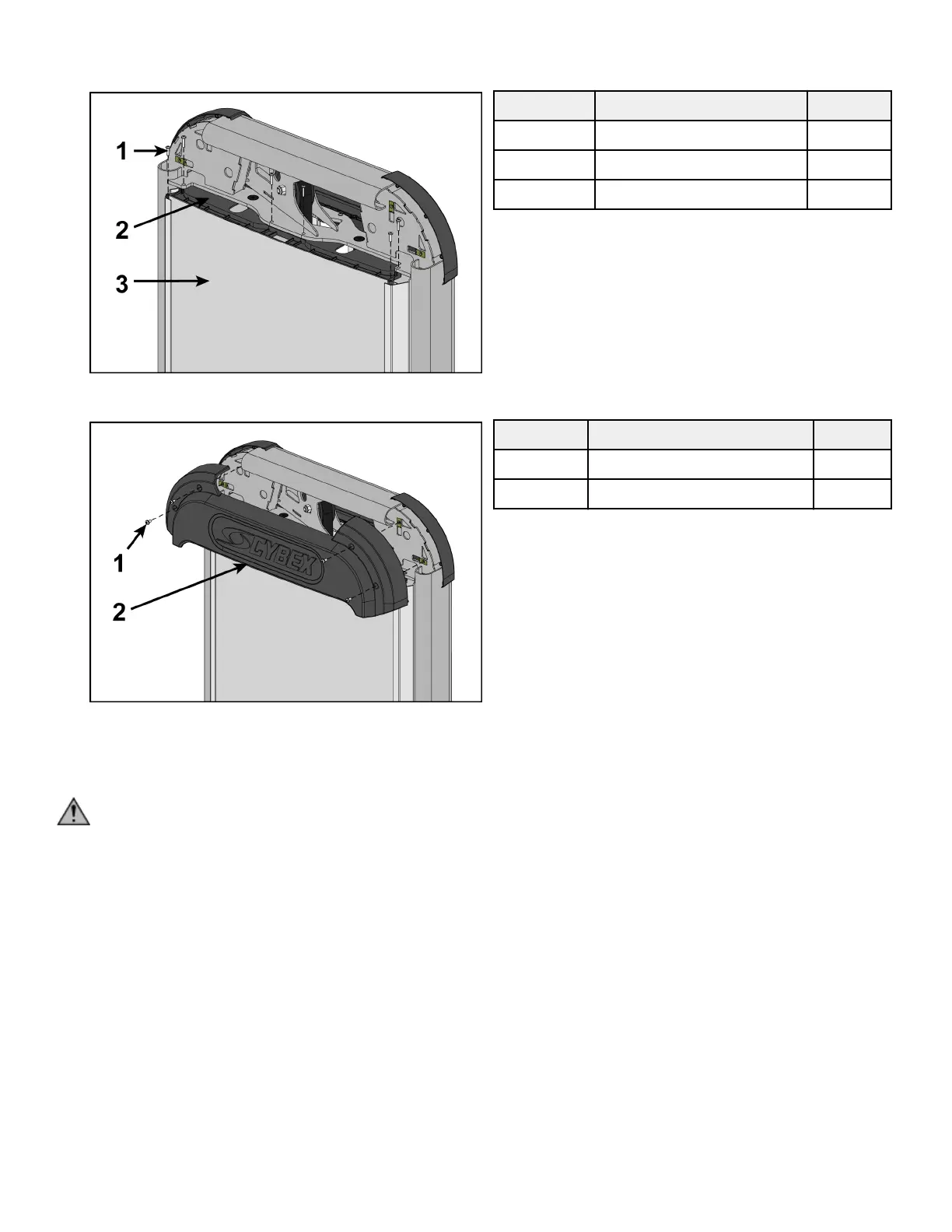

Install top cover
1. Install screws securing top mount to frame using a Phillips screwdriver.
Item Description Qty
1 Screw 6
2 Top mount 1
3 Back panel 1
2. Install screws securing top rear cover to frame using a Phillips screwdriver.
Item Description Qty
1 Screw 4
2 Top rear cover 1
Securely anchor machine to floor
Owner should not allow equipment to be used until it is properly anchored as described below.
WARNING: Anchoring equipment:
• To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface,
utilizing all anchoring holes provided.
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum
pull force of 220 lbs/100 kgs is required for each anchor position.
• If leg frames do not contact surface, DO NOT pull down with anchors. Shim any leg or frame not in contact with surface
using flat washers.
• Due to the wide variation of flooring on which machines may be anchored or installed, consult with a qualified and
licensed contractor to ensure proper anchoring and installation.
Verify proper operation
