Inspection Action
Inspect grips for looseness or wear. Replace all loose or worn grips immediately.
Inspect all labeling for readability, including instructional
placards, warning and caution decals.
Replace all worn labeling immediately.
Inspect all weight stacks for proper alignment and operation.
Correct all improper alignment and operation issues
immediately.
Inspect guide rods for lubrication.
Wipe Weight Stack Guide Rods clean over entire length. Lubricate
with a light coat of medium weight automotive engine oil.
Yearly Procedures
Replace all cables and belts annually

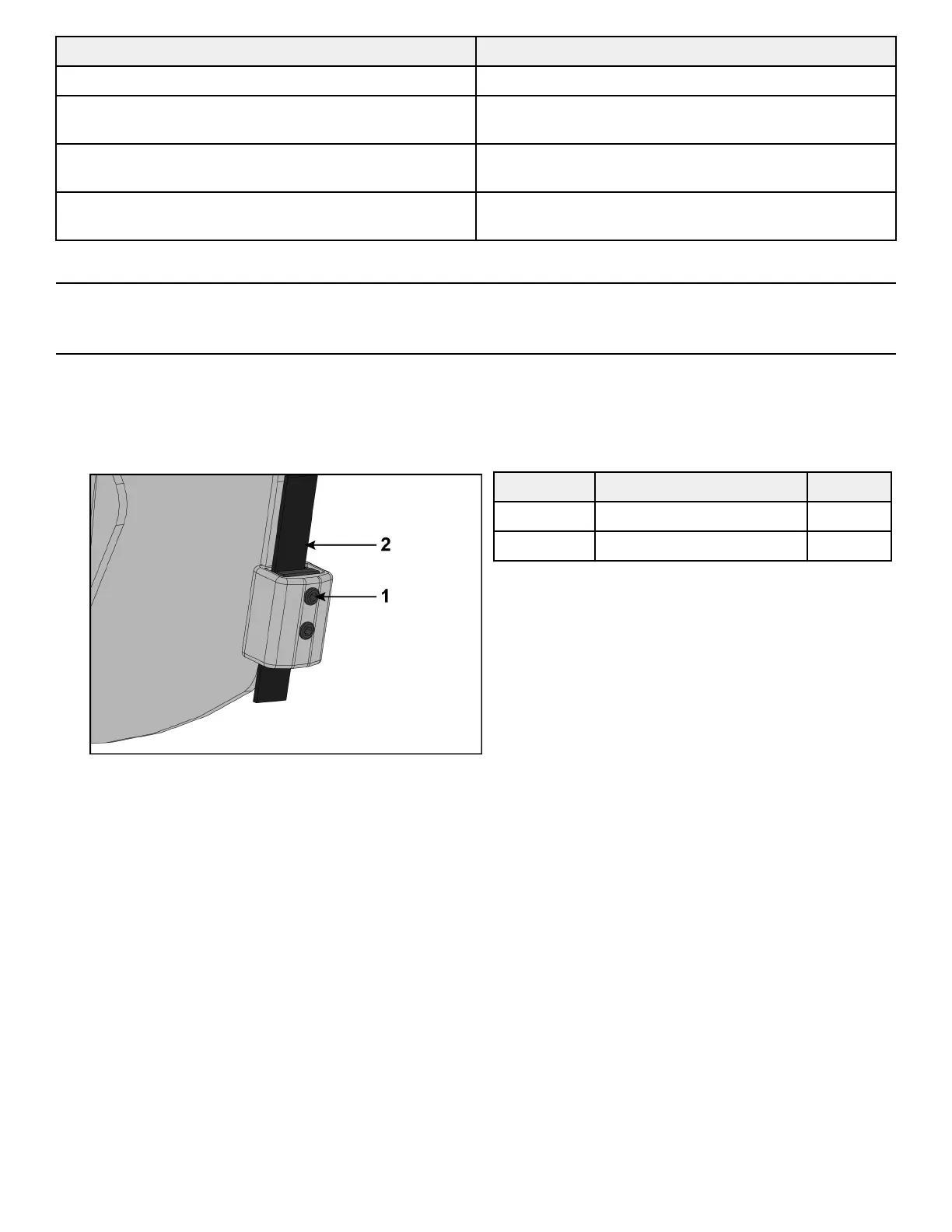

Belt Adjustment
Tools Required
• 7/32" Wrench
• Torque wrench
1. Loosen set screws using a 7/32" Allen wrench.
Item Description Qty
1 Set screw 2
2 Belt 1
2. Pull belt tight.
3. Secure belt in place with set screws.
4. Torque set screws to 300-350 lb-in.
5. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the top weight belt clamp.
