CYBEX R Series

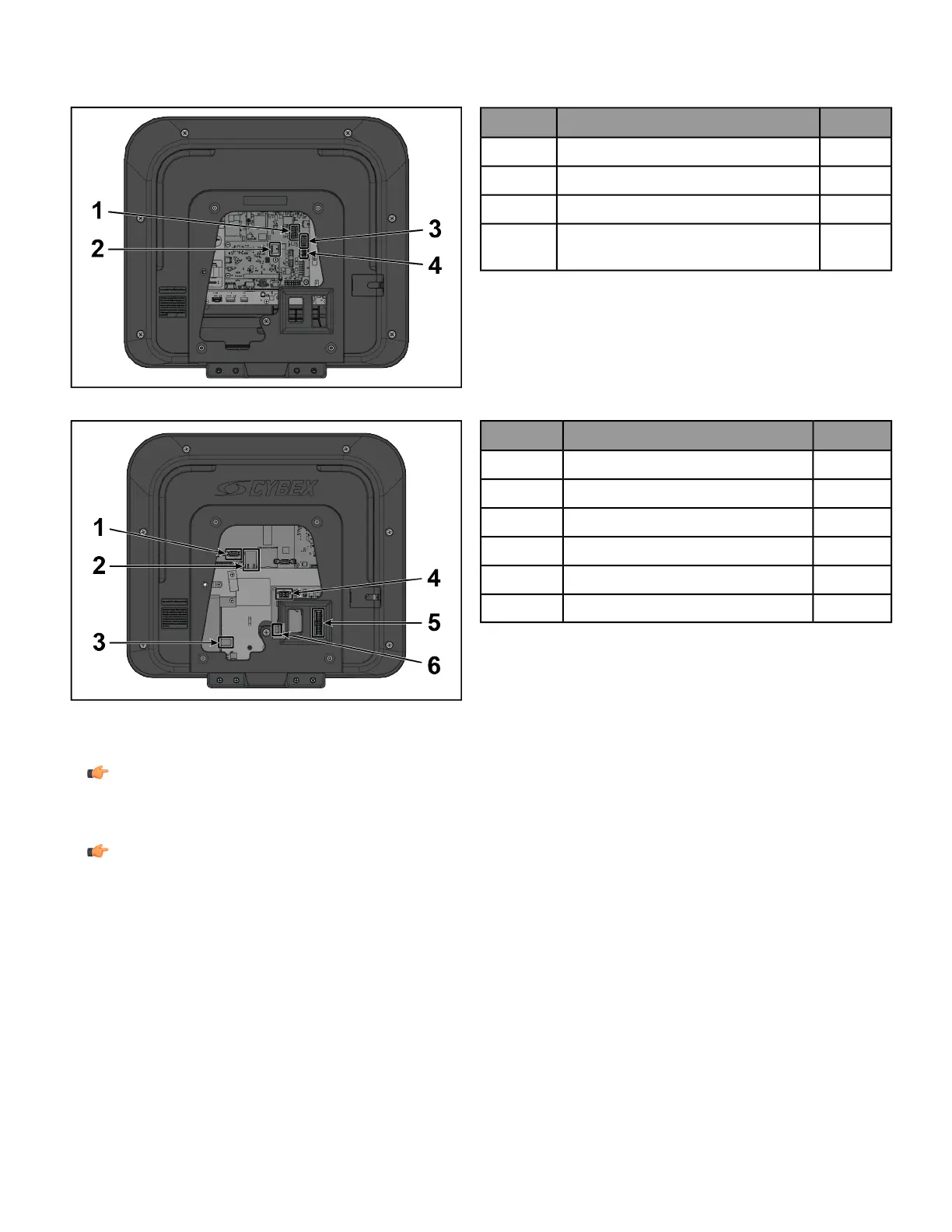

Install Cables to Console
Plug the console cables into the console.
50L Console
QtyDescriptionItem
1Cable, Console to Base Power1
1Cable, Lifepulse2
1Cable, Base Signal3
1
Cable, Heart Rate and Keypad
Switches
4
70T Console
QtyDescriptionItem
1Cable, HDMI1
1Cable, Ethernet2
1Cable, Coax3
1Cable, External Power4
1Cable, PCB to Console Power5
1Cable, IR6
Install Console to Console Weldment
1. Route media cables from frame up through hole at base of console weldment.
NOTE: Media cables for Basic Cabling package include a coax cable. Media cablesfor Advanced Cabling
package include HDMI, ethernet, IR, and coax cables.
2. Connect media cables to console.
NOTE: The 50L Console does not receive a coax cable. The coax cable from the Basic Cabling package
goes to an attachable TV.
3. Insert cables from console into top of console weldment.
