QtyDescriptionItem
3Locknut, M10 x 1.501
2Spacer2
1Side Handle, Left3

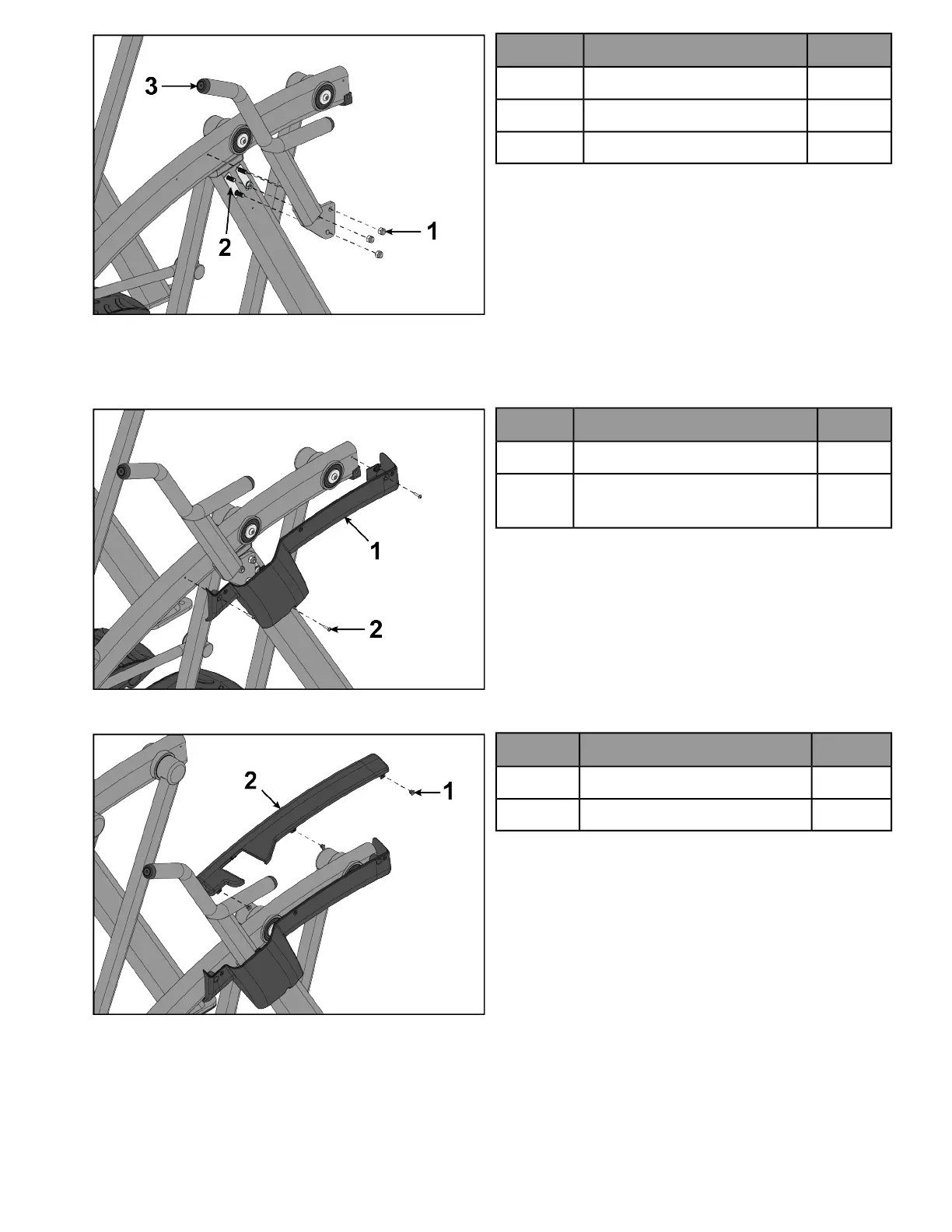

2. Install the left side handle and three locknuts using 17mm open-end wrench and 6mm Allen wrench. Ensure
upper roll pin enters hole in frame.
3. Install screws securing left lower rear cover to frame using a Phillips screwdriver.
QtyDescriptionItem
1Cover, Rear, Lower, Left1
3
Screw, Pan Head Phillips, 10-24
x .75"
2
4. Install grommets to left top rear cover.
QtyDescriptionItem
3Grommet, Nylon, Short1
1Cover, Rear, Top, Left2
