Visually Inspect Unit
1. Remove any packing material from unit.
2. Examine the unit to ensure that the assembly is correct and complete.
Level Unit
This procedure will level the unit by evenly adjusting the weight on the rear feet. Leveling the unit will eliminate
rocking during use.
NOTE: References to left and right are from the users perspective during use.
1. Verify foot plates are completely stopped.

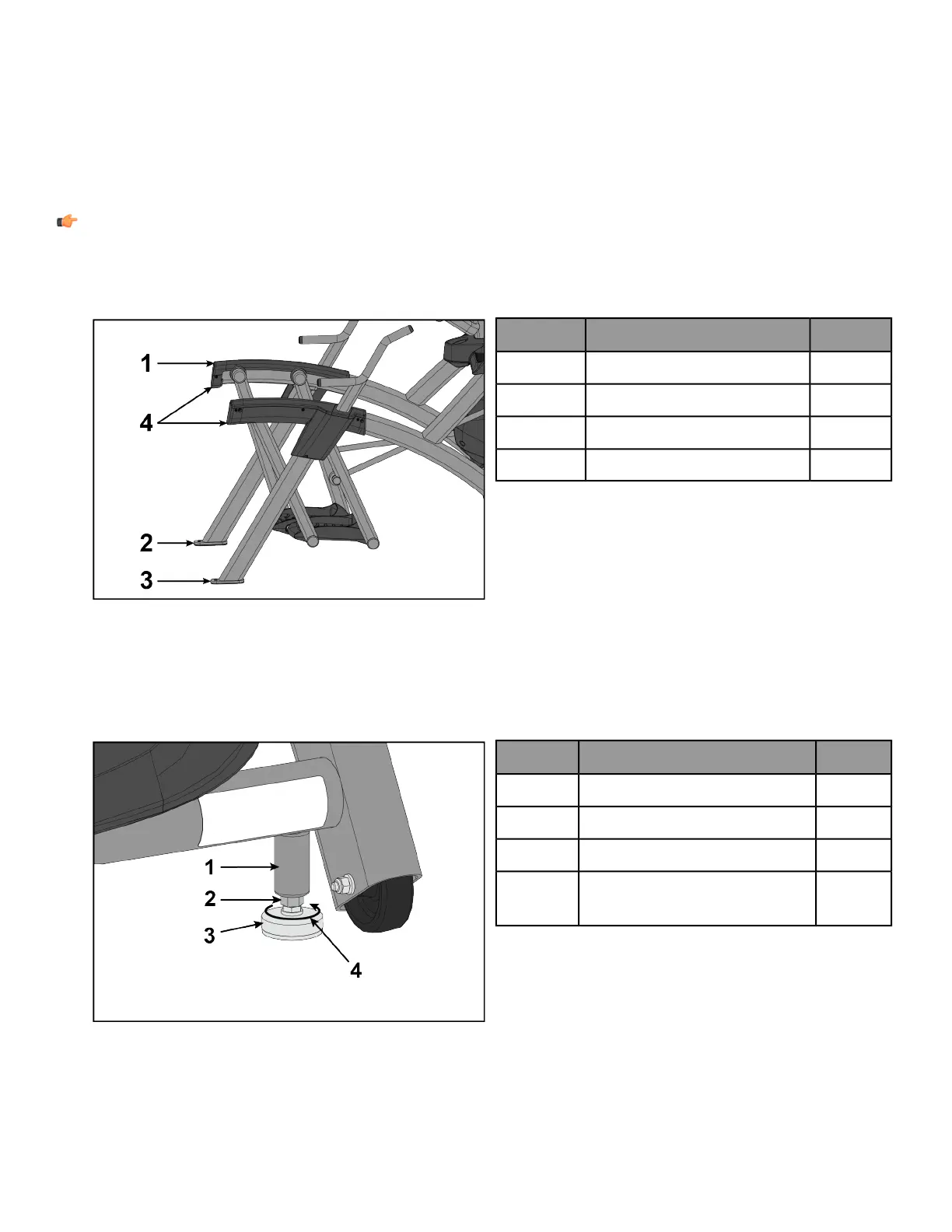

2. Grasp one of the rear covers and slowly lift the rear foot off the floor. Lower rear foot to the floor.
Qty.DescriptionItem
2Rear Cover1
1Left Rear Foot2
1Right Rear Foot3
Lift Here4
3. Grasp the other rear cover and slowly lift the rear foot off the floor. Lower rear foot to the floor.
Make note of either rear foot lifting off the floor easier than the other.
If both rear feet lift off the floor evenly, secure both leveling foot jam nuts against the frame post using a 9/16”
open-end wrench. Unit is leveled.
Left leveling foot shown
Qty.DescriptionItem
1Frame Post1
1Jam Nut2
1Leveling Foot3
Turn Counter-Clockwise to
Secure
4
