4. Adjust the weight of the rear feet using a 1/2” open-end wrench.
If the left rear foot lifts up easier, Adjust the right leveling foot nut down.
If the right rear foot lifts up easier, Adjust the left leveling foot nut down.

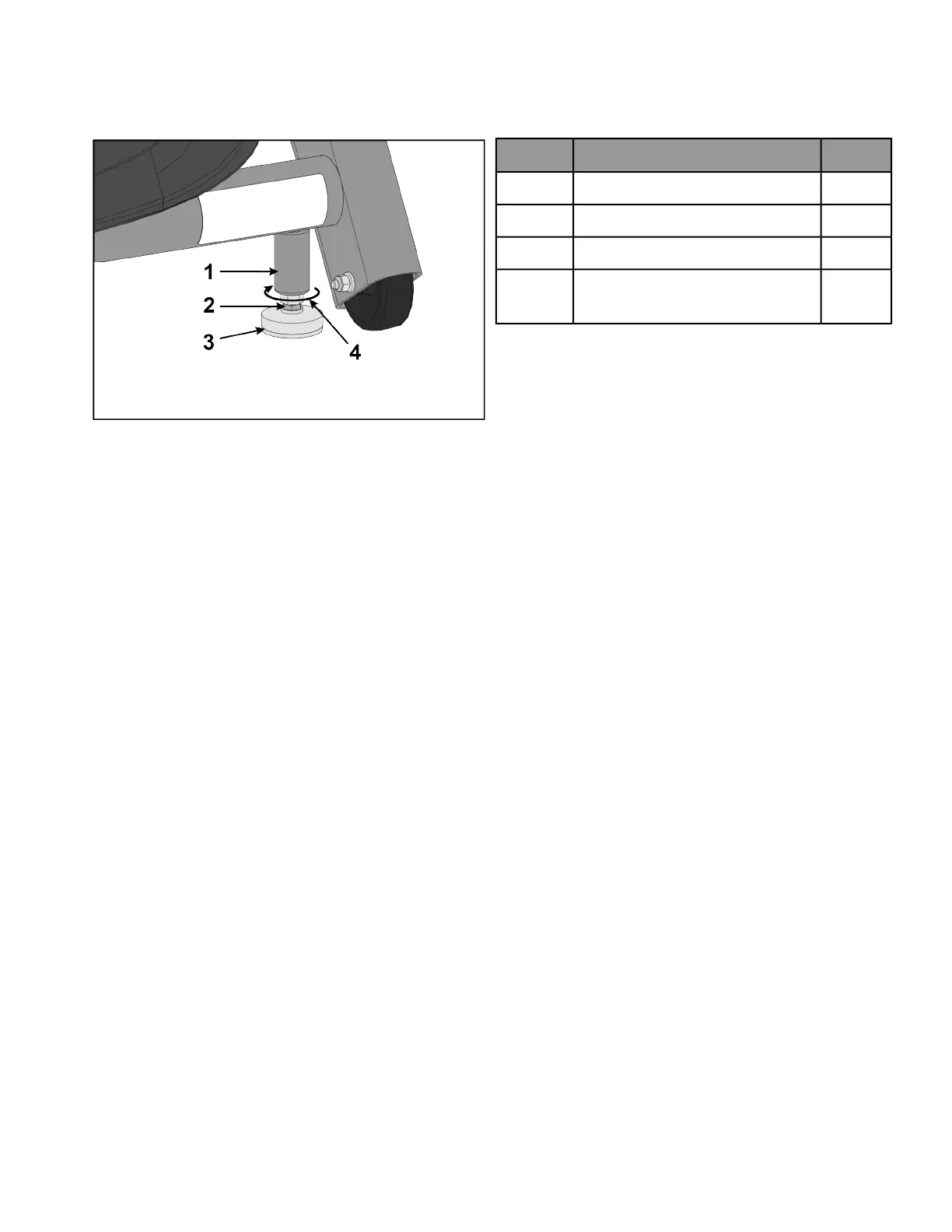

Left leveling foot shown
Qty.DescriptionItem
1Frame Post1
1Leveling Foot Nut2
1Leveling Foot3
Turn Clockwise to Adjust
Leveling Foot Down
4
5. Test the unit again for uneven weight on the rear feet. Adjust leveling foot nuts until each rear foot lifts with
even force.
6. Secure both jam nuts using a 9/16” open-end wrench. Unit is leveled.
