CYBEX R Series

QtyDescriptionItem
1Cover, Rear, Lower, Left1
3
Screw, Pan Head Phillips, 10-24
x .75"
2

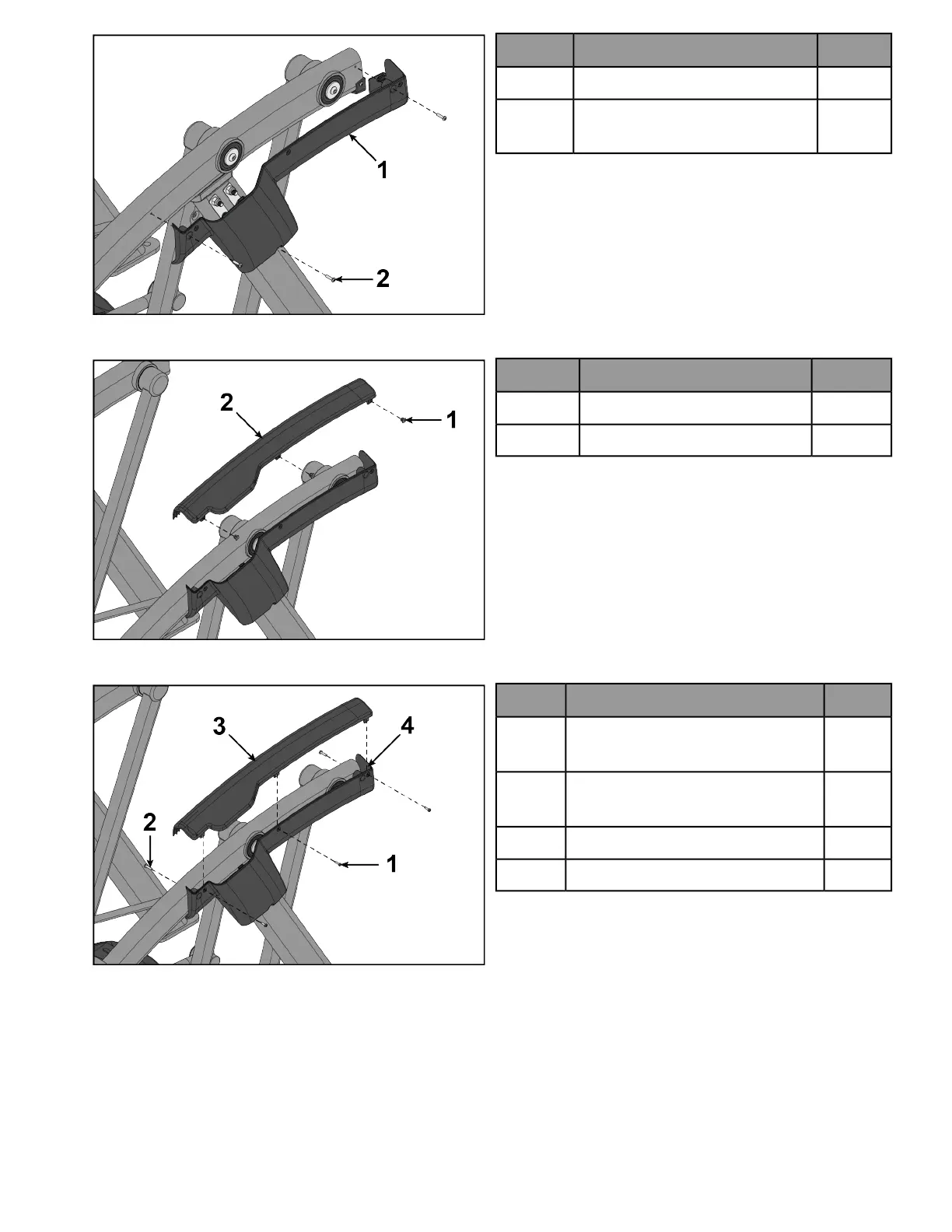

2. Install grommets to left top rear cover.
QtyDescriptionItem
3Grommet, Nylon, Short1
1Cover, Rear, Top, Left2
3. Install screws into grommets securing left lower rear cover to left top rear cover using a Phillips screwdriver.
QtyDescriptionItem
3
Screw, Pan Head Phillips, M4.2 x
0.7 x 19
1
2
Screw, Pan Head Phillips, 10-24 x
.75"
2
1Cover, Rear, Top, Left3
1Cover, Rear, Lower, Left4
4. Install screws securing left top rear cover to frame using a Phillips screwdriver.
5. Repeat steps 1 through 4 for the right side.
Remove Left and Right Handle Assembly
The left and right handle assemblies are shipped in rotated positions. The handle assemblies must be removed
and rotated 180 degrees for proper setup and assembly.
Page 36 of 47
