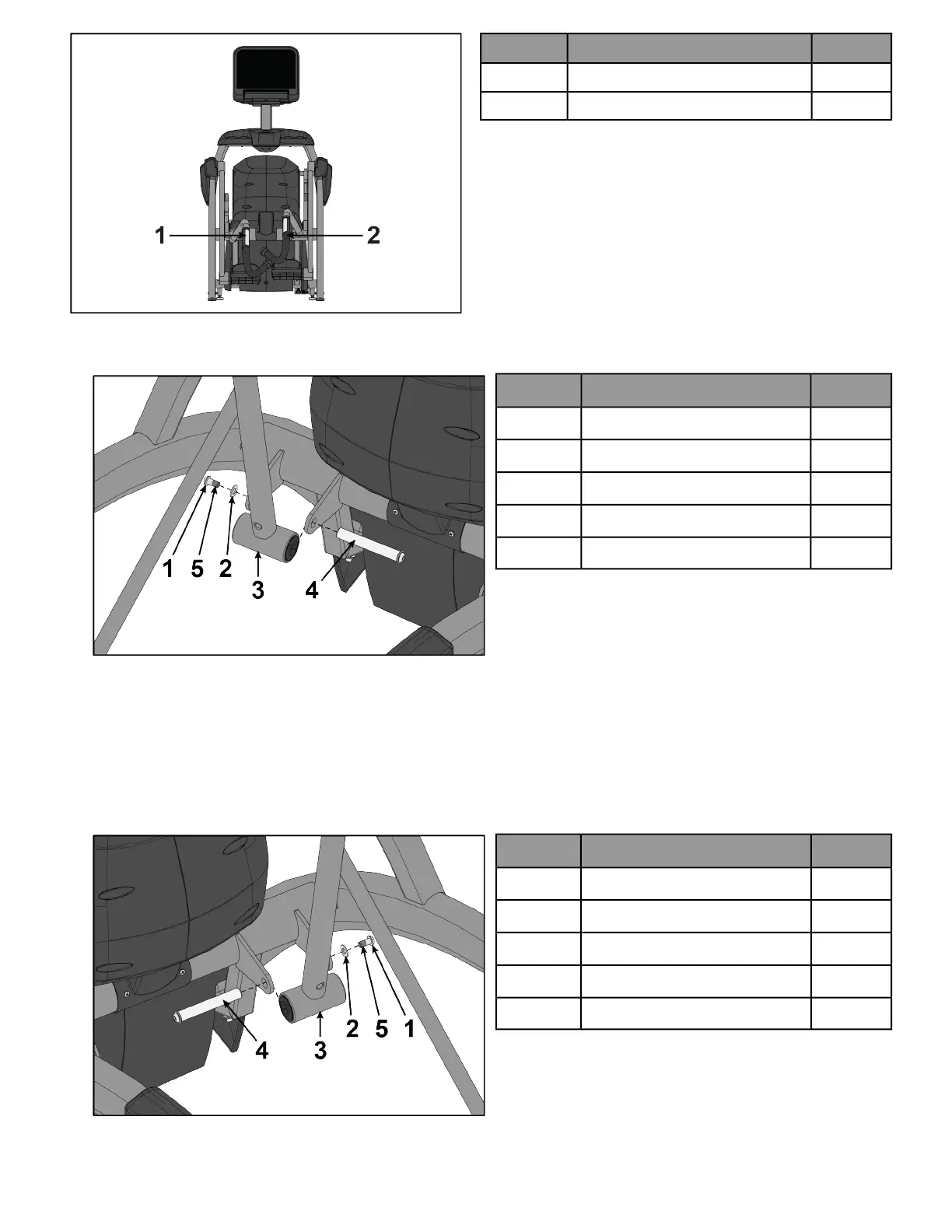

QtyDescriptionItem
1Handle Assembly, Left1
1Handle Assembly, Right2
1. Remove a screw and washer from the left handle assembly using two 7/32” Allen wrenches.
QtyDescriptionItem
1Screw1
1Washer2
1Handle Assembly, Left3
1Pivot Pin Assembly4
1Loctite #2425
2. Slide pivot pin assembly out and remove left handle assembly.
3. Rotate left handle assembly 180 degrees.
4. Apply Loctite to threads inside the pivot pin and screw.
5. Place left handle assembly in position and slide pivot pin assembly back in place.
6. Install the screw and washer to the left handle assembly using two 7/32” Allen wrenches.
7. Remove a screw and washer from the right handle assembly using two 7/32” Allen wrenches.
QtyDescriptionItem
1Screw1
1Washer2
1Handle Assembly, Right3
1Pivot Pin Assembly4
1Loctite #2425
Page 37 of 47
