4. Tighten screw to a minimum of 90 in-lbs.
Verify handle assemblies are now installed in the correct position.

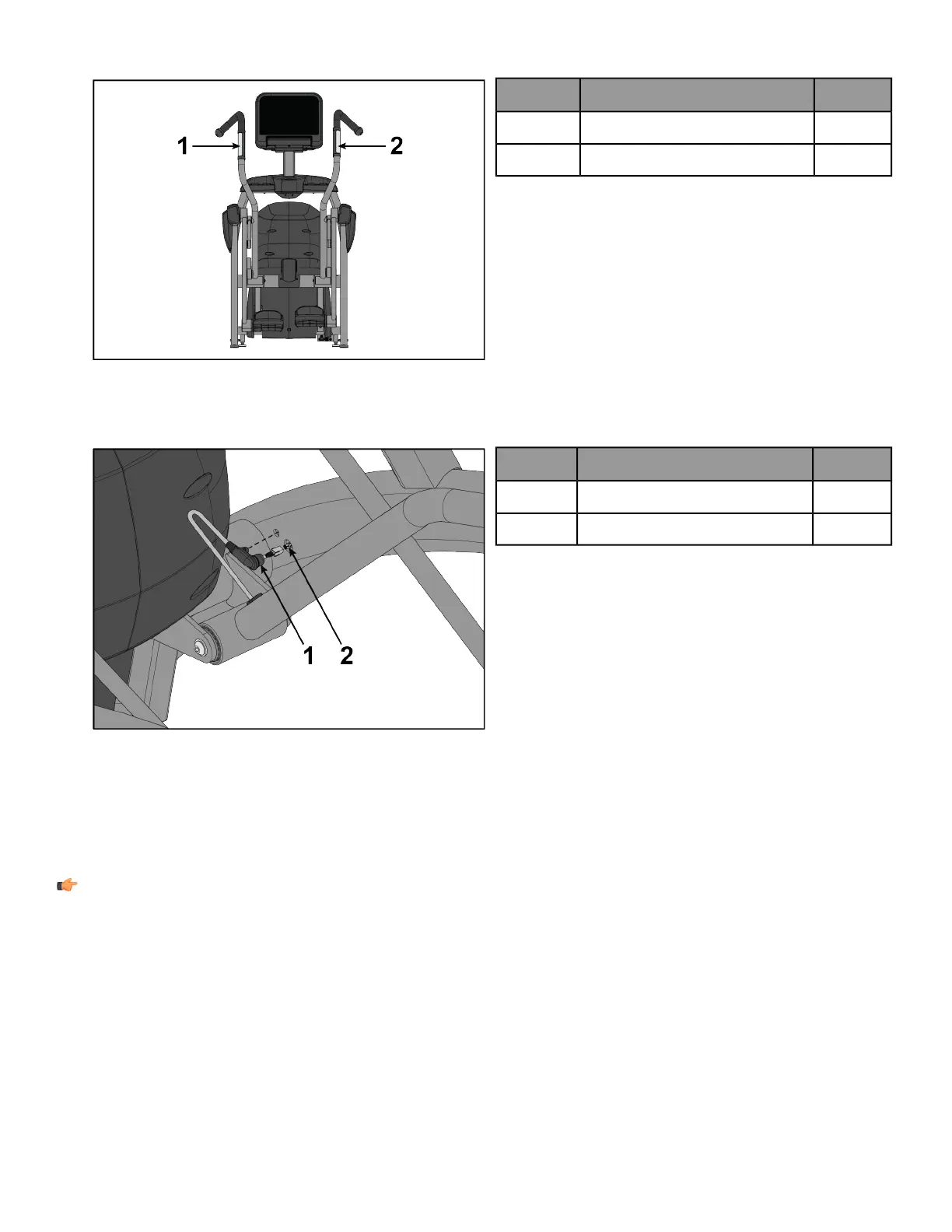

QtyDescriptionItem
1Left Handle Assembly1
1Right Handle Assembly2
Install Contact Heart Rate Cable
1. Connect handle heart rate cable to frame heart rate cable.
Qty.DescriptionItem
1Heart Rate Cable, Handle1
1Heart Rate Cable, Frame2
2. Press ends of handle heart rate cable into frame.
3. Repeat steps to install heart rate cable on opposite handle.
Install Foot Pads
Have one person lift the unit while a second person places a foot pad under each of the two back feet.
NOTE: Cybex requires that foot pads be installed to prevent rocking.
