Anchoring equipment:
• To maximize stability and eliminate rocking, tipping, or falling over,
equipment must be anchored to a solid, level surface, utilizing all anchoring
holes provided.
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex
recommends .3/8” grade 2 bolts or better. A minimum pull force of 220
lbs/100 kgs is required for each anchor position.
• If leg frames do not contact surface, DO NOT pull down with anchors. Shim
any leg or frame not in contact with surface using flat washers.
• Due to the wide variation of flooring on which machines may be anchored
or installed, consult with a qualified and licensed contractor to ensure proper
anchoring and installation.
Install weight plates
1. Lean guide rods slightly outward, away from machine, DO NOT put excessive pressure on guide
rods, it will damage lower guide rod caps.
2. Wipe the entire length of the guide rods with a clean cloth.
3. Lubricate the guide rods with a light coating of medium weight oil.

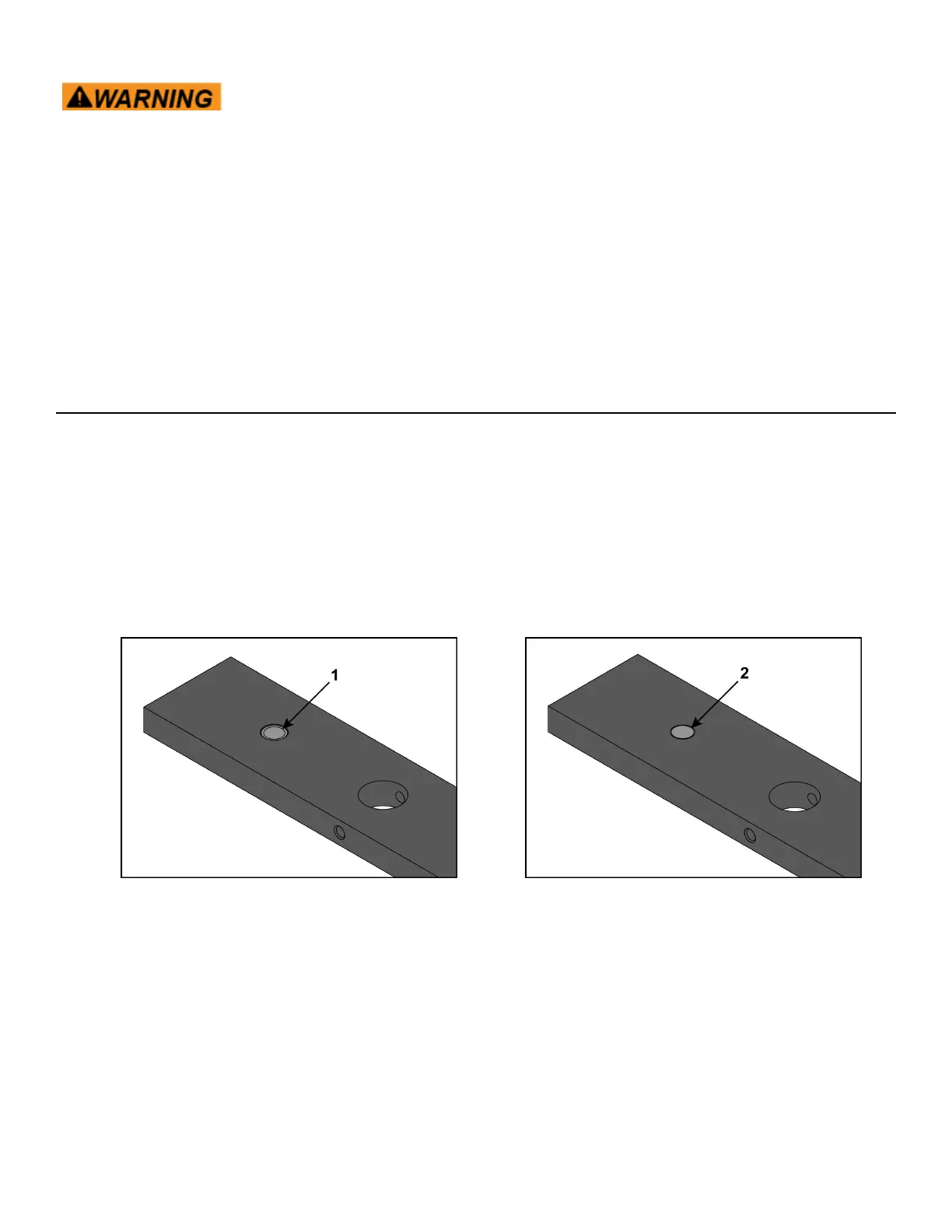

4. Install each weight plate, one at a time, so wide edge of bushing faces upward (1) and narrow edge
of bushing (2) faces downward.
Incorrect: Narrow bushing edge downward.Correct: Wide bushing edge upward
5. Install lifting post.
6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod
cap down guide rod until cap is clear of guide rod plate and install. Repeat for opposite side.
Page 10 of 21
VR3 Lat Pull Part Number 12130-999-4 T
