Yearly Procedures
Replace all cables and belts annually
Belt Adjustment
Tools Required
• 7/32" Wrench
• Torque wrench
1. Loosen set screws using a 7/32" Allen wrench.

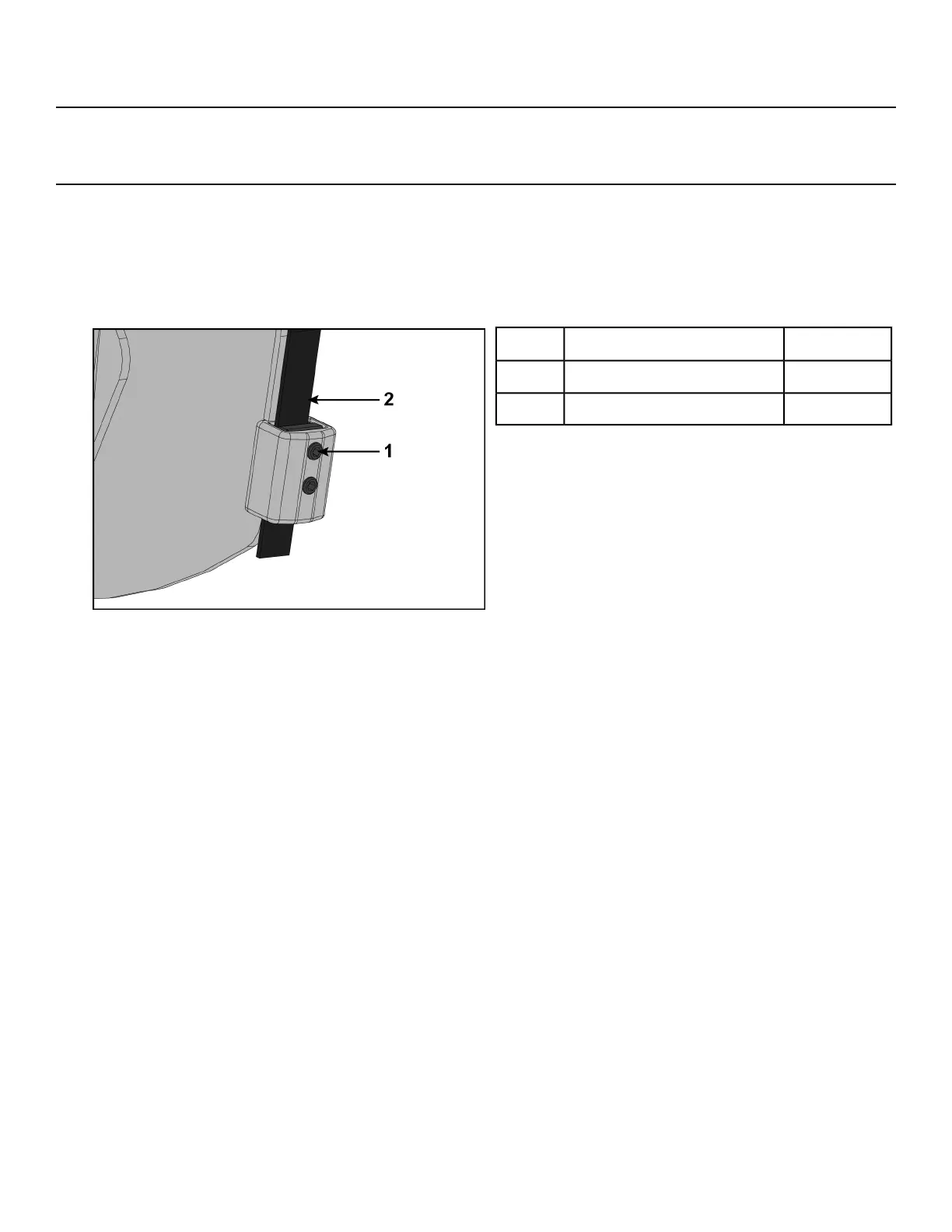

QtyDescription
2Set screw1
1Belt2
2. Pull belt tight.
3. Secure belt in place with set screws.
4. Torque set screws to 300-350 lb-in.
5. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the top
weight belt clamp.
Page 18 of 21
