In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least 30 by
48 inches and be served by an accessible route for at least one of each type of exercise equipment. If
the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the clear space must
be 36 by 48 inches.
All other machines must have a clear floor space of 23” for all access point on the machine, unless
shown in the Owner’s Manual.

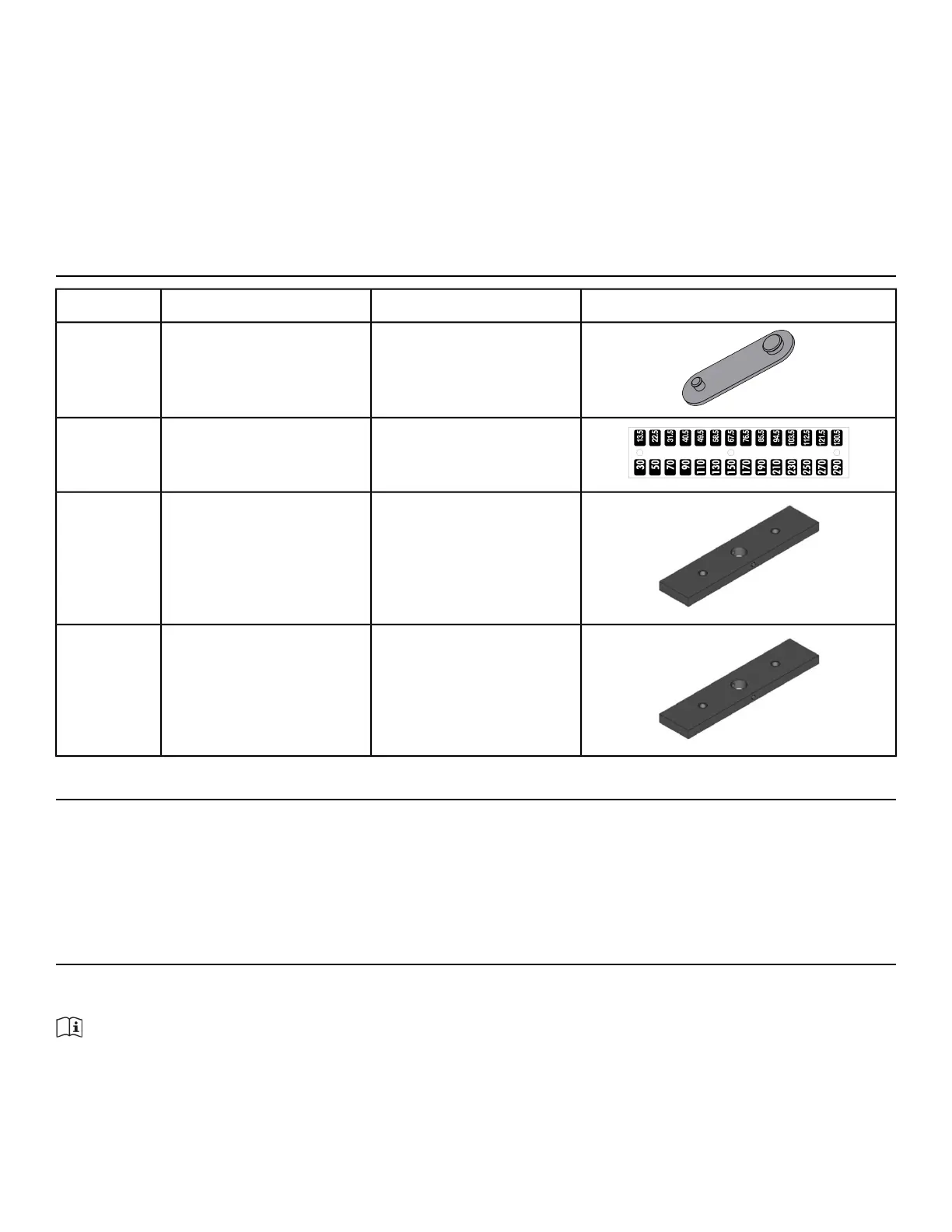

Verify parts list below
DiagramDescriptionPart NumberQty
Foot Pad12090-3224
Decal, Weight Plate (30-
290)
12000-5601
Weight Stack Plate
(Standard)
4000C10111
Weight Stack Plate
(Heavy)
4000C10114
Tools Required
• 7/32” Allen wrench
• 1/8” Allen wrench
• Medium weight automotive engine oil
• Torque wrench
• 3/4” Wrench
Assembly Procedure
Two people will be required for this procedure.
Read and understand all instructions thoroughly before assembling this unit. Check all items
carefully. If there is damage, see the Customer Service section of this manual for proper procedure
to return, replace, or reorder parts.
Page 8 of 21
VR3 Lat Pull Part Number 12130-999-4 T
