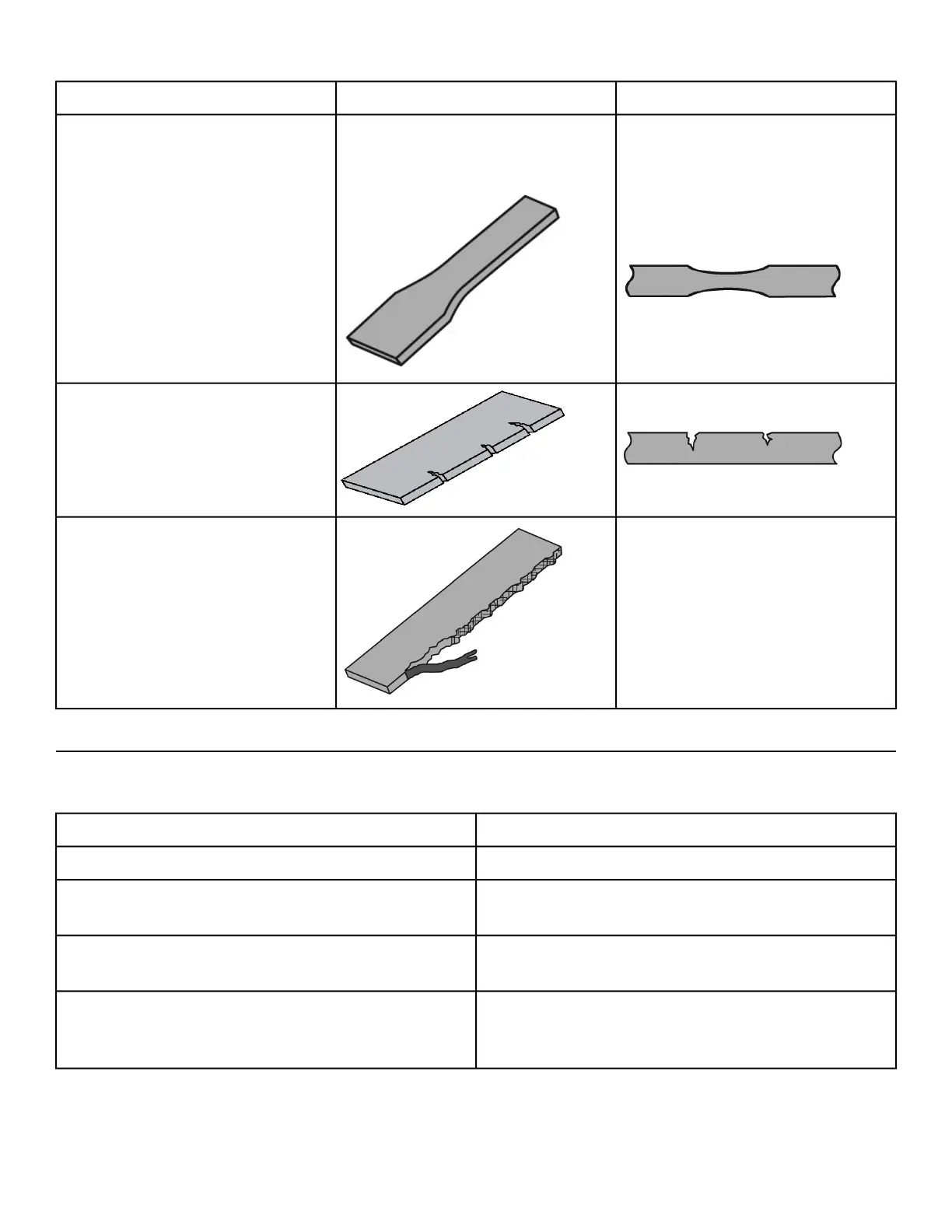

3D or Side View3D ViewCondition of Belt
Examine edge of belt (both sides).
Replace belt if any section is nar-
rower than the rest.
Replace belt if any section is over
1/32” (.03) narrower than the rest
of belt
Belt is necked down (narrow sec-
tion)
Cracks or splits
One or more strands of belt is
hanging out, or if there is a signif-
icant amount of frayed belt.
Inspect Other Items
Inspect other items for proper operation, damage, or wear.
ActionInspection
Replace all loose or worn grips immediately.Inspect grips for looseness or wear.
Replace all worn labeling immediately.
Inspect all labeling for readability, including instruc-
tional placards, warning and caution decals.
Correct all improper alignment and operation issues
immediately.
Inspect all weight stacks for proper alignment and
operation.
Wipe Weight Stack Guide Rods clean over entire
length. Lubricate with a light coat of medium weight
automotive engine oil.
Inspect guide rods for lubrication.
