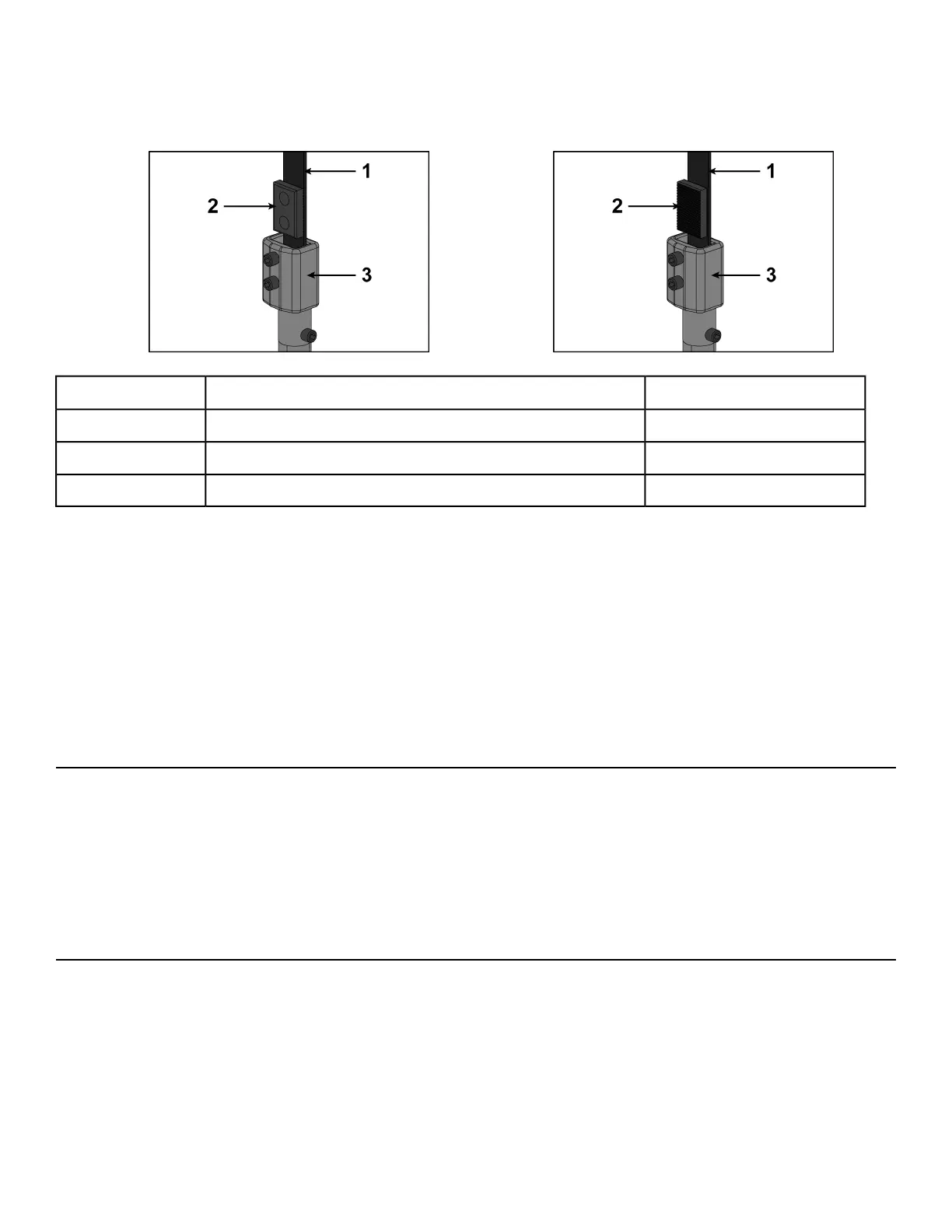

4. Verify belt and insert are installed properly. Do not install the insert backwards.
Incorrect belt routingCorrect belt routing
Qty.Description
1Belt1
1Insert2
1Belt clamp3
5. Pull belt tight and secure belt to clamp with set screws.
6. Torque set screws 300-350 lb-in.
7. Turn the Increment Weight Adjusting Knob to select 0 lbs or 0 kg.
8. Place weight stack pin in each plate to verify proper installation.
9. Simulate normal operation by lifting top weight up and down without selecting any resistance.
10. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the top
weight belt clamp.
Install back shroud
1. Place shroud into position.
2. Starting at the bottom replace the two BHSCS to secure bottom support bracket to the shroud.
3. Install but do not tighten remaining BHSCS securing shroud.
4. Tighten all BHSCS.
Verify proper operation
Page 12 of 21
VR3 Lat Pull Part Number 12130-999-4 T
