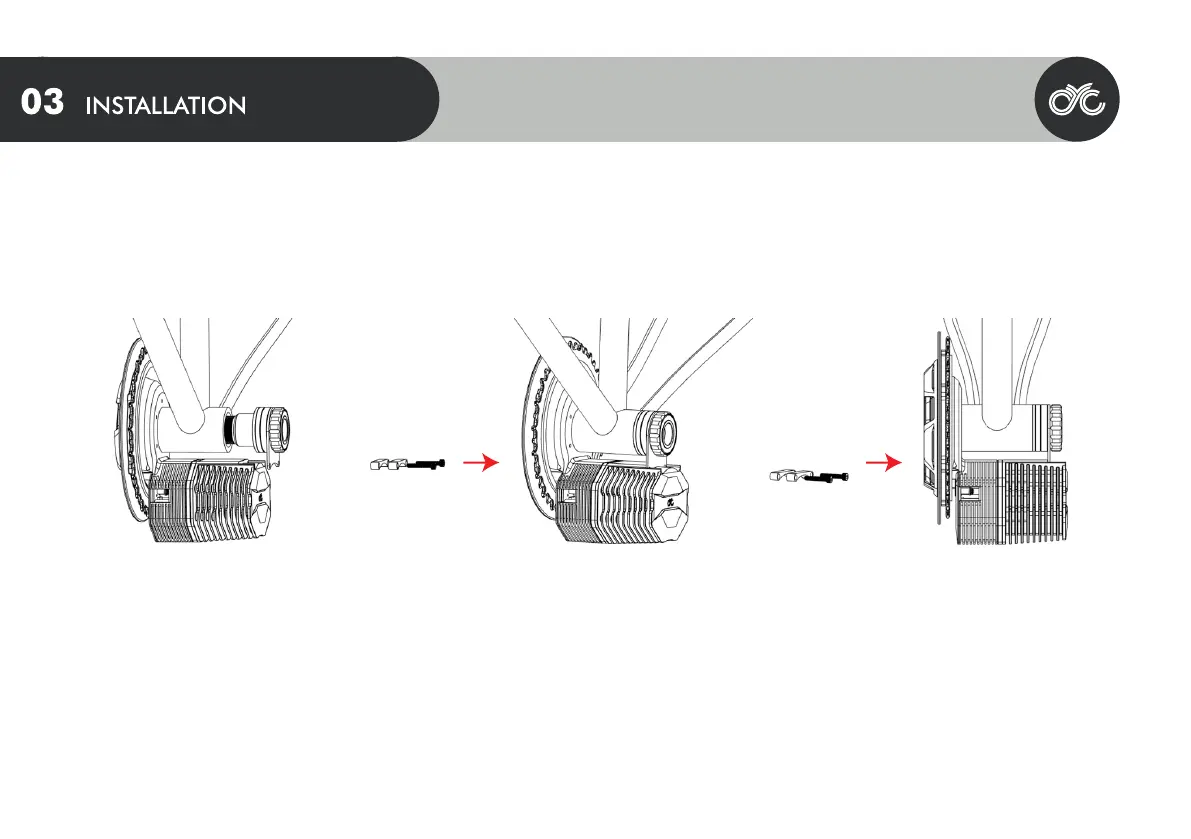

▪ When inserting the left BB cup with spacers, please ensure that the A-frame support is added to the left BB cup rst so that it sits
against the tool side of the BB cup. Then place the A-frame in the cutout of the motor housing while inserting the left BB cup into the
bottom bracket. Tighten by hand only. If done correctly, the A-frame support should be ush with the cutout of the motor body.
17
Assembly Instruction
