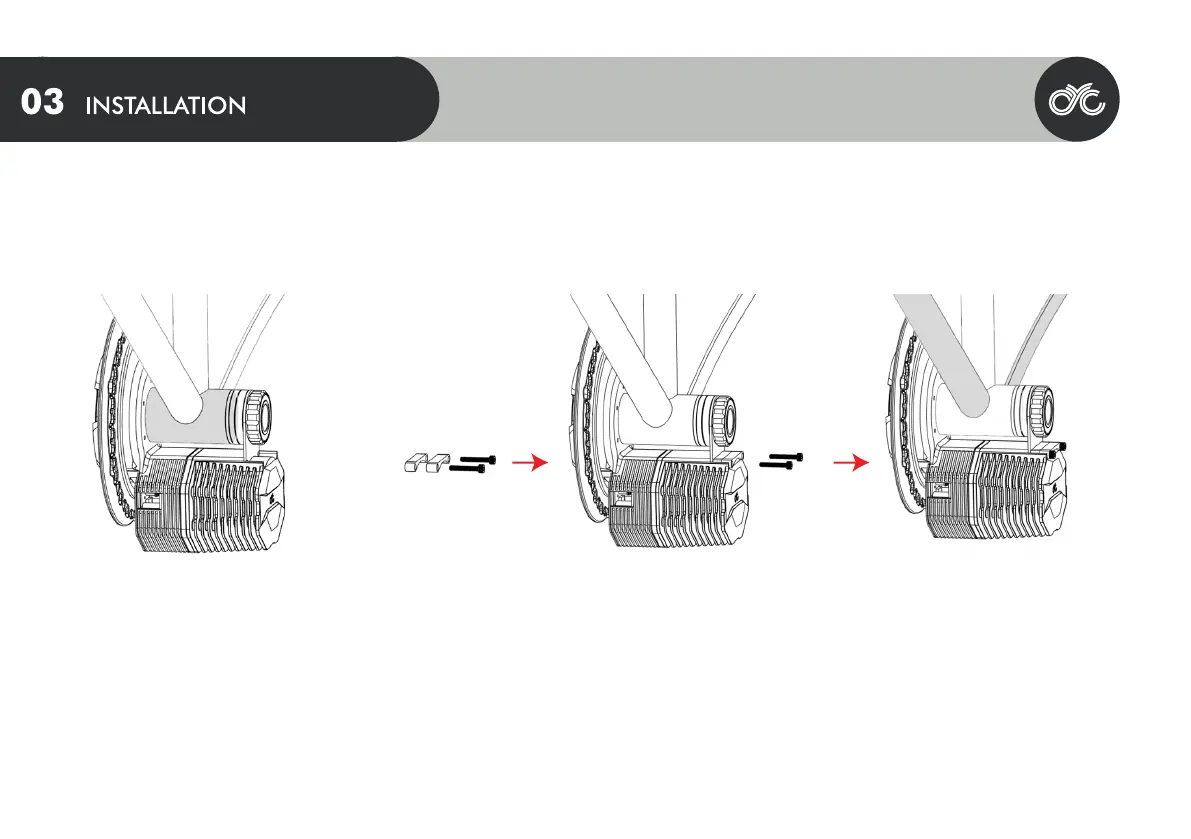

▪ Place the 8mm & 9mm spacers in the remaining open space of the motor cover and thread the two M4 screws through them and into
the body. Securely tighten these screws.
18
Assembly Instruction
