DS103 DISPLAY GUIDE
06
42

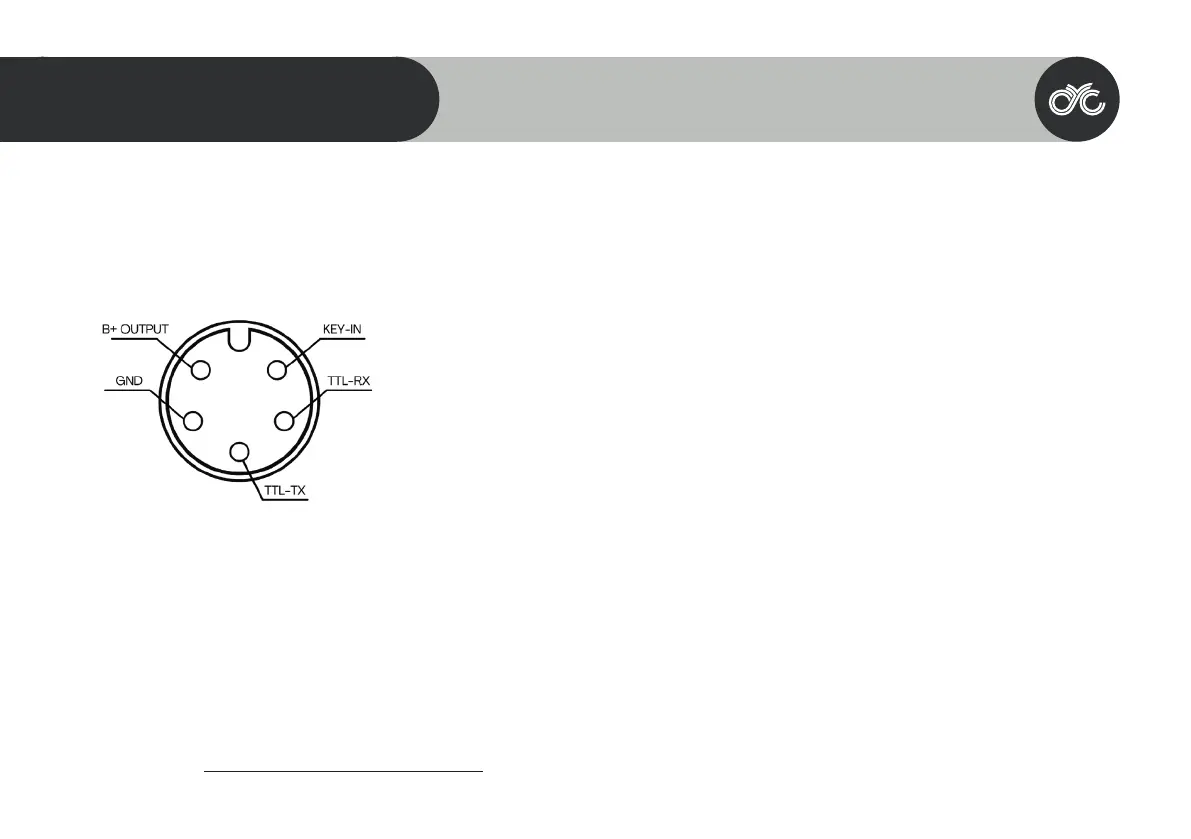

Pin Layout
1. Red wire: Anode (36V to 72V)
2. Black wire: GND
3. Yellow wire: TxD (display -> controller)
4. Green wire: RxD (controller -> display)
5. Blue wire: Power ord to the controller
Cerication
CE / IP65 (waterproof) / ROHS.
Be sure to contact techinical_support@cycmotor.com if further assitance is needed.
Thank you!
Male 5-Pin Connector
