14. Bluetooth RF Specifications
Unless otherwise stated, limit values apply for the conditions specified in Table 24, “Environmental Ratings,” and Table 26, “Recom-
mended Operating Conditions and DC Characteristics,”. Typical values apply for the following conditions:
■ VBAT = 3.6V
■ Ambient temperature +25°C

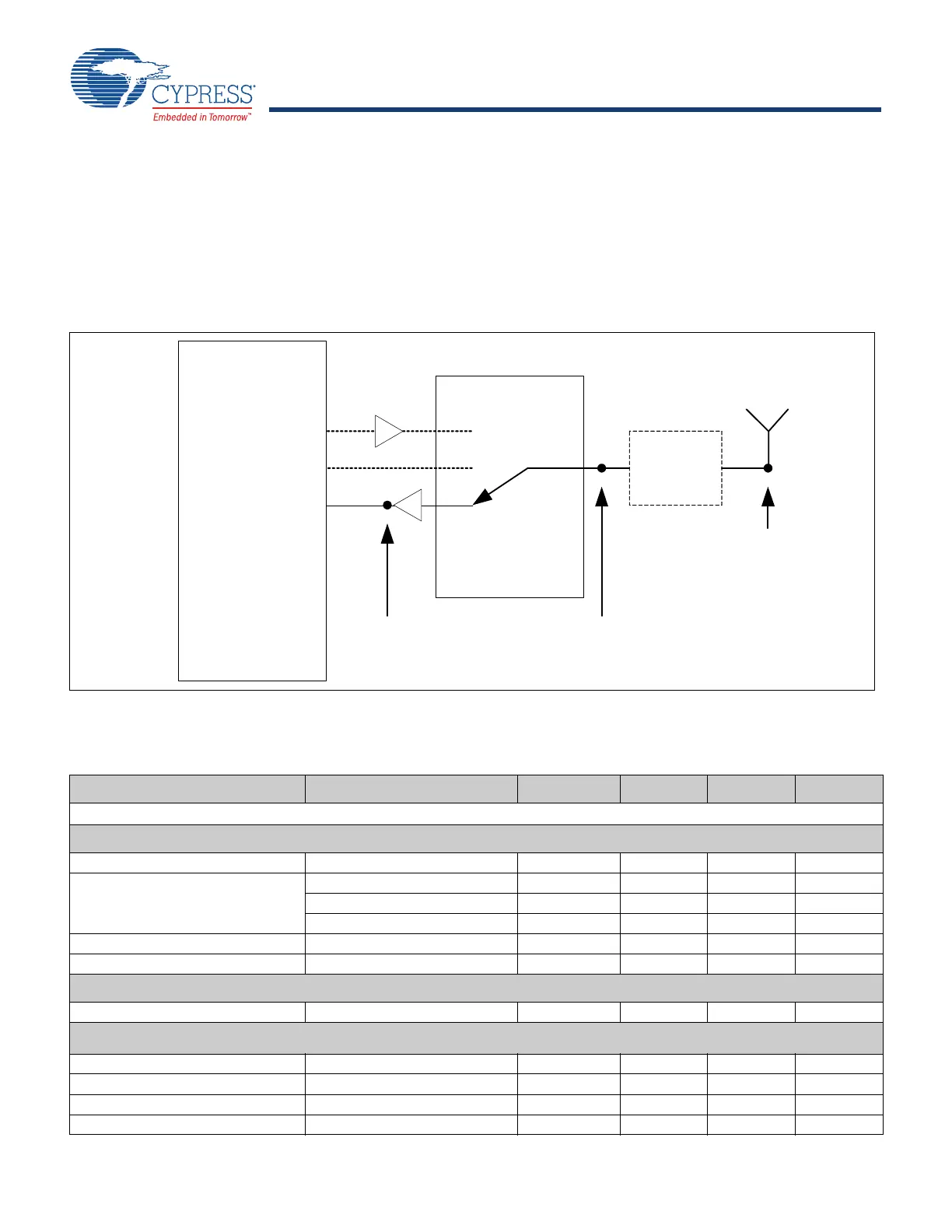

Figure 30. Port Locations for Bluetooth Testing
Note: All Bluetooth specifications are measured at the chip port unless otherwise specified.
Table 27. Bluetooth Receiver RF Specifications
Parameter Conditions Minimum Typical Maximum Unit
Note: The specifications in this table are measured at the chip port output unless otherwise specified.
General
Frequency range – 2402 – 2480 MHz
RX sensitivity GFSK, 0.1% BER, 1 Mbps – –93.5 – dBm
/4–DQPSK, 0.01% BER, 2 Mbps – –95.5 – dBm
8–DPSK, 0.01% BER, 3 Mbps – –89.5 – dBm
Input IP3 – –16 – – dBm
Maximum input at antenna – – – –20 dBm
RX LO Leakage
2.4 GHz band – – –90.0 –80.0 dBm
Interference Performance
1
C/I co-channel GFSK, 0.1% BER – 8 – dB
C/I 1-MHz adjacent channel GFSK, 0.1% BER – –7 – dB
C/I 2-MHz adjacent channel GFSK, 0.1% BER – –38 – dB
C/I  3-MHz adjacent channel GFSK, 0.1% BER – –56 – dB
Filter
CYW43353
RFSwitch
(0.5dBtypicalinsertionloss)
Antenna
Port
RFPort
WLANTx
BTTx
WLAN/BTRx
Chip
Port
