WPT: RF Validation Methods (3 of 4)

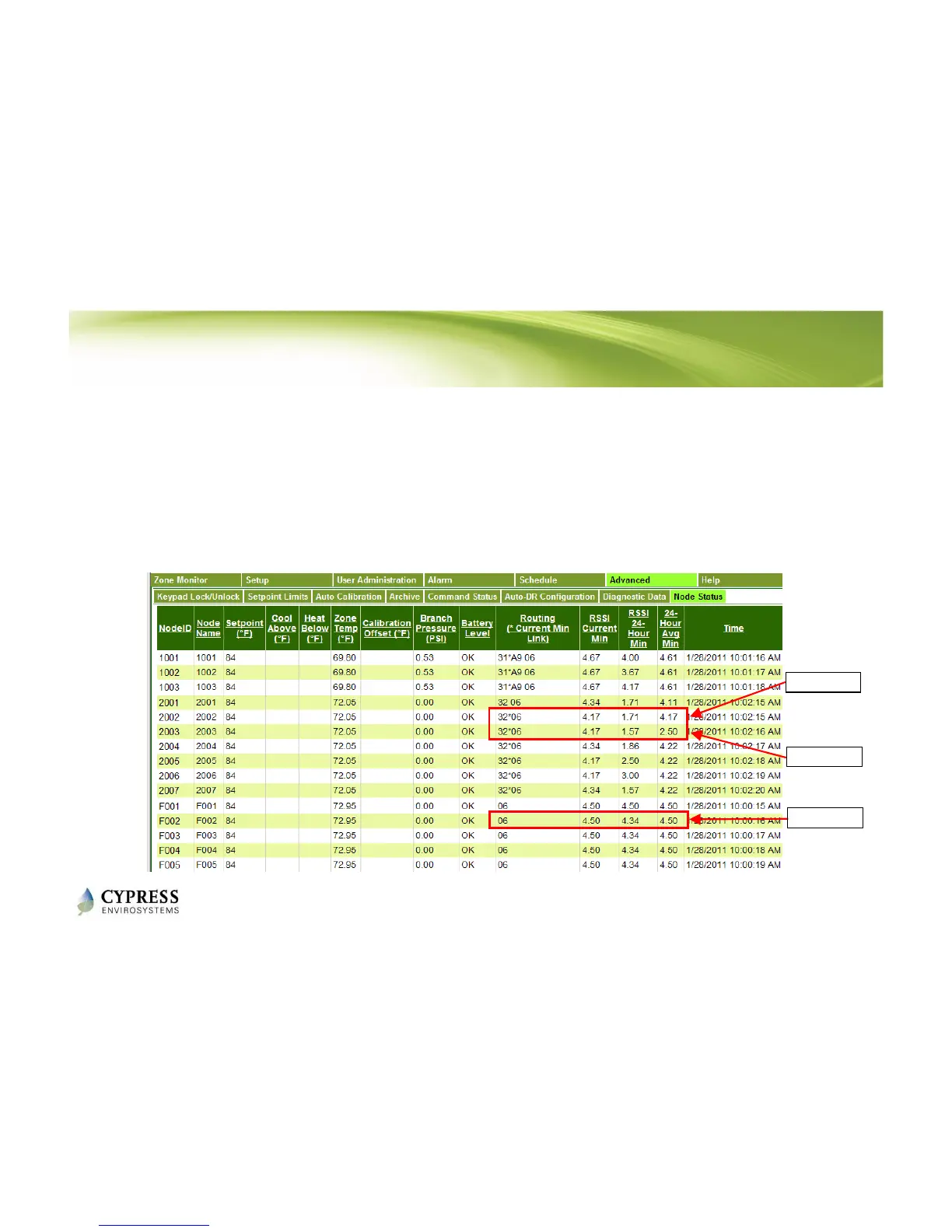

Node Status Page – Latest WPT Data Packets
• Verify number of WPTs per RWAL or Hub <= 15
• Verify RSSI
- Current Min – Weakest link of latest packet, Hop Identified “*”
- 24-Hour Min – Lowest RSSI over last 24-hours, Hop Unknown
- 24-Hour Avg Min – Average RSSI of the Weakest Link over 24-hours
OK Link
Strong Link
Weak Link
