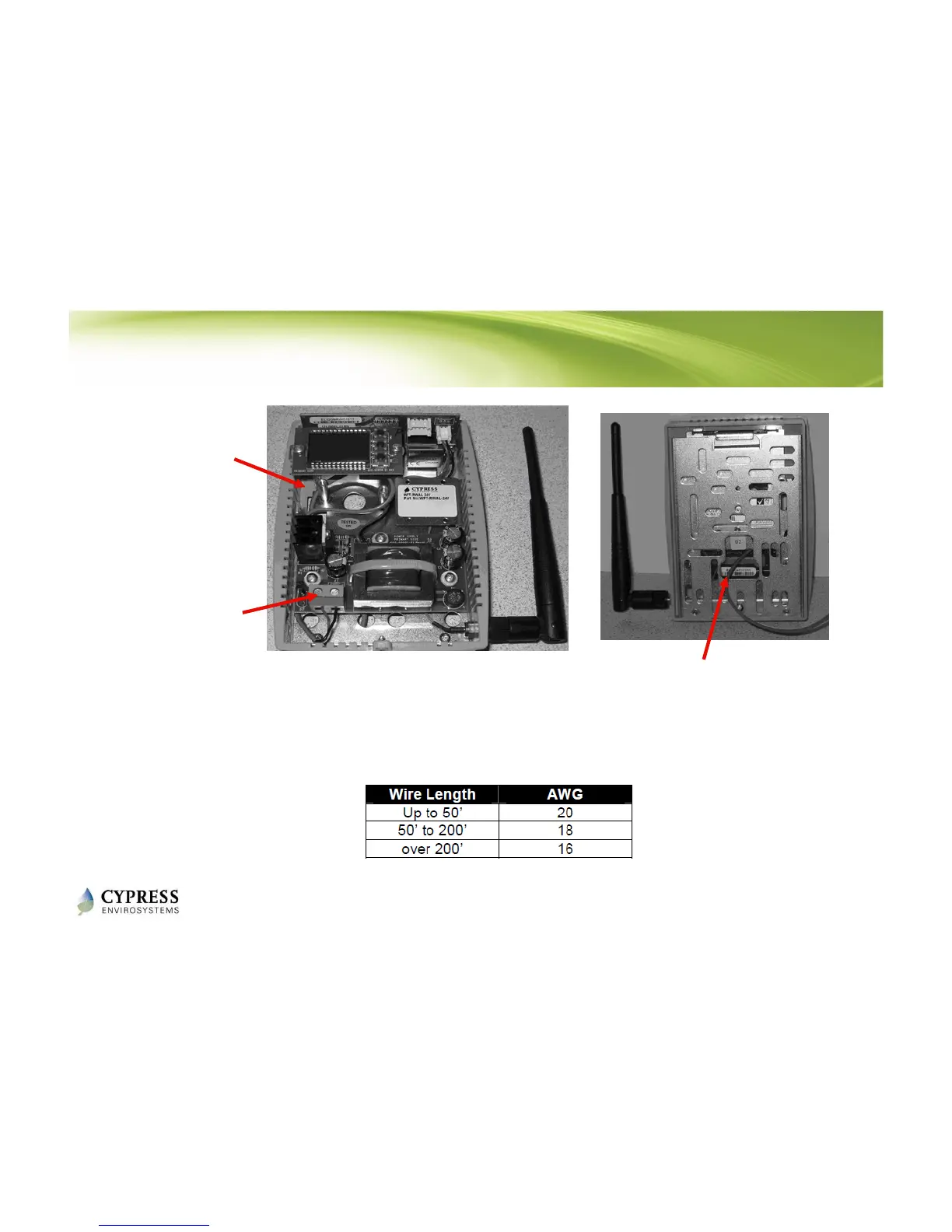

24V Powered Repeater (RWAL 24V)
Route cable
service loop to
provide strain
relief
Non-polarity
sensitive
connector
Route cable through mounting
bracket
24Vac multi-drop wire length table
Recommendation: Budget 5VA for each RWAL with daisy chained power
