Cyrus Pre - Installation - Unit Connection; Connecting the Unit

INSTALLATION Cyrus Pre
English
4

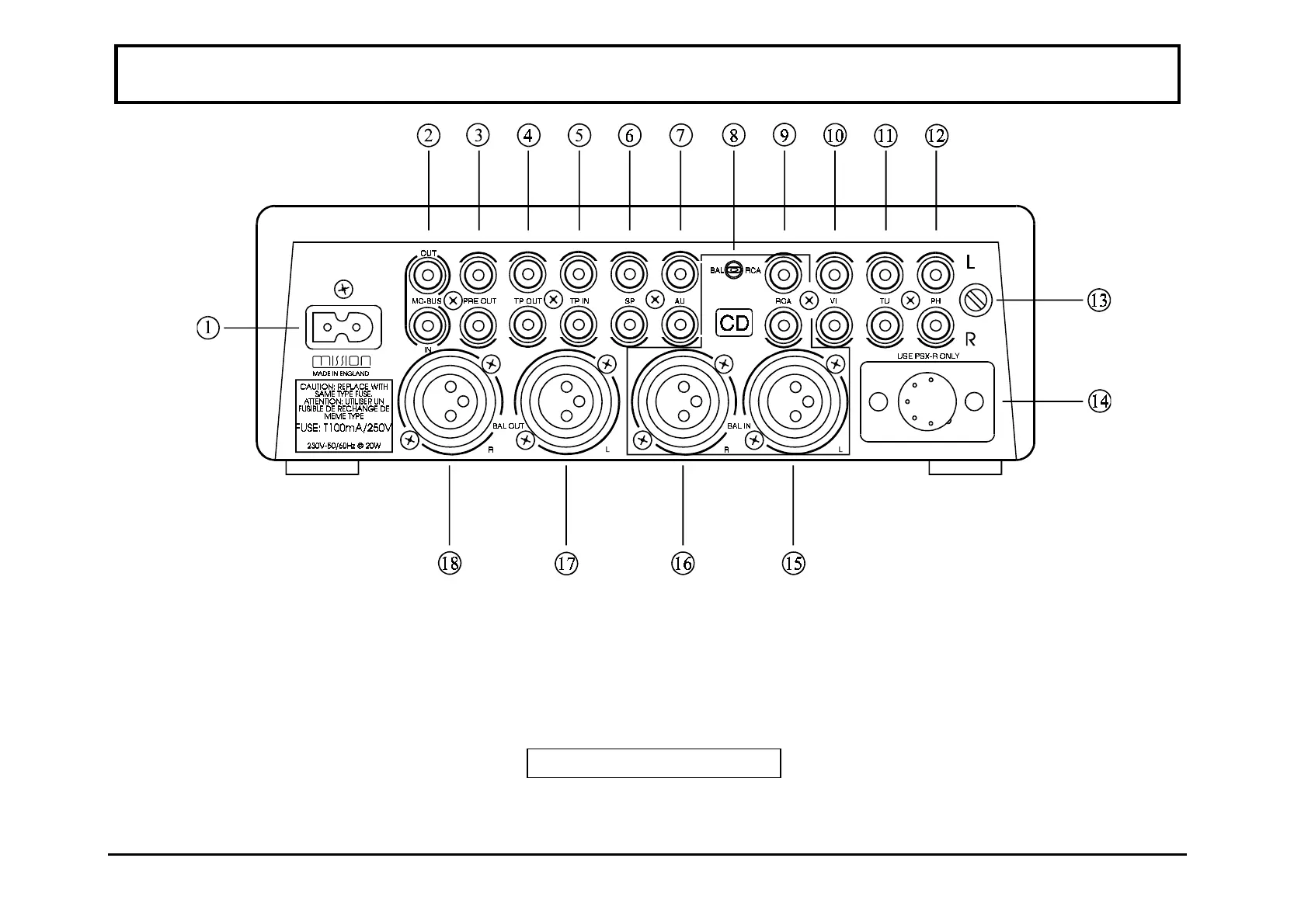

Fig.1 Pre-amplifier (rear view)
1. Power inlet
2. MC-Bus System Connection
3. Output to Power Amplifier (RCA)
4. Tape Record Output
5. Tape Input
6. Spare Input
7. Aux Input
8. RCA/BAL Selector Switch for CD Input
9. CD Input (RCA)
10. Video Input
11. Tuner Input
12. Phono Input
13. Turntable Ground
14. PSX-R Connection
15. CD Input (Balanced, Left)
16. CD Input (Balanced, Right)
17. Output to Power Amplifier (BAL, Left)
18. Output to Power Amplifier (BAL, Right)
