D.A.C.E Compact 300 User Manual

16

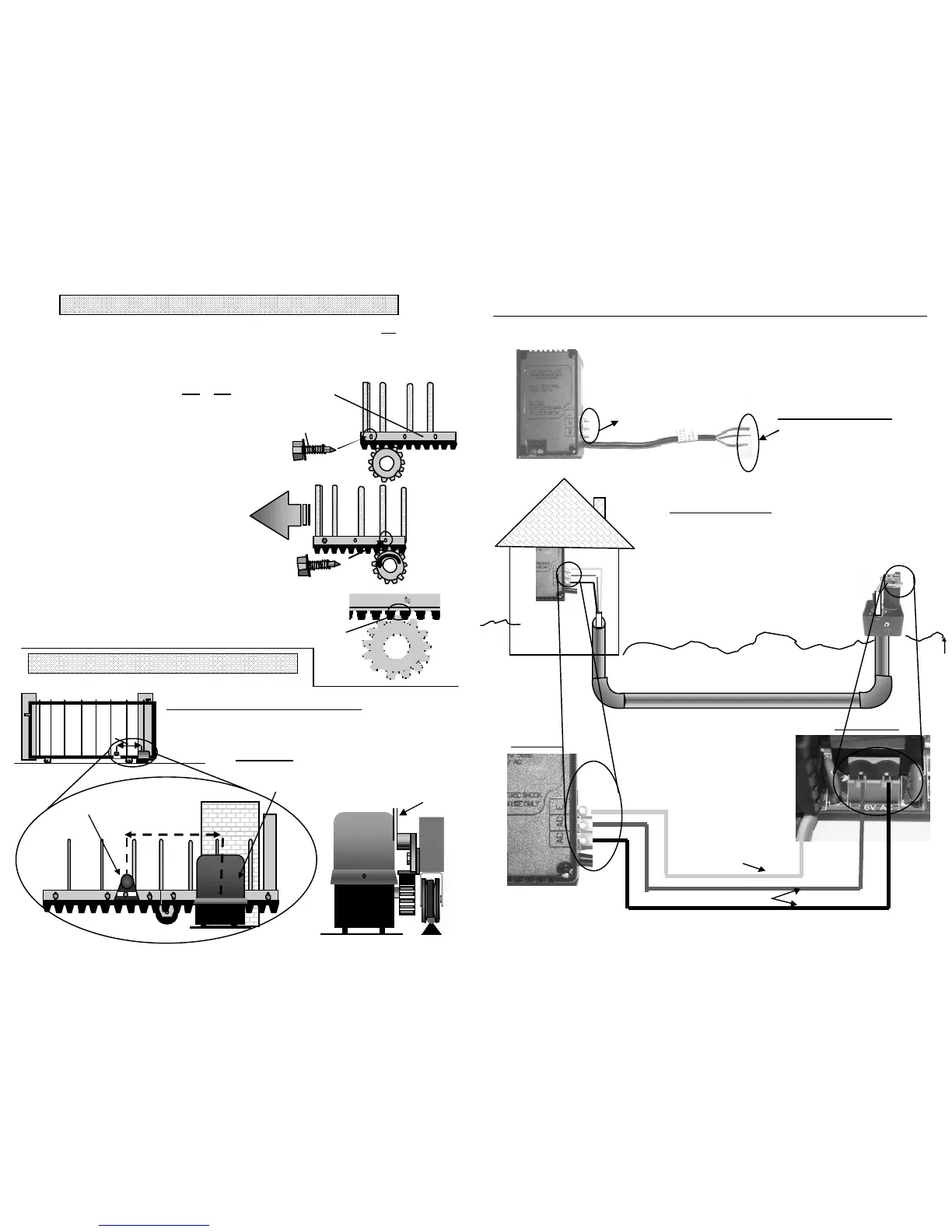

MOUNTING THE RACK
The rack is attached to the gate using the TEK screws supplied. It is recomm ended that the rack is not welded to the gate
as this prevents any adjustment at a later stage. The rack must mesh with the pinion gear throughout the complete length
of the gate.
A 2mm gap between the pinion gear and the rack should be set. This avoids any tight spots.
To mount the rack, com plete the following steps.
1. Open the gate manually . The gate must be fully open.
2. Place a length of rack on the pinion.
3. Insert the first TEK screw.
4. Roll the gate to the next mounting hole and
insert the next TEK screw.
5. Repeat step 4 until the complete length of
rack is attached to the gate. The rack may need to be cut
if any section is protruding from the end of the gate.
It is important to ensure that the rack stay s in full contact
with the pinion gear at all times during mounting
When the process is complete and the rack is attached securely to
the gate, the m otor must be adj usted to allow a 2mm gap between
the pinion gear and the rack. The best way of doing this is by
dropping the m otor 2mm on the bolts. Push the gate open
and closed by hand to ensure that the rack is adjusted
correctly . Check that the rack is not too tight or too
loose on the pinion gear. If it is found to be loose
or tight, the rack m ust be adjusted accordingly . Failure to do this
may result in incorrect operation of the gate.
2mm gap
RACK
TEK screw
MOUNTING THE MAGNET (COMPACT 500 ONLY)
Measure 700- 800mm from the motor and
mount the magnet. This m ust be done
with the gate in the closed position.
700MM
Maximum gap between the magnet
and the m otor m ust be 3mm. If the
gap is not correct, place washers
behind the magnet. 3mm
Move the gate by hand until the next mounting hole is above
the pinion and then insert next screw.
Gate motor
700-800MM
Do not invert the magnet.
Do not install the m agnet if positive close is required.
13
Transformer
Main P.C.Board
ELECTRICAL SHOCK MAY OCCUR. PLEASE TAKE EXTREME CARE WHEN WIRING THE TRANSFORMER
DANG ER HIGH VOLTAGE
220 V/AC IN-PUT
From mains supply
16 V/AC OUT-PUT
To P.C.Board
COMPACT 500 WIRING
EARTH
16 VOLTS AC
