D.A.C.E SOLO - Connecting a Solar Panel P25

25
CONNECTING A SOLAR PANEL
16 VAC connector
from transformer
SOLAR PANEL
(min 20 Watts)
A REGULATOR IS NOT
REQUIRED WHEN
CONNECTING A SOLAR
PANEL
Negative wire
(-)
Positive wire
(+)

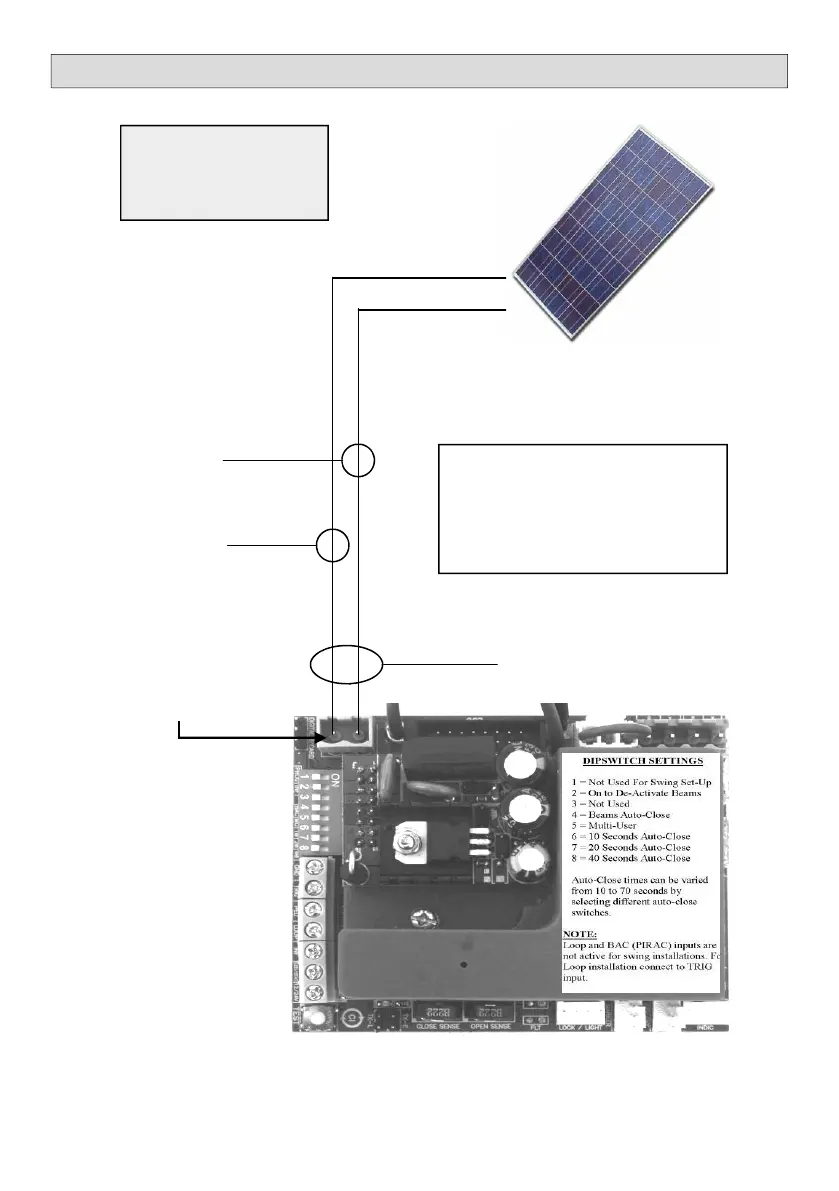

Connect the solar panel wires
to the 16 VAC plug on the
main PC Board.
(Wire polarity is not important)
Solar Panel Specifications:
• Min output voltage 16.5 VDC
• Max output voltage 21 VDC
(an output voltage below 16.5 VDC will
not charge the internal battery).
An external regulator is NOT required when connecting
a solar panel. Ensure that the panel does NOT exceed
the min and max specifications.
