LED INDICATIONS ON MAIN PC BOARD
STATUS LED .
ON: gate open or in motion.
OFF : mains power off
FLASHING: this LED will flash once every 2 seconds when the gate is closed and the
mains power is on.
OPEN LED
ON: gate open.
CLOSED LED
ON: gate closed.
12V LED
ON: 12V output fuse ok.
OFF: 12V output fault.
INF LED
ON: infrared beams circuit is ok.
OFF: beams obstructed or faulty
TRIG LED
This LED should be off at all times and will flash when receiving a trigger.
ON: permanent on indicates trigger fault
OFF: normal
PED LED
T
his LED should be off at all times and will flash when receiving a pedestrian trigger.
ON: permanent on indicates pedestrian trigger fault
OFF: normal
LOOP LED
ON: vehicle parked on ground loop
OFF: normal
REV
This LED will flash when receiving a pulse from the rev counter when gate is in
motion. If the LED does not flash when in motion this will indicate a faulty rev counter.
LOW BATT
This LED will flash indicating a low battery.

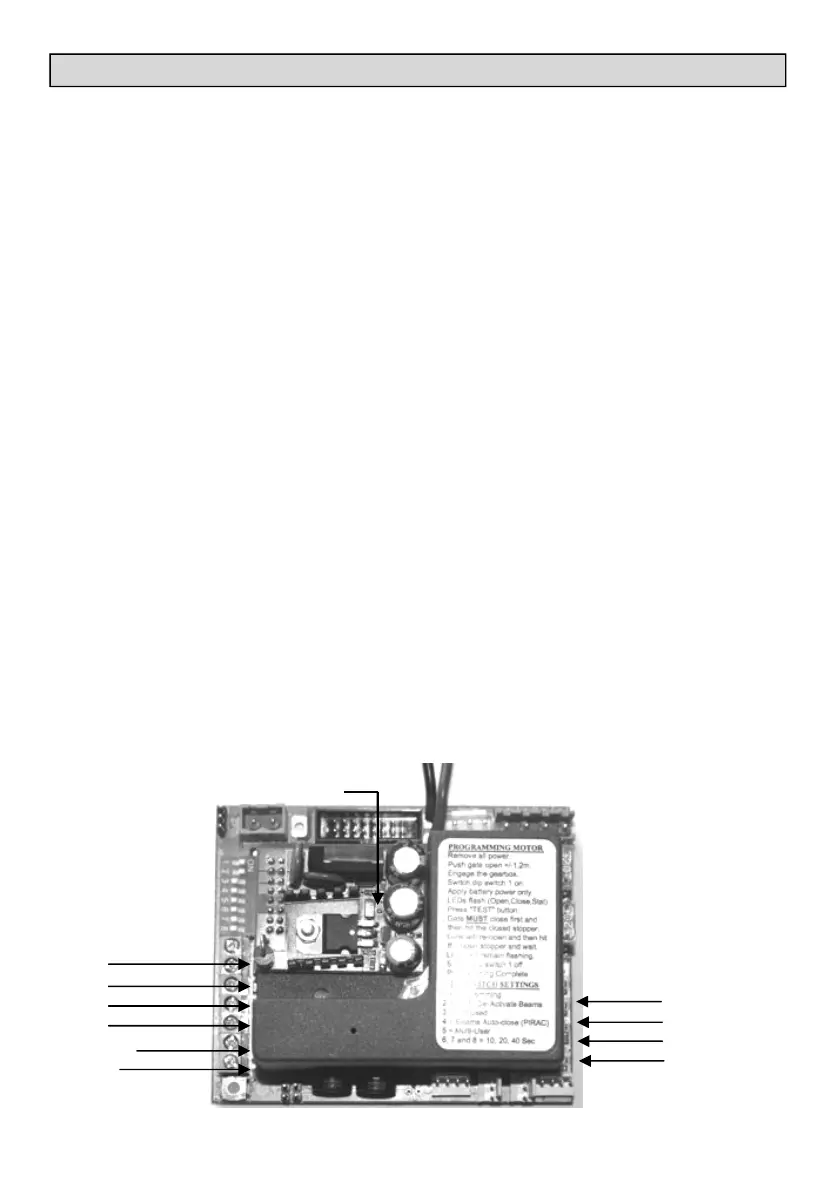

LED LAYOUT
CHARGE
TRIG
PED
LOOP
12/24V
INF
LED/STAT
OPEN
CLOSED
REV
LOW BATT
To Next Page
