Manual del Usuario / D series amplifiers/ User’s Manual
1: Input XLR sockets: Connect signal inputs to these sockets, wired pin 2 hot, 3 cold, 1 ground. For
sensitivity and impedance of these inputs, please see the specifications on page 11. When running in
bridged (mono) mode, only input A is used (except D-100).
2: D-10 & D-20
Channel A output Speakon socket: Normal output is on pins 1+ hot, 1- cold. Channel B's output is also
wired to this socket to enable a single NL4 to provide both channels and to facilitate easier wiring in bridged
mode. Channel B is wired pins 2+ hot, 2- cold. Channel B output Speakon socket: Normal output is on
pins 1+ hot, 1- cold.
D-100
Channel A output Speakon socket: Normal output is on pins 1+ hot, 1- cold. Channel B's output is also
wired to this socket to enable a single NL4 to provide both channels and to facilitate easier wiring in bridged
mode. Channel B is wired pins 2+ hot, 2- cold. Similarly channel C's output Speakon socket carries Channel
D's output. Check the table on the rear panel for details.
3: D-10 & D-20
Bridged (Mono) switch: Depress this switch to run the amplifier in bridged mode. Note that the output must
be taken from channel A's output Speakon connector, on pins 2+ hot, 1- cold.
D-100
Bridged (mono) switch (A+B): Press this switch to run this pair of amplifier channels in bridged mode. To run
C+D bridged, press the switch on the far left of the panel, beside channel D's input XLR.
4: Mains inlet (only D-10) & Power Cord.
5: Fan outlet: The variable speed fans suck air in through the front vents and out through the back of the
amplifier.
6: Link out XLR sockets: These are passively connected directly to their respective inputs to allow for parallel
input connections to other amplifiers. As such, they will function even if the amplifier is turned off.
7: Mains Fuse (only D-10).
9

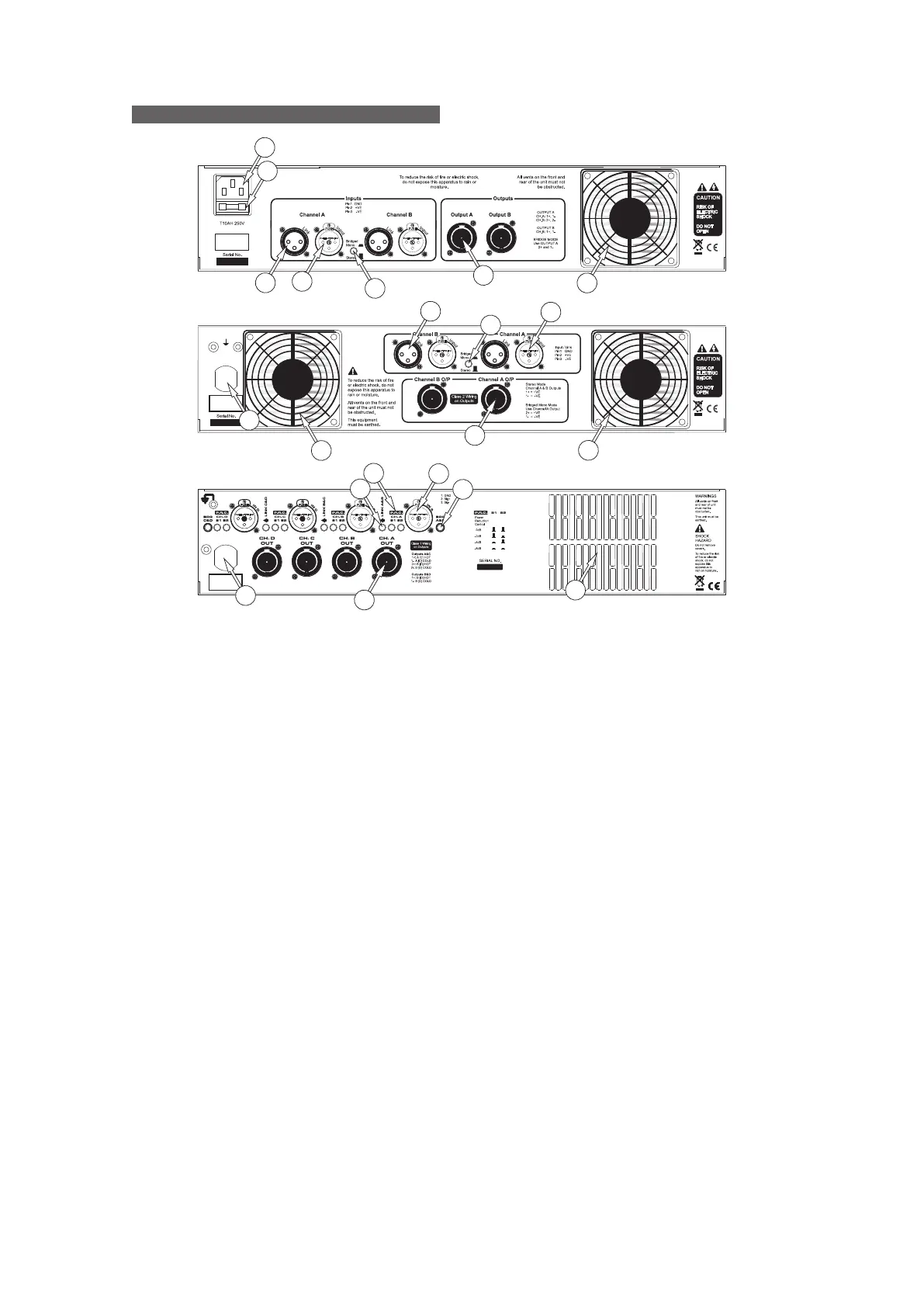

REAR PANEL
4
9
8
7
6
6
5
5
5
5
4
4
3
3
3
2
2
2
1
1
1
D-10
D-100
D-20
