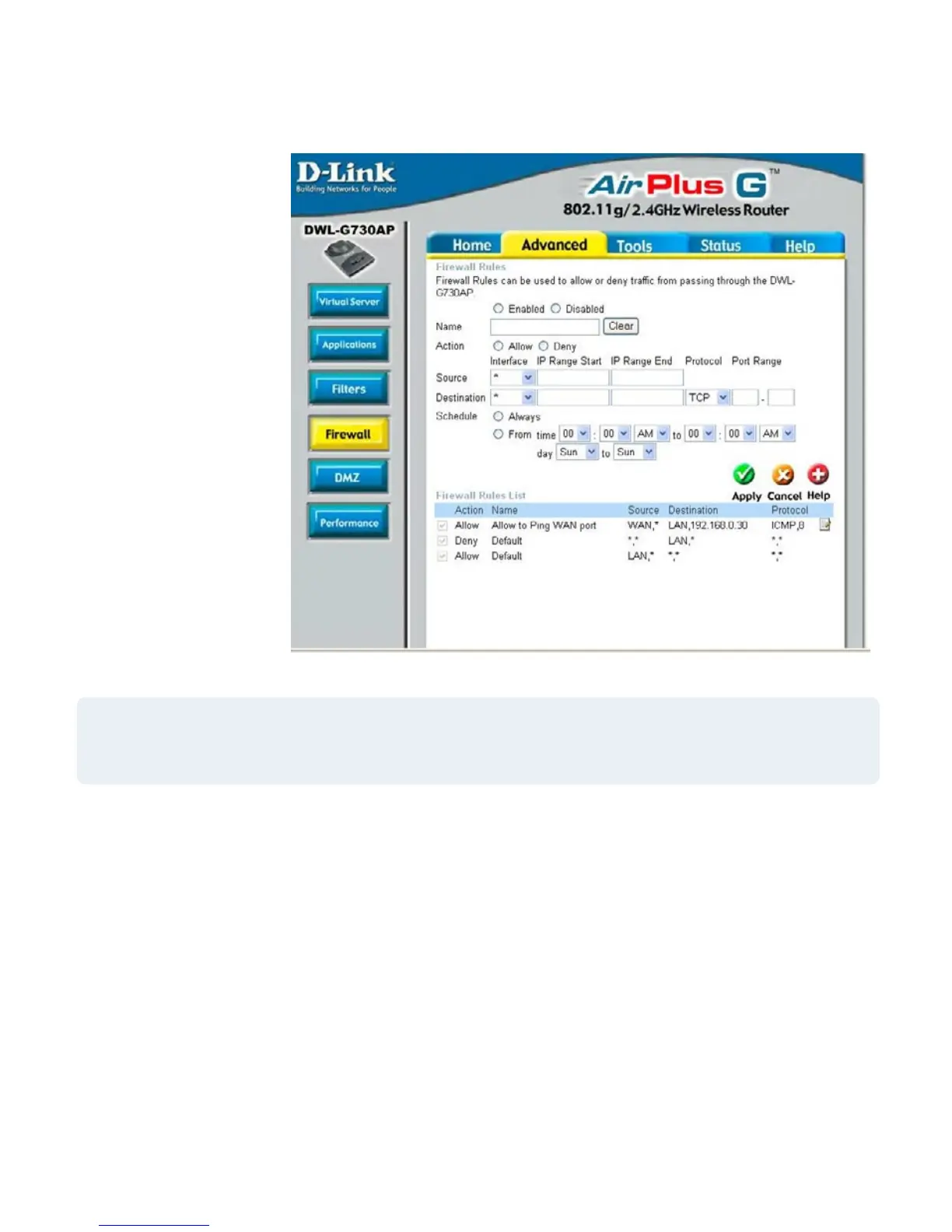

Using the Configuration Utility in Router Mode (continued)
Advanced > Firewall
Firewall Rules
is an advanced
feature used to
deny or allow
traffic from passing
through the DWL-
G730AP. It works
in the same way
as IP Filters with
additional settings.
You can create
more detailed
access rules for
the DWL-G730AP.
When virtual
services are created
and enabled, it
will also display
in Firewall Rules.
Firewall Rules
contain all network
firewall rules
pertaining to IP
(Internet Protocol).
Firewall Rules-
Enable or disable the Firewall
Name-
Enter the name
Action-
Allow or Deny
Source-
Enter the IP Address range
Schedule-
Select Always or enter the Time Range.
Destination-
Enter the IP Address range; the Protocol; and the Port
Range
Note:
The DWL-G730AP MAC Address filtering rules have precedence over
the Firewall Rules.
In the Firewall Rules List at the bottom of the screen,rules are prioritized from the top
(highest priority) to the bottom (lowest priority.)
