D-Link DAP-1665 Quick Install Guide

8 DAP-1665 Install Guide
Installation

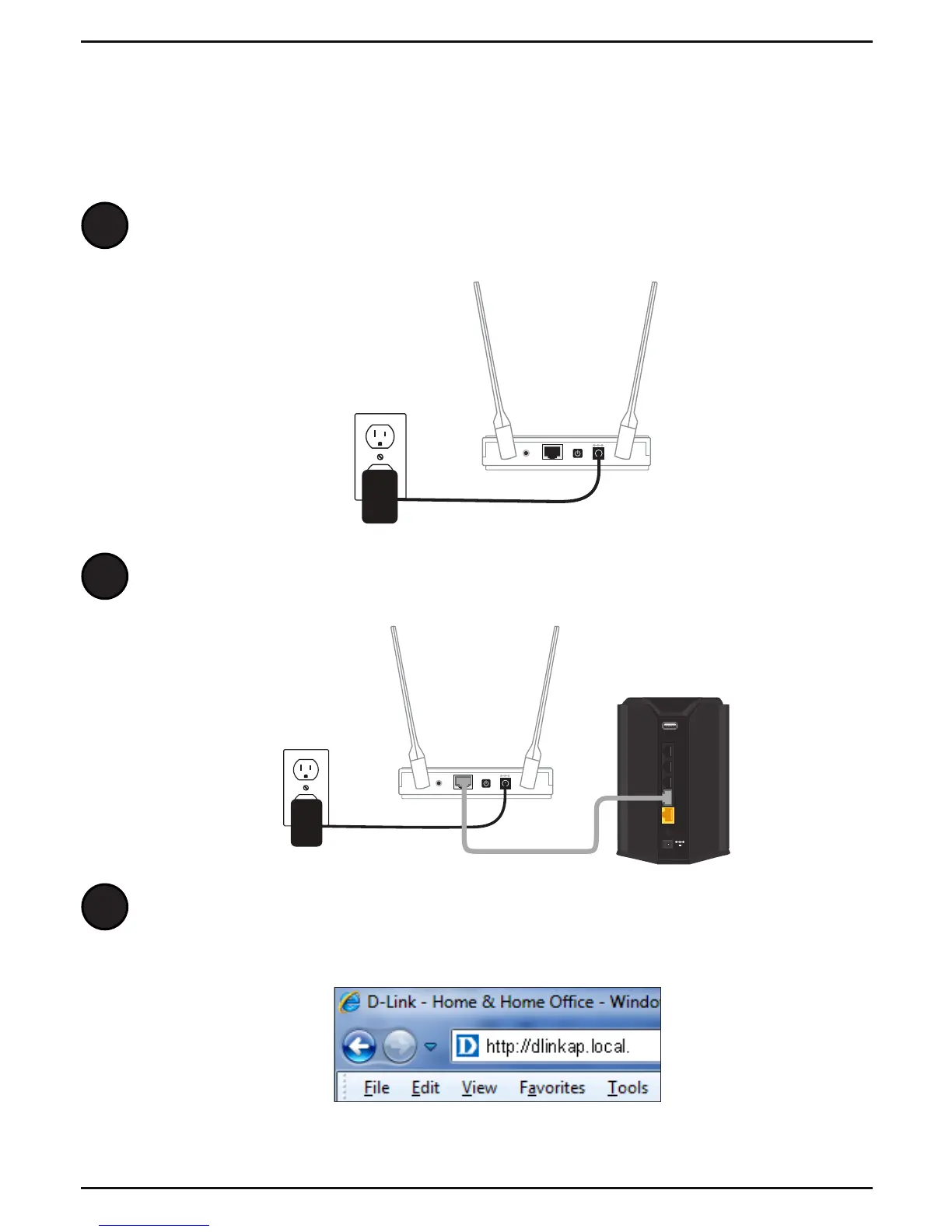

Plug the supplied power adapter into your DAP-1665 and connect it to the outlet or surge
protector. Press the Power button on the back of the device. Verify that the Power LED is lit.
RESET
LAN
5V 1A
1
3
Attach one end of the included Ethernet cable to the LAN port on the back of the DAP-1665, and
the other end into the Ethernet port on your wireless router.
RESET
LAN
5V
1A
12V
2A
USB
WPS
1
2
3
LAN
4
INTERNET
POWER
LAN
2
Access Point Mode
From the computer connected to your wireless router, open a web browser (e.g., Internet Explorer,
Firefox, Safari, or Chrome) and enter http://dlinkap.local./. Windows XP users can enter http://
dlinkap. Use the Setup Wizard to congure your AP.

D-Link DAP-1665 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835, 5.15 - 5.35, 5.47 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Internal	No
Certification	CE\\r FCC\\r TELEC\\r IC\\r Wi-Fi Certified\\r VCCI
Cable lock slot type	Kensington
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	2 dBi
Input current	1 A
AC input voltage	12 V
Power consumption (typical)	5.18 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	274 mm
Package width	208 mm
Package height	68 mm
Package weight	669.4 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1989 mm
Pallet gross weight (air)	333920 g
Quantity per pallet (air)	420 pc(s)
Shipping (inner) case width	360 mm
Shipping (inner) case height	309 mm
Shipping (inner) case length	441 mm
Shipping (inner) case weight	7510 g
Shipping (inner) case net weight	3480 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	10 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	108 mm
Width	147 mm
Height	27.8 mm
Weight	222 g
