11D-Link DAP-1950 User Manual
Section 2 - Installation
Assessing Uplink Signal Strength

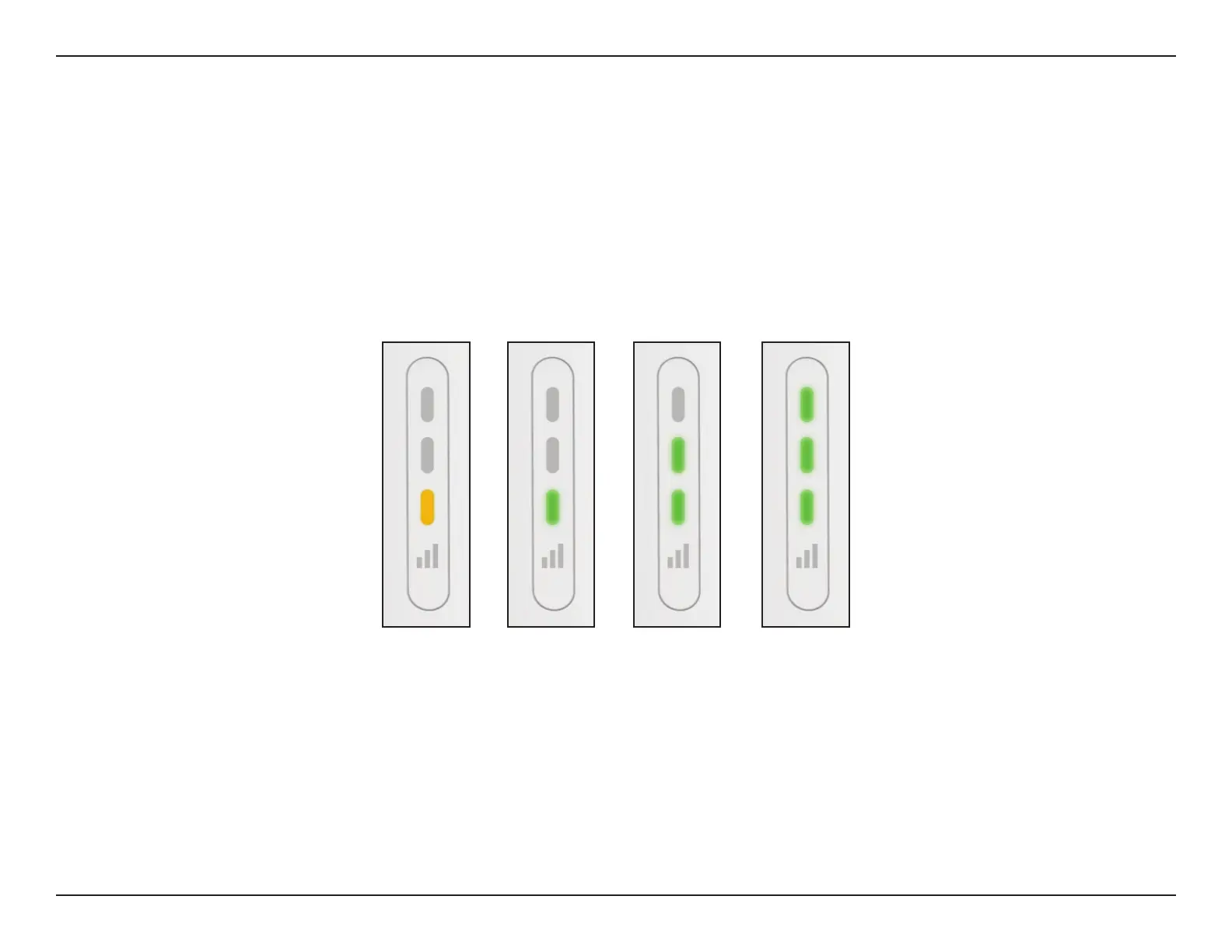

Poor Ok Good Best
The Status LED/WPS button will turn solid green when the DAP-1950 has connected successfully to a wireless network and is
extending that network. If the Signal Indicator LED has a single orange bar after the connection process has nished, the DAP-1950
has established a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal. To improve
the connection quality, the DAP-1950 should be relocated closer to the source wireless router. Using the 5 GHz extension network
is recommended in order to achieve the fastest wireless speeds. If the extender has been congured as an Access Point and is
connected via Ethernet cable to an uplink network, the Signal Indicator LED will not be lit.
