The Bit Rate is a little tricky. Setting it too high will use too much upload bandwidth, causing
failed uploads; setting it too low will affect the video quality. You can use our bandwidth
calculator to estimate the bandwidth. Visit www.cameraftp.com, click Pricing, and then

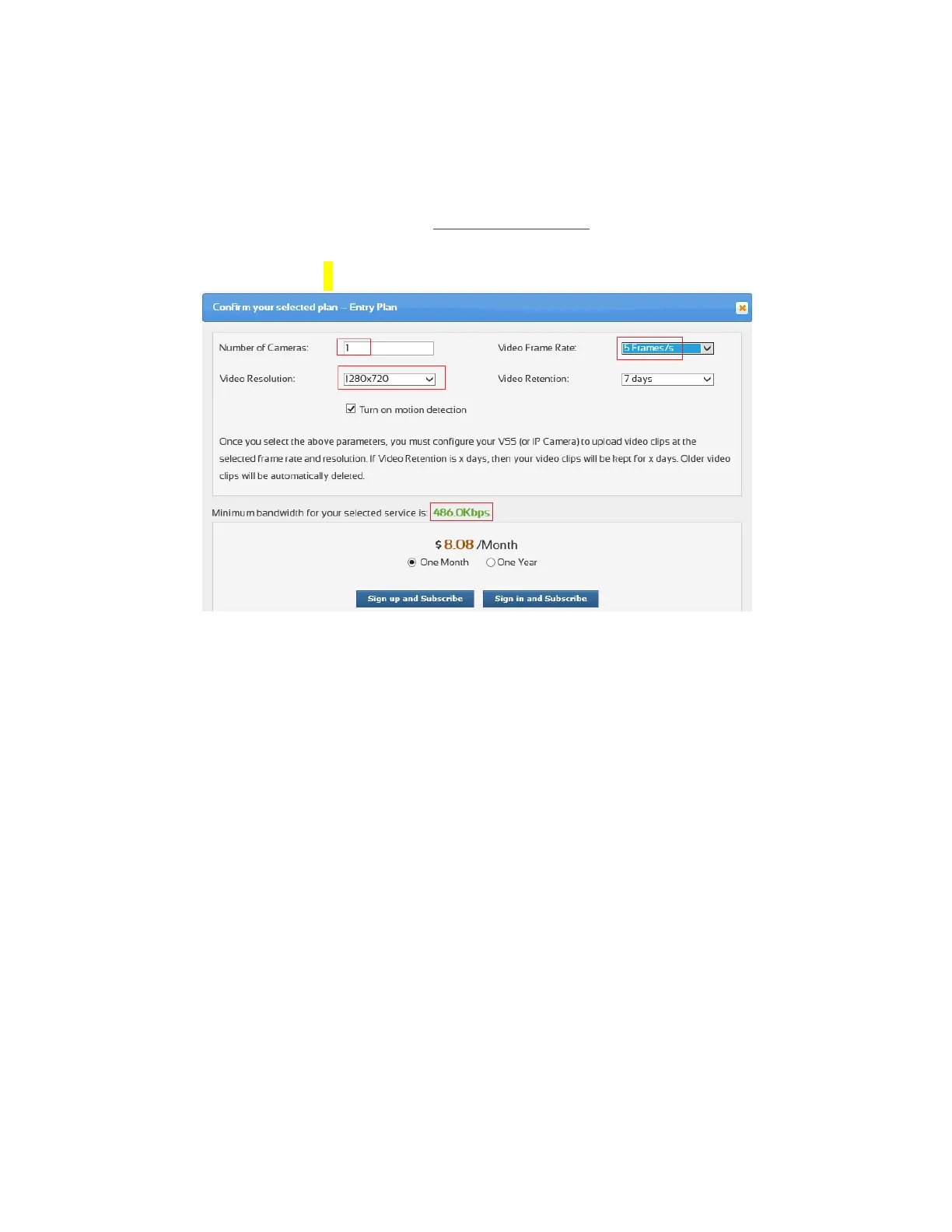

customize a service plan. See the screenshot below. (Note for estimating the bandwidth, Number
of Cameras should be set to 1.)
For the video plan of 1280x720, 5 frames/s, the estimated bandwidth is 486Kbps. So you can set
it to 512Kbps.
Click Save Settings (not to be confused with another Save button) to save the video profile.
Step 4. Configure Motion Detection Settings
If you ordered a plan with Motion Detection enabled, then you must configure Motion Detection.
Click Motion Detection as shown below. Check the "Enable Video Motion" checkbox. You can
draw a motion detection area and click Save Settings.

D-Link DCS-2132L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Field of view (FOV) angle	66 °
Sensor type	CMOS
Optical sensor size	1/4 \
Digital zoom	10 x
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	3.45 mm
Active tampering alarm	No
Video motion detection	Yes
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Box
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	HTTP, FTP, TCP/IP, SMTP, DHCP, PPPoE, DDNS, UPnP, RTP / RTSP/ RTCP, QoS, CoS, IGMP
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.65 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1329 mm
Pallet height (sea)	1926 mm
Pallet gross weight (air)	255856 g
Pallet gross weight (sea)	372784 g
Quantity per pallet (air)	420 pc(s)
Quantity per pallet (sea)	630 pc(s)
Shipping (inner) case width	324 mm
Shipping (inner) case height	199 mm
Shipping (inner) case length	538 mm
Shipping (inner) case weight	5568 g
Shipping (inner) case net weight	4818 g
Number of cartons per pallet (air)	42 pc(s)
Number of cartons per pallet (sea)	63 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	58 mm
Width	89 mm
Height	127 mm
Weight	116 g
Package depth	160 mm
Package width	152 mm
Package height	102 mm
Package weight	481.8 g
