Step 3. Configure Video/Audio or Image Profile Settings

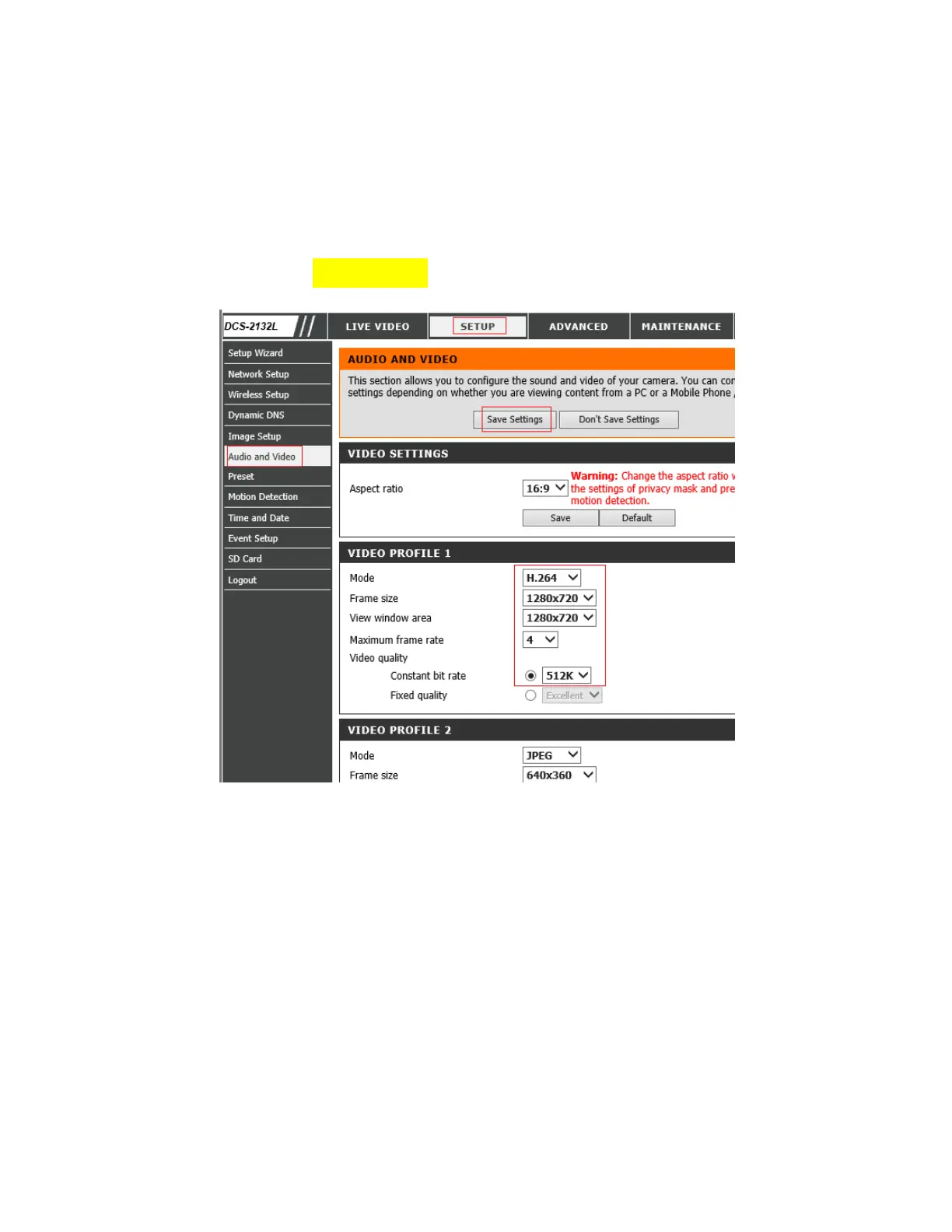

Click Setup Audio and Video as shown below. You can configure the video and image
resolution; in the case of video, you can also configure the video frame rate and bit rate. You
only need to configure the Video Profile 1.
If you ordered an image plan, then all it matters is the frame size. This model camera cannot
specify upload frequency for image-based recording. It will always use 1 image/s, so make sure
this is what you ordered on CameraFTP.
If you ordered a video plan, please configure it as follows:
Mode: H.264;
Frame size: Based on your CameraFTP subscription level;
View Window Area: Same as Frame Size;
Max frame rate: Based on your subscription level. Set to 4 if subscription fps is 5.
Video quality: Set to constant bit rate. The number should be calculated as follows:
