D-Link DCS-5222LB1 User Manual

41D-Link DCS-5222LB1 User Manual
Section 4 - Conguration
Note: Video Prole 3 is always set to MJPEG as the Encode Type to ensure that at least one of the Video Proles are viewable by non-IE browsers.
Video Prole 4 is for mobile devices only, and always uses H.264 as the Encode Type.
Note: Higher frame size, frame rate and bit rates will give you better video quality, but they will also require more network bandwidth. For best
viewing results on a mobile phone, we suggest setting the frame rate to 5 fps and the bit rate to 20 Kbps. Similarly, select appropriate audio encoding
for your bandwidth requirements.
After making any changes, click the Save Settings button to save your changes, or click the Don’t Save Settings button to discard your changes.

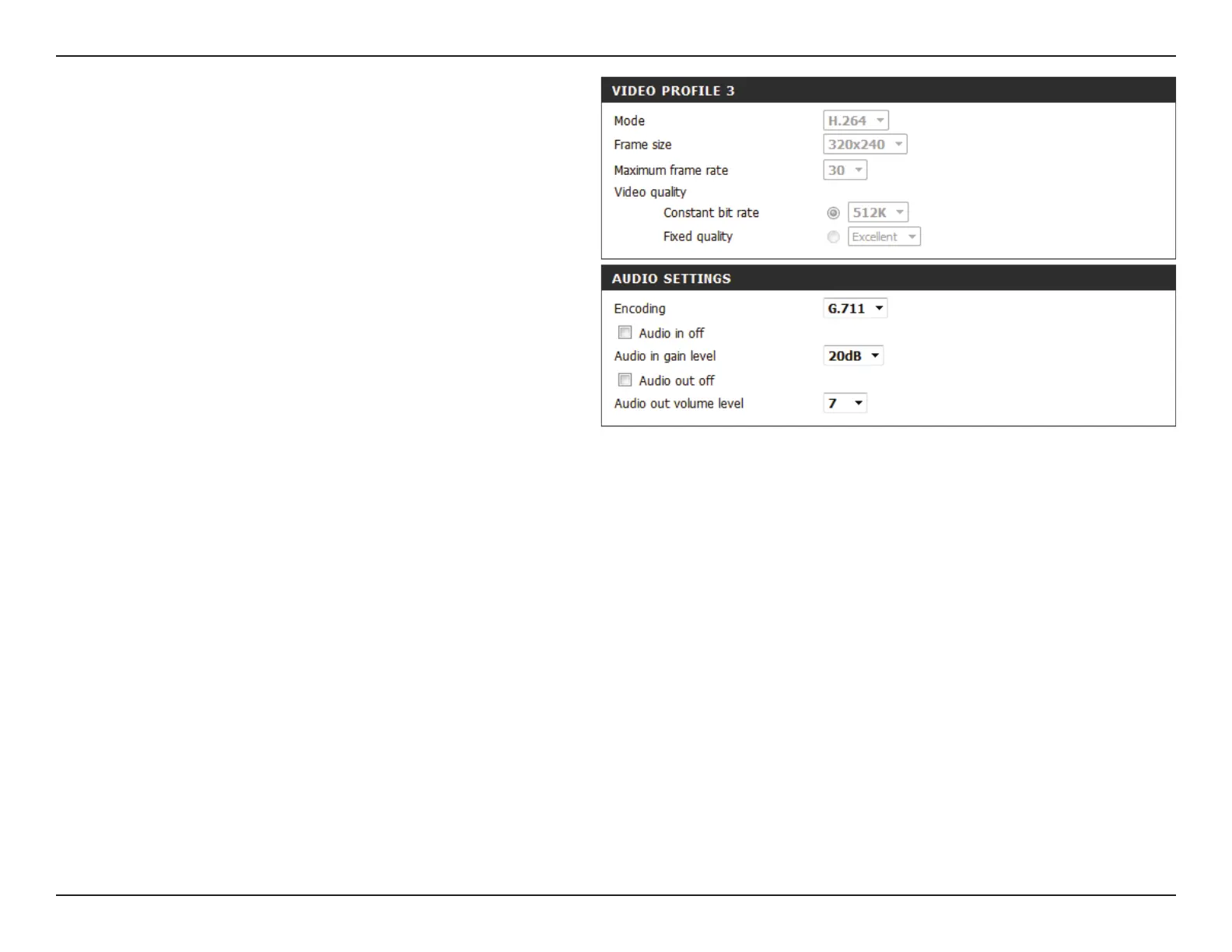

Video Quality:
Constant bit
rate:
Fixed quality:
Encoding:
Audio in o:
Audio in gain
level:
Audio out o:
Audio out
volume level:
This limits the maximum frame rate, which can
be combined with the “Fixed quality” option to
optimize the bandwidth utilization and video
quality. If xed bandwidth utilization is desired
regardless of the video quality, choose “Constant
bit rate” and select the desired bandwidth.
The bps will aect the bit rate of the video
recorded by the camera. Higher bit rates result in
higher video quality.
Select the image quality level for the camera to
try to maintain. High quality levels will result in
increased bit rates.
Choose between G.711, G.726 or AAC.
Selecting this checkbox will mute incoming
audio.
This setting controls the amount of gain applied
to incoming audio to increase its volume.
Selecting this checkbox will mute outgoing audio.
This setting controls the amount of gain applied
to outgoing audio to increase its volume.
