Connections
Located on the bottom panel of the DCS-6620, the socket is used to connect the
camera stand to the PTZ Internet Camera by attaching the screw head on the
camera stand to the PTZ Internet Camera.

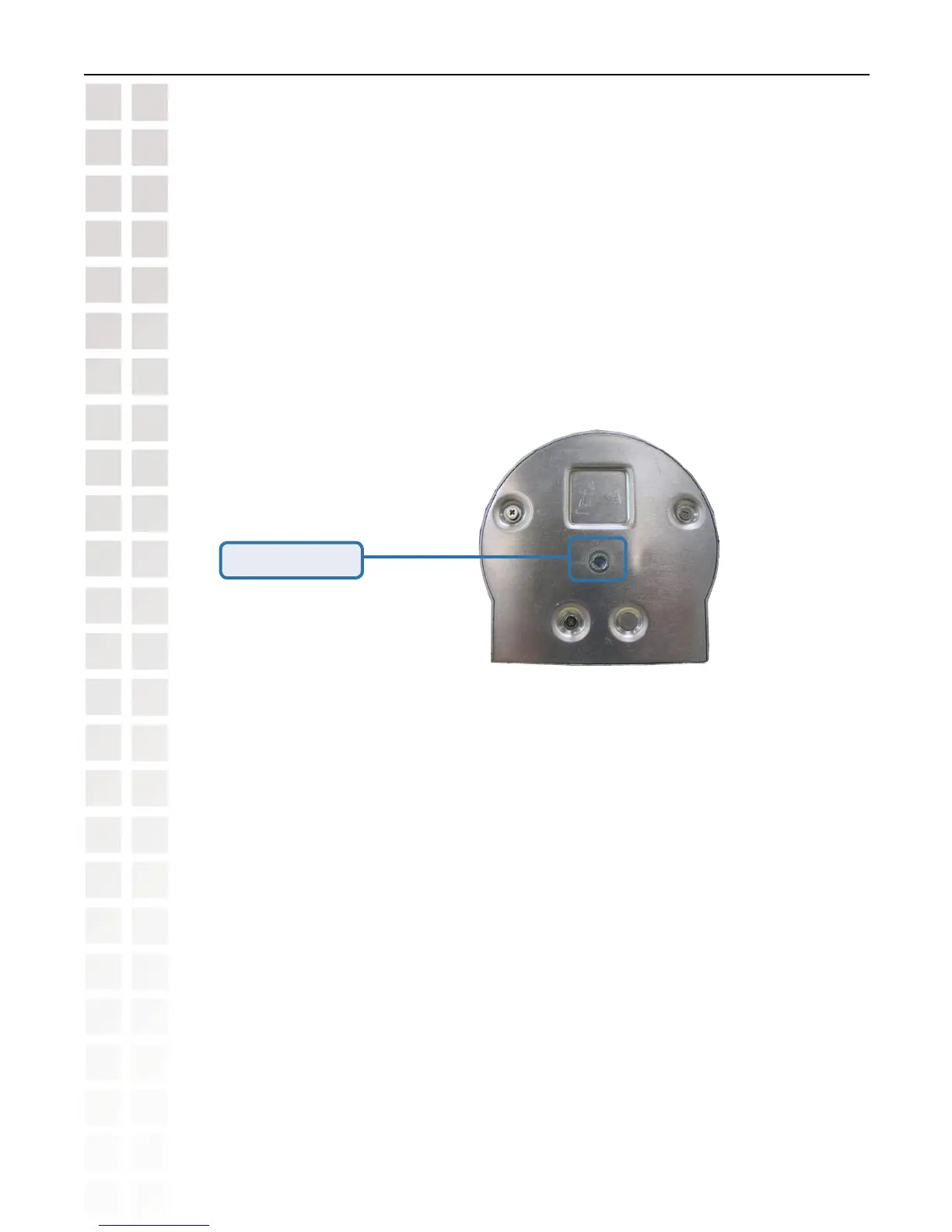

Bottom Panel
Attachment socket for the Camera Stand
The DCS-6620 provides a terminal block with two pairs of connectors situated on the back panel.
One pair is for input and the other is for output. The External I/O Port provides the physical
interface to send, and receive, digital signals to a variety of external alarm devices. Please
refer to the appendix in this manual for detailed information (page 131).
External I/O Port
Socket for stand
