7D-Link DCS-8000LH User Manual
Section 1 - Product Overview

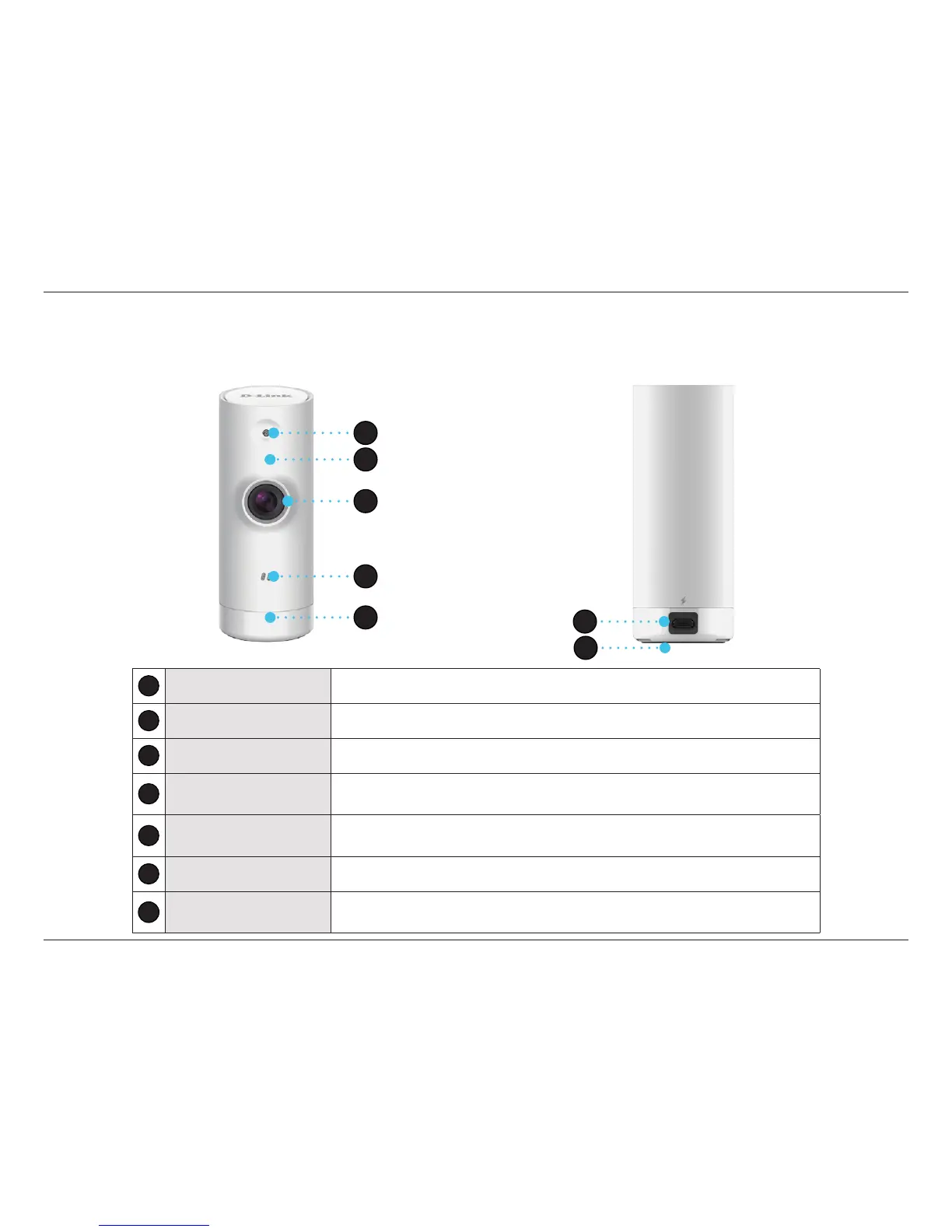

Hardware Overview
1
Infrared LEDs Illuminate the camera’s eld of view in low light environments.
2
Microphone Records audio from the surrounding area.
3
720p Camera Lens Records video of the surrounding area.
4
Light Sensor
The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly.
5
Status LED
Red: The camera is not connected to the network. Flashing Orange: The camera
is waiting for a connection. Green: The camera is connected and working properly.
6
Micro-USB Port Connect a power adapter or a 5 V Micro-USB power supply to power on the camera.
7
Reset Button
Hold this button down with an unfolded paperclip until the status LED starts
ashing to reset the camera to factory default settings.
Front View Back View
1
2
3
4
5
6
7
