DES-3226S Layer 2 Fast Ethernet Switch User’s Guide
109
MAC Address Table
This allows the Switch’s dynamic MAC address forwarding table to be viewed. When the Switch learns an association
between a MAC address and a port number, it makes an entry into its forwarding table. These entries are then used to forward
packets through the Switch.
To view the MAC address forwarding table, from the Address Tables folder, click the MAC Address Table link:

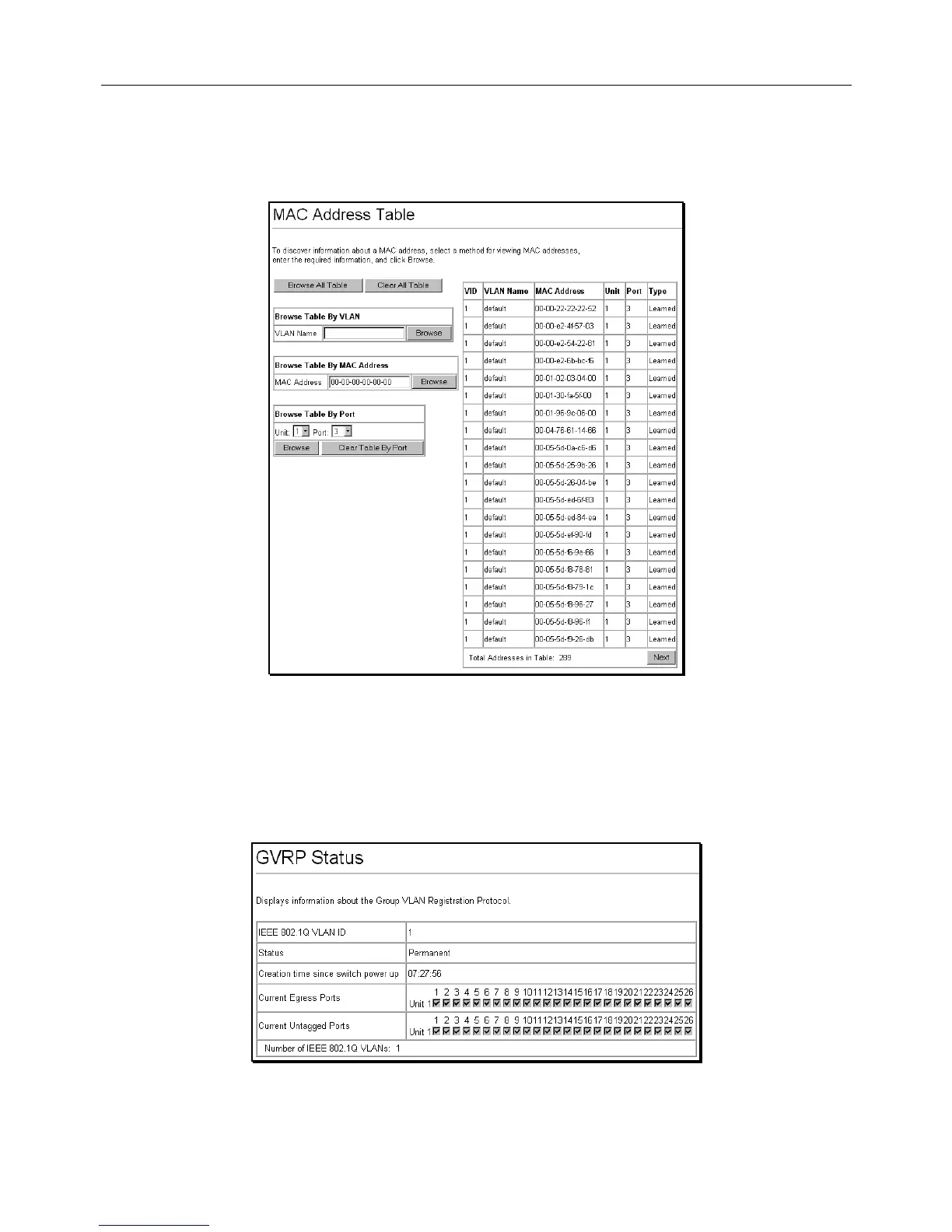

Figure 6 - 96. Browse Address Table – sequential window
GVRP Status
This allows the GVRP status for each of the Switch’s ports to be viewed by VLAN. The GVRP status screen displays the ports
on the Switch that are currently Egress or Untagged ports.
To view the GVRP status table, click on the GVRP Status link:
Figure 6 - 97. GVRP Status
