DES-132T 2-port 1000BASE-T Module

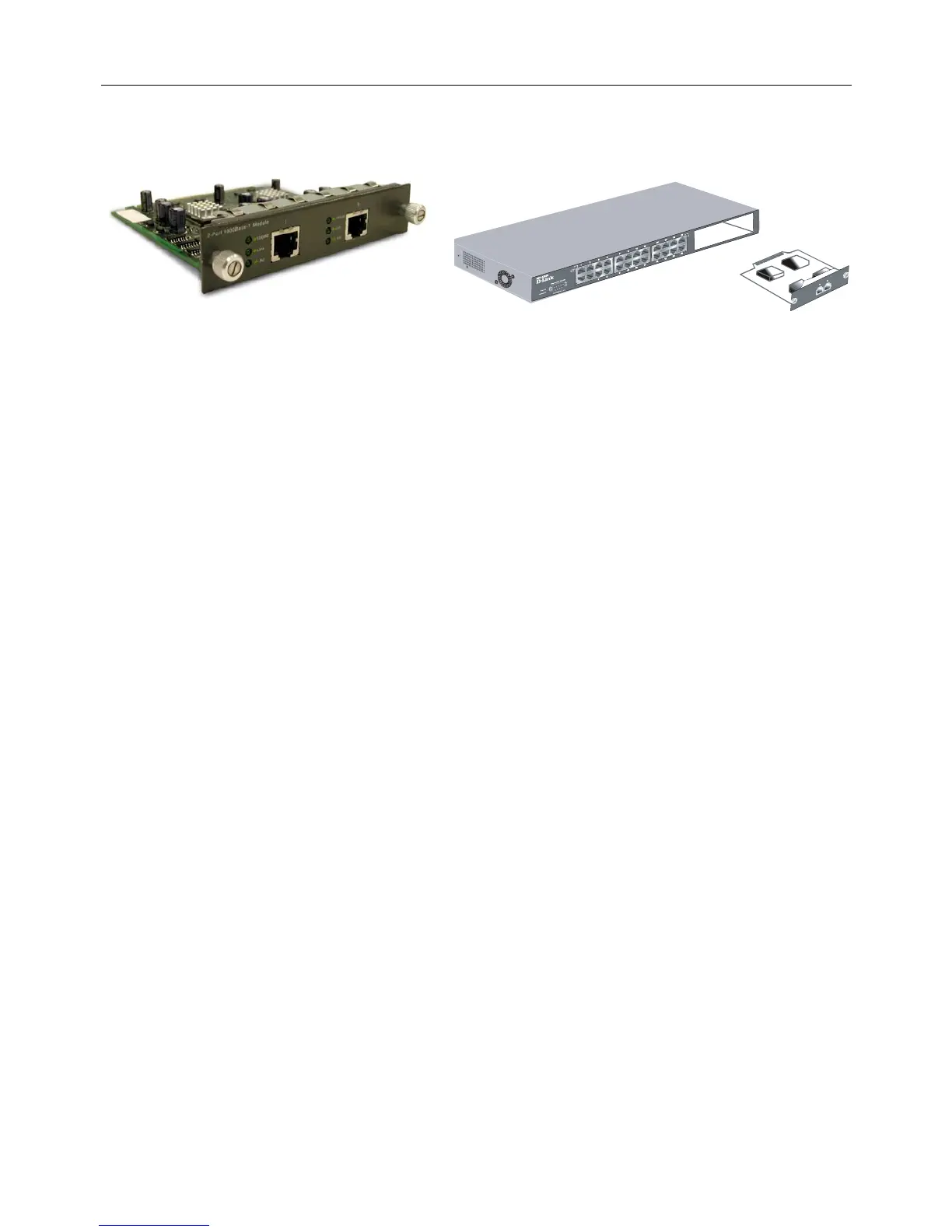

Figure 3 - 7. 1000BASE-T two-port module
Port Functions
• 2 1000BASE-T Gigabit Ethernet ports
• Fully compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, and IEEE802.3ab 1000BASE-T
• Supports auto-negotiation in the following operation: 10/100/1000M / Full-duplex / Flow control
• IEEE 802.3x compliant Flow Control support for full-duplex
LED Indicators
Speed
(1000M)
Off – 10/100M
Solid Green – 1000M
Link
Off – No Link
Solid Green – Link
Active
Off – No Activity
Blinking Green – Activity
