DES-3226S Layer 2 Fast Ethernet Switch User’s Guide
90

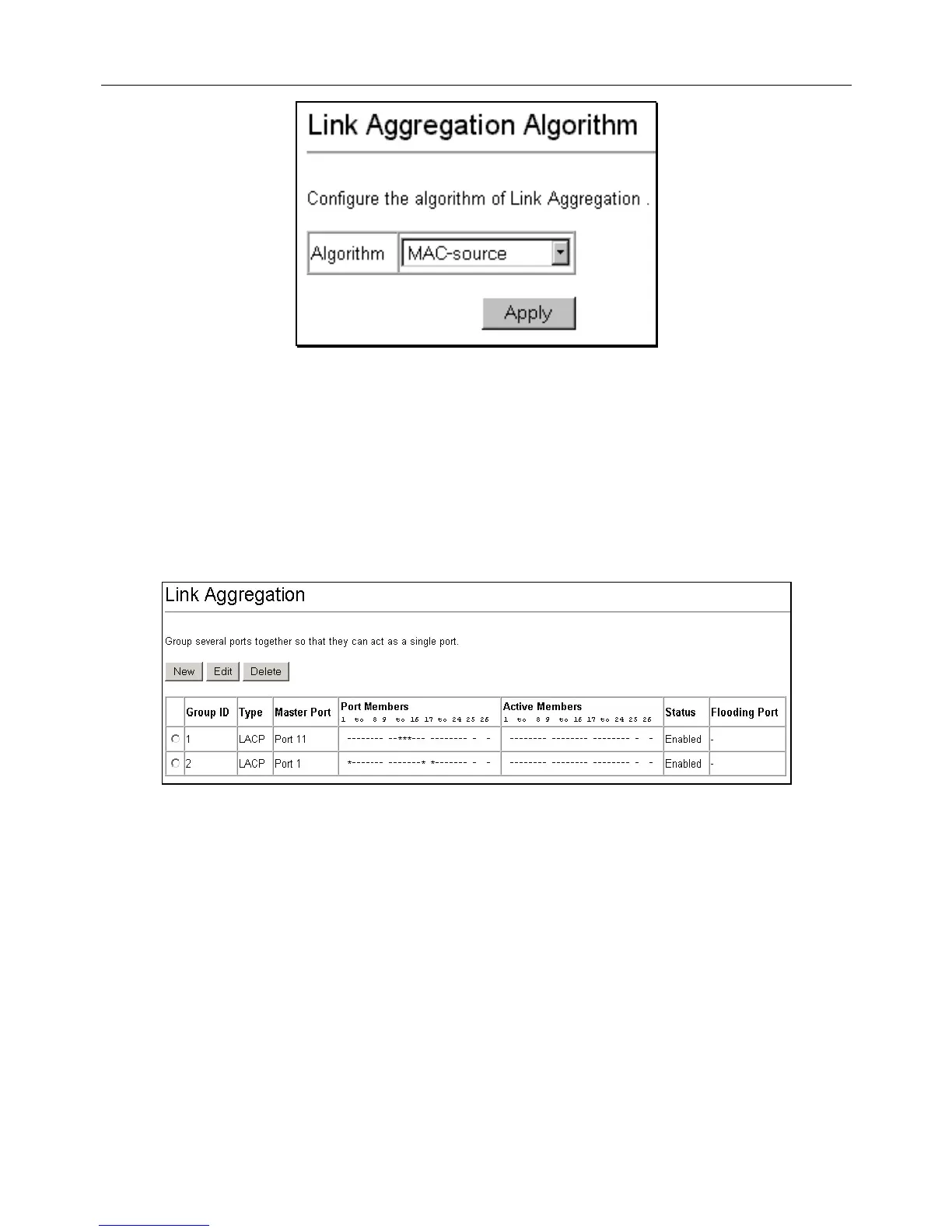

Figure 6 - 68. Link Aggregation Algorithm − Selection
Mac_source − Indicates that the Switch should examine the MAC source address.
Mac_destination − Indicates that the Switch should examine the MAC destination address.
Mac_source_dest − Indicates that the Switch should examine the MAC source and destination addresses.
IP_source − Indicates that the Switch should examine the IP source address.
IP_destination − Indicates that the Switch should examine the IP destination address.
IP_source_dest − Indicates that the Switch should examine the IP source and destination addresses.
To configure a link aggregation group, click on the Link Aggregation link from the Advanced Setup folder:
Figure 6 - 69. Link Aggregation
To add a new multicast MAC address to the Switch’s forwarding table, click the New button:
