DES-3550 Fast Ethernet Layer 2 Switch

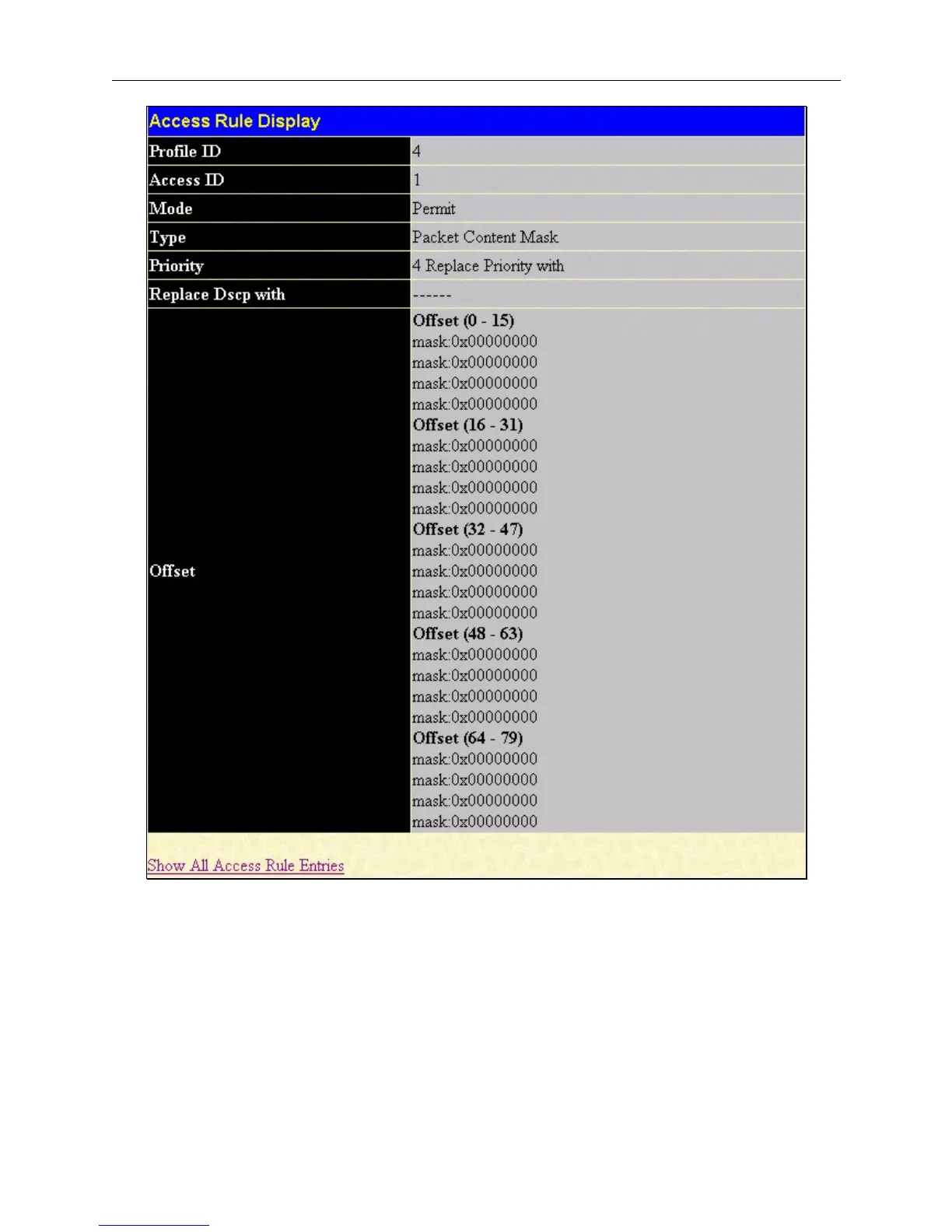

Figure 6- 64. Access Rule Display window (Ethernet)
PAE Access Entity (802.1X)
802.1x Port-Based and MAC-Based Access Control
The IEEE 802.1x standard is a security measure for authorizing and authenticating users to gain access to various wired or
wireless devices on a specified Local Area Network by using a Client and Server based access control model. This is
accomplished by using a RADIUS server to authenticate users trying to access a network by relaying Extensible
Authentication Protocol over LAN (EAPOL) packets between the Client and the Server. The following figure represents a
basic EAPOL packet:
96
