DES-3550 Fast Ethernet Layer 2 Switch

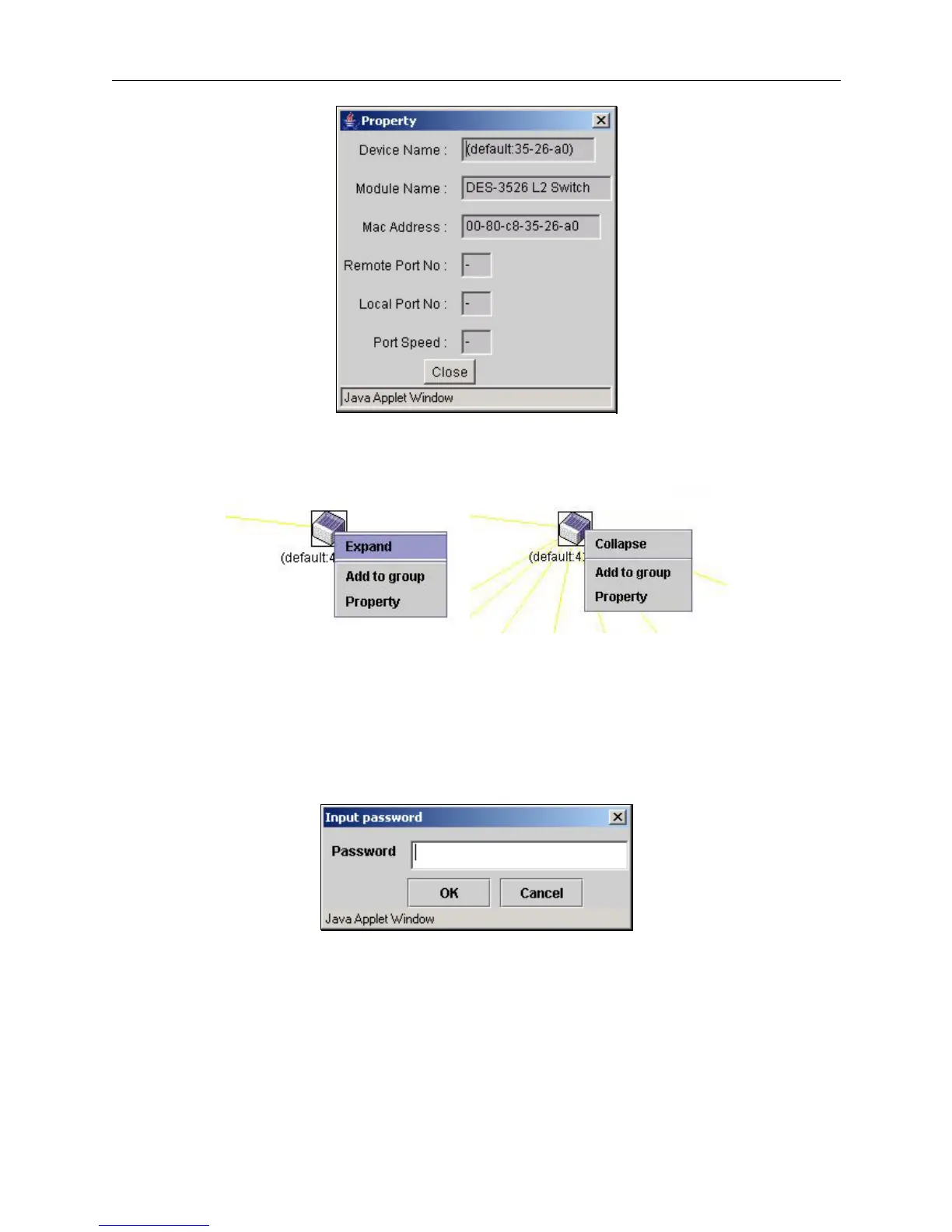

Figure 10- 13. Property window
Candidate Switch Icon
Figure 10- 14. Right Clicking a Candidate icon
The following options may appear for the user to configure:
Collapse - to collapse the group that will be represented by a single icon. •
•
•
Expand - to expand the SIM group, in detail.
Add to group - add a candidate to a group. Clicking this option will reveal the following screen for the user to
enter a password for authentication from the Candidate Switch before being added to the SIM group. Click OK
to enter the password or Cancel to exit the window.
Figure 10- 15. Input password window.
Property - to pop up a window to display the device information, as shown below. •
183
