DES-3550 Fast Ethernet Layer 2 Switch

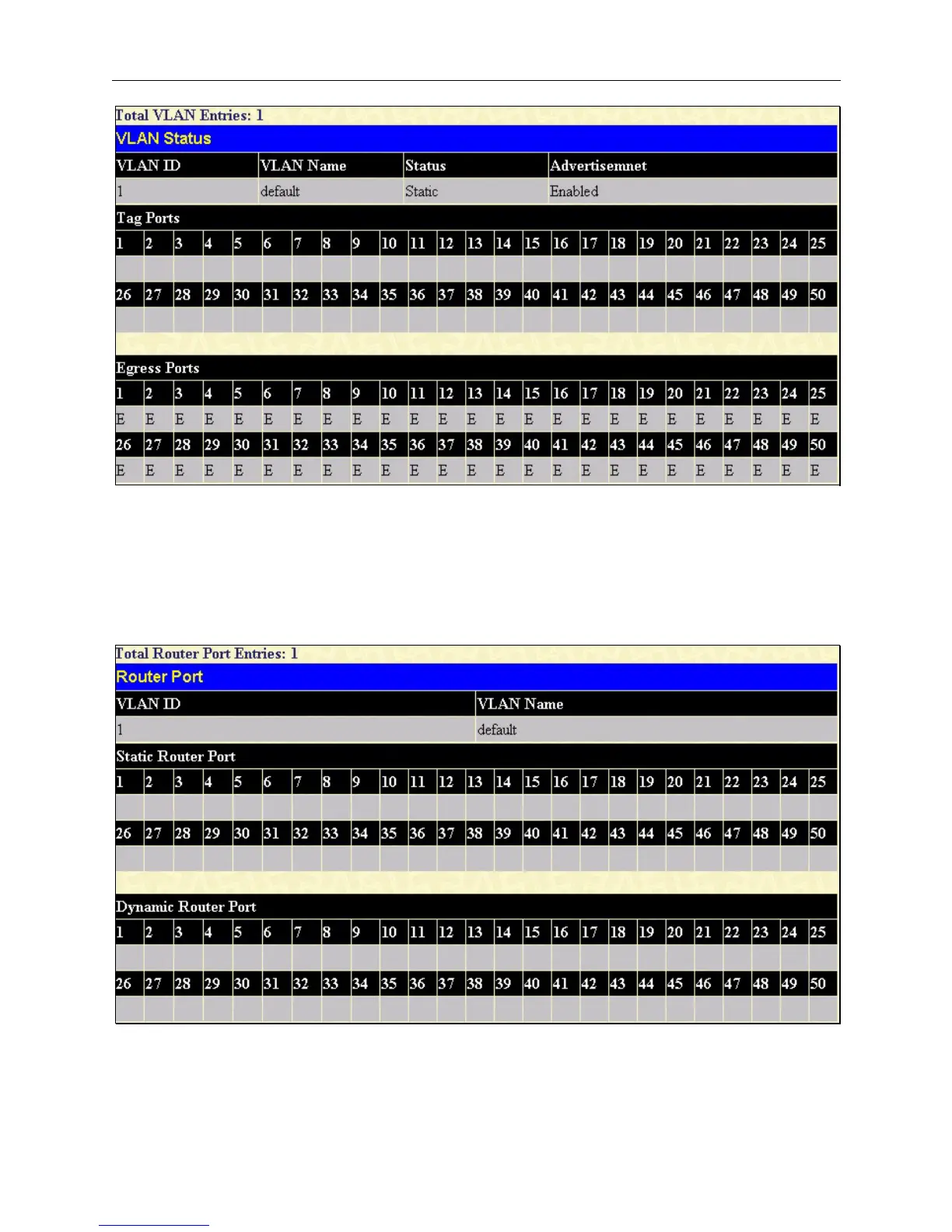

Figure 8- 19. VLAN Status window
Router Port
This displays which of the Switch's ports are currently configured as router ports. A router port configured by a user (using
the console or Web-based management interfaces) is displayed as a static router port, designated by S. A router port that is
dynamically configured by the Switch is designated by D. To view the following window, open the Monitoring folder and
click the Router Port link.
Figure 8- 20. Router Port window
162
